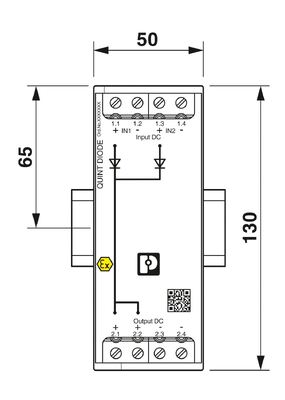

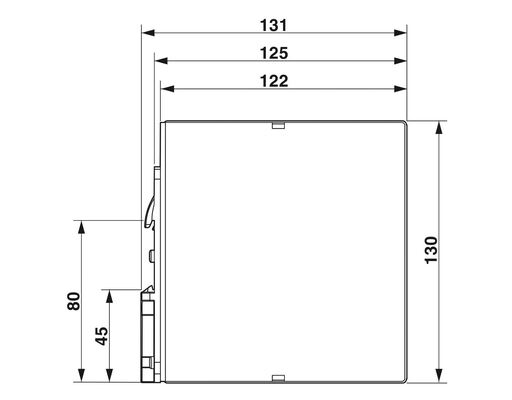

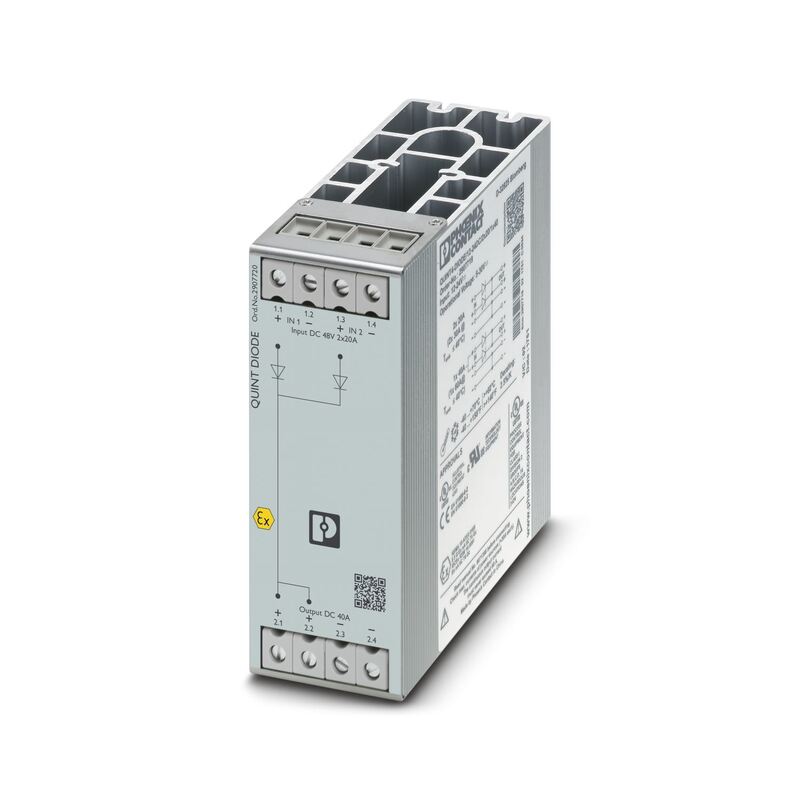

QUINT4-DIODE/48DC/2X20/1X40 Phoenix Contact Redundancy Module 2907720

Large Image : QUINT4-DIODE/48DC/2X20/1X40 Phoenix Contact Redundancy Module 2907720

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT4-DIODE/48DC/2X20/1X40

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT4-DIODE/48DC/2X20/1X40 Phoenix Contact Redundancy Module 2907720

Description

Condition:

Original Brand New

Warranty:

One Year

Application:

Automation Industry

Shipping Way:

DHL FedEx

Highlight:

Phoenix Contact redundancy module 48DC

QUINT4-DIODE redundancy module 2X20

Phoenix Contact power supply 1X40

DIN rail diode module 48 V DC/2x20 A or 1x40 A. Uniform redundancy up to the consumer.

A safe redundant system is the result of the parallel connection of two power supply units which are decoupled from one another. To further increase system availability, QUINT DIODE provides the solution: decoupling with diode.

DC operation
Nominal input voltage range	48 V DC
Input voltage range	30 V DC ... 56 V DC
Voltage type of supply voltage	DC
Reverse polarity protection	yes, < 120 V
Nominal input current (I_N)	2x 20 A (-40 °C ... 60 °C)
Nominal input current (I_N)	1x 40 A (-40 °C ... 60 °C)
Maximum current I_max	2x 30 A (-40 °C ... 40 °C)
Maximum current I_max	1x 60 A (-40 °C ... 40 °C)
Input current I_Static	2x 25 A (40 °C)
Input current I_Dynamic	2x 30 A (5 s)
Input current I_SFB	2x 120 A (15 ms)
Nominal input current (I_N)	2x 20 A (-25 °C ... 60 °C)
Nominal input current (I_N)	1x 40 A (-25 °C ... 60 °C)
Maximum current I_max	2x 30 A (-25 °C ... 40 °C)
Maximum current I_max	1x 60 A (-25 °C ... 40 °C)
Transient surge protection	Varistor
Voltage drop, input/output	0.7 V
