QUINT4-S-ORING/12-24DC/1X40 Phoenix Contact UPS Redundancy module 2907752

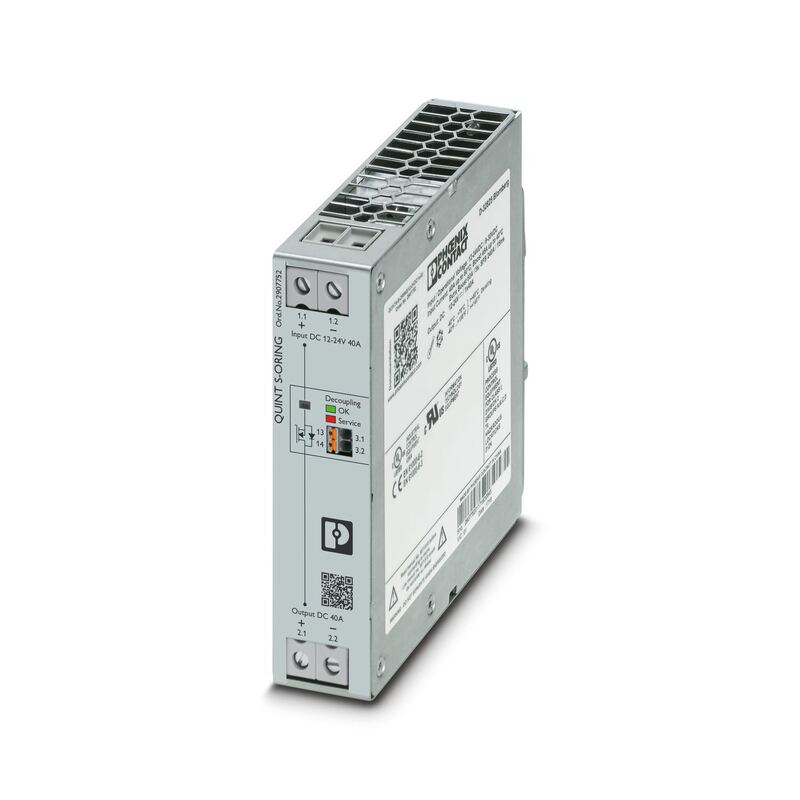

Large Image : QUINT4-S-ORING/12-24DC/1X40 Phoenix Contact UPS Redundancy module 2907752

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT4-S-ORING/12-24DC/1X40

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT4-S-ORING/12-24DC/1X40 Phoenix Contact UPS Redundancy module 2907752

Description

Condition:

Original Brand New

Warranty:

One Year

Applictaion:

Automation Industry

Shipping Way:

DHL FedEx

Highlight:

Phoenix Contact UPS redundancy module

QUINT4-S-ORING DC redundancy module

12-24DC UPS module with warranty

Active QUINT single redundancy module for DIN rail mounting, input: 12 V DC ... 24 V DC, output: 12 V DC ... 24 V DC / 1 x 40 A, incl. mounted UTA 107/30 universal DIN rail adapter

Active redundancy module for superior system availability and maximum operational reliability. QUINT S-ORING enables the separate structuring of a redundant system. In combination with the new QUINT POWER power supply, the redundant system is monitored continuously.

DC operation
Nominal input voltage range	12 V DC ... 24 V DC
Input voltage range	8 V DC ... 30 V DC (SELV)
Typical national grid voltage	12 V DC
Typical national grid voltage	24 V DC
Voltage type of supply voltage	DC
Current consumption	40 A
Static Boost (I_Stat.Boost)	45 A
Dynamic Boost (I_Dyn.Boost)	60 A (5 s)
Selective Fuse Breaking (I_SFB)	215 A (15 ms)
Reverse polarity protection	yes, < 60 V
Nominal input current (I_N)	40 A (-40 °C ... 60 °C)
Input current I_Static	45 A (40 °C)
Input current I_Dynamic	60 A (5 s)
Input current I_SFB	215 A (15 ms)
Transient surge protection	Varistor
Voltage drop, input/output	0.1 V DC
