PLT-SEC-T3-24-FM-PT Phoenix Contact Type 3 surge protection device 2907925

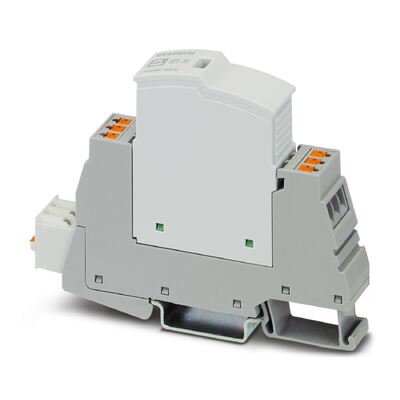

Large Image : PLT-SEC-T3-24-FM-PT Phoenix Contact Type 3 surge protection device 2907925

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	PLT-SEC-T3-24-FM-PT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

PLT-SEC-T3-24-FM-PT Phoenix Contact Type 3 surge protection device 2907925

Description

Condition:

Original Brand New

Warranty:

One Year

Application:

Automation Industry

Shipping Way:

DHL FedEx

Highlight:

Phoenix Contact Type 3 surge protector

Type 3 surge protection device

PLT-SEC-T3 surge protector

Type 3 surge protection, consisting of protective plug and base element, with integrated status indicator and remote signaling for single-phase power supply networks. Nominal voltage: 24 V AC/DC

Indicator/remote signaling
Connection name	Remote fault indicator contact
Switching function	Changeover contact
Operating voltage	250 V AC
Operating voltage	125 V DC (200 mA DC)
Operating current	0.5 A AC
Operating current	0.5 A DC (75 V DC)

Connection method	Push-in connection
Conductor cross-section flexible	0.2 mm² ... 2.5 mm²
Conductor cross-section rigid	0.2 mm² ... 4 mm²
Conductor cross-section AWG	24 ... 12

Dimensional drawing
Width	17.7 mm
Height	101 mm
Depth	74.5 mm (incl. DIN rail 7.5 mm)
Horizontal pitch	1 Div.
