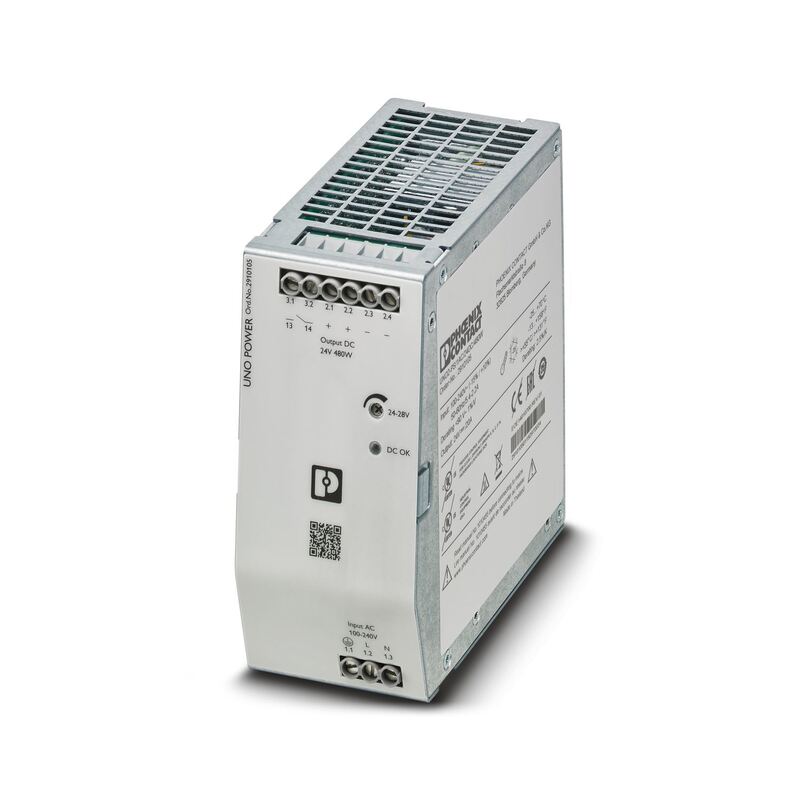

UNO2-PS/1AC/24DC/480W Phoenix Contact Power Supply 2910105

Large Image : UNO2-PS/1AC/24DC/480W Phoenix Contact Power Supply 2910105

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	UNO2-PS/1AC/24DC/480W

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

UNO2-PS/1AC/24DC/480W Phoenix Contact Power Supply 2910105

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Highlight:

Phoenix Contact 480W power supply

UNO2-PS power supply 24DC

Phoenix Contact AC/DC power supply

Primary-switched power supply unit UNO POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 20 A, adjustable from 24 V DC ... 28 V DC

UNO POWER power supplies with basic functionality.
Thanks to their high power density, compact UNO POWER power supplies offer the ideal solution for loads up to 960 W, particularly in compact control boxes. The power supply units are available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency.

AC operation
Supply system configuration	Star network (TN, TT, IT (PE))
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	100 V AC ... 240 V AC -15 % ... +10 %
Derating	< 90 V AC (1 %/V)
Typical national grid voltage	120 V AC
Typical national grid voltage	230 V AC
Voltage type of supply voltage	AC
Inrush current	typ. 15 A (at 25 °C)
Inrush current integral (I²t)	< 1 A²s
Frequency range (f_N)	50 Hz ... 60 Hz ±10 %
Mains buffering time	typ. 17 ms (120 V AC)
Mains buffering time	typ. 18 ms (230 V AC)
Current consumption	5.4 A (100 V AC)
	4.4 A (120 V AC)
	2.3 A (230 V AC)
	2.2 A (240 V AC)
Nominal power consumption	533 VA
Protective circuit	Transient surge protection; Varistor, gas-filled surge arrester
Switch-on time	typ. 1 s
Device mains fuse	8 A internal (device protection), fast-blow
Recommended breaker for input protection	10 A ... 16 A (Characteristic B, C, D, K or comparable)
Discharge current to PE	< 3.5 mA
