MACX MCR-EX-SL-RPSSI-I-SP Phoenix Contact Repeater Power Supply 2924016

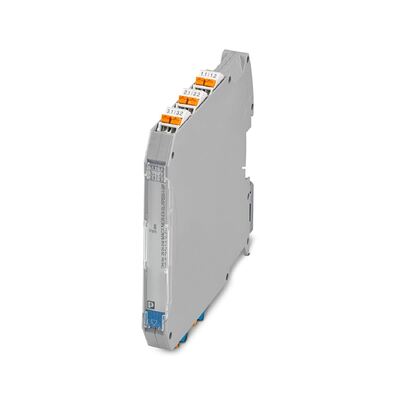

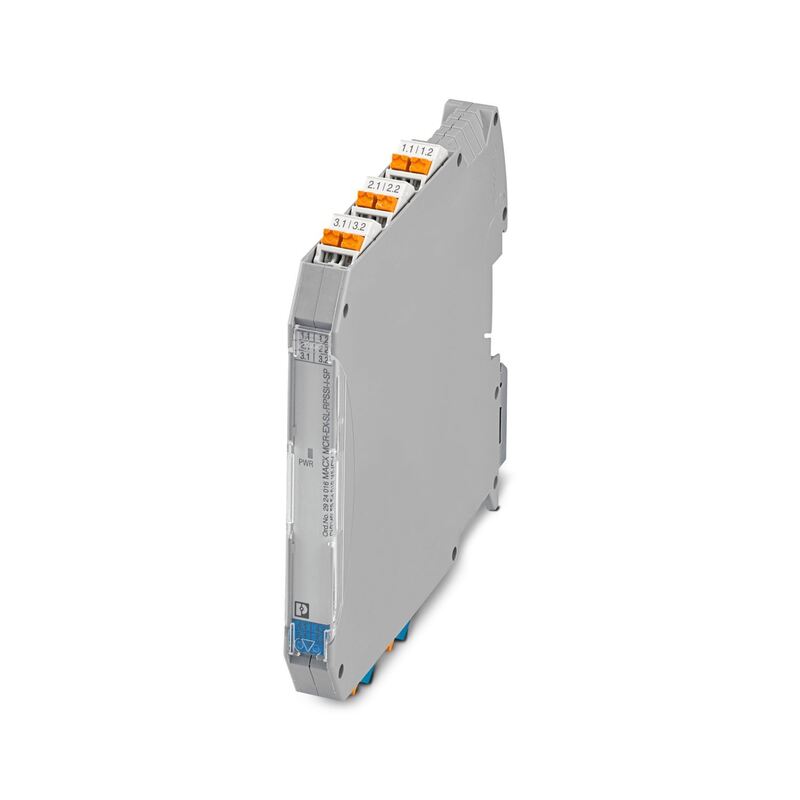

Large Image : MACX MCR-EX-SL-RPSSI-I-SP Phoenix Contact Repeater Power Supply 2924016

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	MACX MCR-EX-SL-RPSSI-I-SP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

MACX MCR-EX-SL-RPSSI-I-SP Phoenix Contact Repeater Power Supply 2924016

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact repeater power supply

MACX MCR power supply with warranty

Phoenix Contact industrial power supply

Ex i repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 … 20 mA signals from the Ex area to a load (active or passive) in the safe area. 3-way electrical isolation, SIL 2 in accordance with IEC 61508, with Push-in connection

Signal: Repeater power supply operation
Description of the input	Active current input, intrinsically safe
Number of inputs	1
Input signal	Current
Current input signal	4 mA ... 20 mA
Current limitation	25 mA
Transmitter supply voltage	> 16 V (20 mA)
Transmitter supply voltage	> 15.3 V (22.5 mA)
Polarization and surge protection	Yes
Underload/overload signal range	0 mA ... 24 mA (Extended transmission range for diagnostics)
Signal: Signal conditioner operation
Description of the input	Passive current input, intrinsically safe
Current input signal	0 mA ... 20 mA
Current input signal	4 mA ... 20 mA
Voltage drop	< 3.5 V (in input isolating amplifier operation)
Underload/overload signal range	0 mA ... 24 mA (Extended transmission range for diagnostics)

Signal: Repeater power supply operation
Output description	Current output (active and passive)
Number of outputs	1
Current output signal	4 mA ... 20 mA (active)
Current output signal	4 mA ... 20 mA (14 ... 26 V ext. source voltage)
Load/output load current output	< 1000 Ω (20 mA)
Load/output load current output	< 825 Ω (24 mA)
Output ripple	< 20 mV_rms
Output behavior in the event of an error	0 mA (Cable break in the input)
Output behavior in the event of an error	≥ 22.5 mA (Cable short-circuit in the input)
Underload/overload signal range	0 mA ... 24 mA (Extended transmission range for diagnostics)
Signal: Signal conditioner operation
Output description	Current output (active and passive)
Current output signal	0 mA ... 20 mA (active)
	4 mA ... 20 mA (active)
	0 mA ... 20 mA (14 ... 26 V ext. source voltage)
	4 mA ... 20 mA (14 ... 26 V ext. source voltage)
Load/output load current output	< 1000 Ω (20 mA)
Load/output load current output	< 825 Ω (24 mA)
Output ripple	< 20 mV_rms
Output behavior in the event of an error	0 mA (Cable break in the input)
Output behavior in the event of an error	0 mA (Cable short-circuit in the input)
Underload/overload signal range	0 mA ... 24 mA (Extended transmission range for diagnostics)
