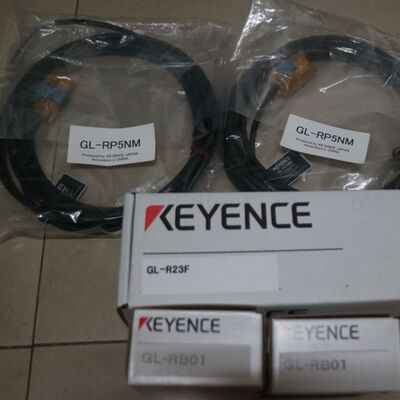

Keyence Safety Light Curtain GL-RP5NM + GL-R23F + GL-RB01

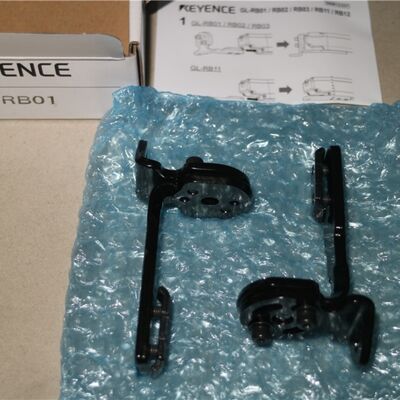

Model

GL-RB21

Type

Deadspace-free Bracket

Applicable product

GL-R Series

Number included

Assembled bracket: 2 units, Instruction manual: 1 manual

Material

Main bracket unit: Zinc die-cast, Hexagonal-socket bolt: Iron (trivalent black)

Weight

Approx. 470 g

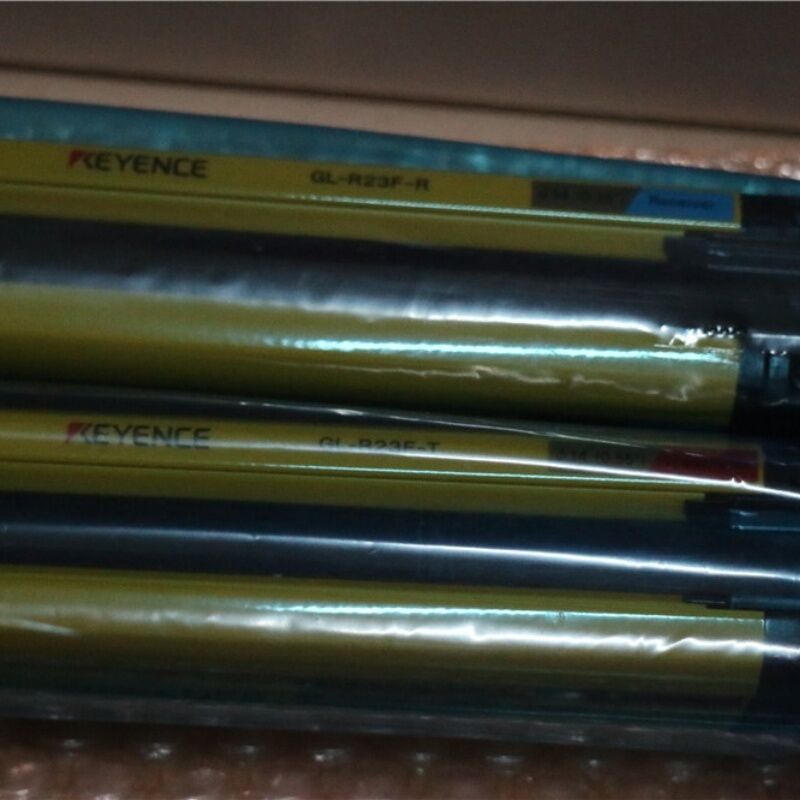

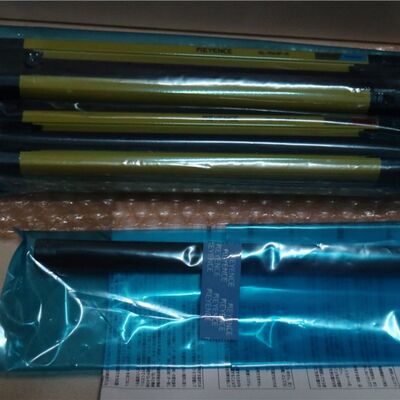

Model

GL-R23F

Detection capability

ø0.55" ø14 mm

Total length

9.45" 240mm

No. of beam

23

Detection height

8.66" 220mm

Protection height

9.61" 244mm

Beam axis spacing/Lens diameter

10 mm 0.39" / ø4 ø0.16"

Detecting distance

0.66 to 32.81' 0.2 to 10 m^*1

Effective aperture angle

Max. ±2.5° (When operating distance is 9.84' 3 m or more)

Light source

Infrared LED (870 nm)

Model

GL-RP5NM

Type

Unit connection cable

Number included

1 cable

Cable end

Main unit plug (Grey) - Loose wires

Length

5 m 16.40'

Material

Main unit connection connector: PBT, Cable: PVC

Note

Brown and blue: 22 AWG (nominal cross section: 0.34 mm²), other: 26 AWG (nominal cross section: 0.14 mm²)

Weight

Approx. 240 g
