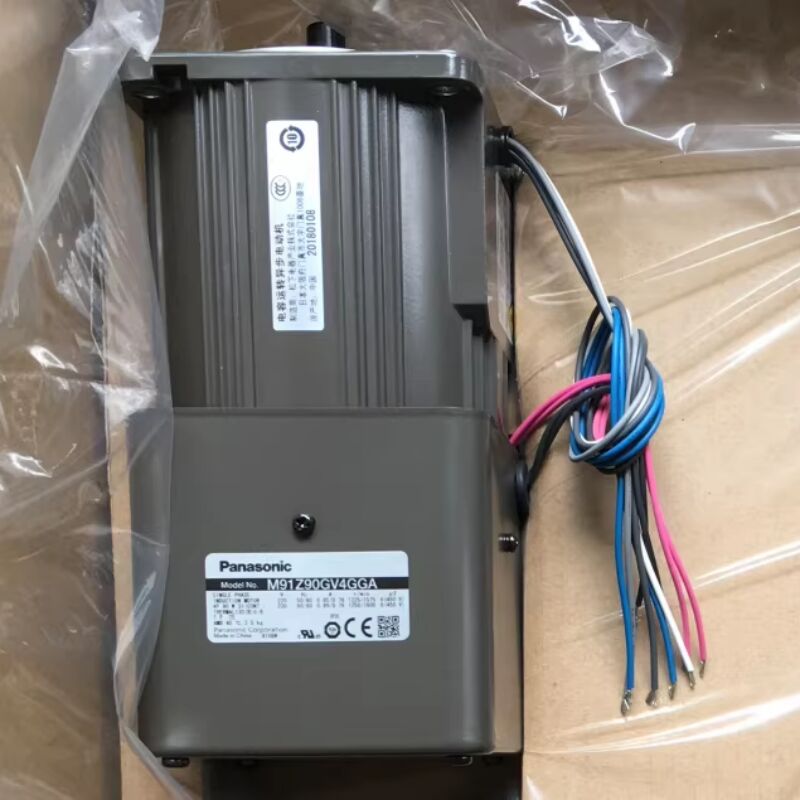

Panasonic M91Z90GV4GGA Shin-G Series Variable Speed Induction Motor
Panasonic M91Z90GV4GGA Shin-G Series Variable Speed Induction Motor | 90W, 230VAC, 1200 RPM
Product Overview
The Panasonic M91Z90GV4GGA is a 90W variable speed induction motor from the acclaimed Shin-G Series. Designed for use with a dedicated speed controller, this single-phase motor delivers flexible speed control over a wide range (90-1,400 RPM at 50Hz, 90-1,700 RPM at 60Hz) and is ideal for general-purpose industrial automation equipment.
Important Notice: This product has been discontinued by Panasonic as of June 30, 2023. Please verify stock availability with suppliers before ordering.
Key Technical Specifications
| Specification |
Details |
| Brand |
Panasonic |
| Series |
Shin-G Series (Variable Speed Induction Motor) |
| Model |
M91Z90GV4GGA |
| Motor Type |
Single-phase variable speed induction motor |
| Power Rating |
90 W |
| Voltage / Frequency |
220V / 230V AC, 50/60 Hz |
| Rated Speed |
1,200 RPM |
| Speed Control Range |
90-1,400 RPM (50Hz) / 90-1,700 RPM (60Hz) |
| Rated Torque |
540 mN*m (76.47 oz-in) |
| Frame Size |
90 mm × 90 mm (3.54" × 3.54") square |
| Shaft Length |
20.50 mm (0.807") |
| Mounting Hole Spacing |
104.00 mm (4.094") |
| Termination |
Lead wires (No connector) |
| Protection Rating |
IP20 |
| Operating Temperature |
-10°C to +40°C |
| Certifications |
UL/CSA, CE, CCC |
| Product Status |
Discontinued (as of June 30, 2023) |
Key Features & Performance Benefits
Wide Variable Speed Range
When combined with a dedicated speed controller (e.g., Panasonic MGSD series), the M91Z90GV4GGA offers infinitely variable speed control from 90 to 1,400 RPM (50Hz) and 90 to 1,700 RPM (60Hz).
Built-in Tachometer Feedback
The motor incorporates an internal tachometer sensor for closed-loop feedback control. This ensures stable speed regulation—even when the power supply frequency fluctuates, the motor maintains consistent rotational speed.
Multiple Operating Modes
Supports various operation types including speed control (variable), braking, forward/reverse operation, and soft start and soft stop.
Compact 90mm Frame
The 90mm square frame size provides a balance of power density and installation flexibility, making it suitable for equipment with space constraints.
International Safety Certifications
Certified to meet global standards: UL/CSA (North America), CE (Europe), and CCC (China).
Pinion Shaft Configuration
Features a pinion shaft design with lead wire termination—ideal for direct integration with gearboxes or specific mechanical transmissions.
Product Status & Discontinuation Notice
Effective Date of Discontinuation: June 30, 2023
The Panasonic Shin-G Series variable speed induction motors (including MGSD-type speed controllers) have been officially discontinued. Please note:
- The M91Z90GV4GGA cannot be used with US series or EX series controllers
- No suggested alternative products are listed by Panasonic
- For replacement recommendations, please contact your supplier
Compatible Speed Controllers
The M91Z90GV4GGA requires an external speed controller for operation. Compatible controllers include:
| Controller Type |
Model Examples |
| MGSD Series |
MGSDA1, MGSDB1, MGSDB2 |
| DV Series |
DV1131, DV1132, DV1134, DV1231, DV1234 |
| DVUS Series |
DVUS606W1, DVUS715W1, DVUS825W1, DVUS940W1, DVUS960W1, DVUS990W1 |
| DVUX Series (Digital Display) |
DVUX606W, DVUX715W, DVUX825W, DVUX940W, DVUX960W, DVUX990W |
Note: MGSD-type speed controllers have been discontinued. Please confirm availability before ordering.
Compatible Gearheads
The M91Z90GV4GGA can be paired with Panasonic gearheads for torque multiplication and speed reduction:
| Gearhead Type |
Model Series |
Reduction Ratios |
| Standard Gearhead |
M9G series (M9GA, M9GC, M9GD, M9GS) |
3:1 to 200:1 |
| Intermediate Gearhead |
M9GA10XM, M9GC10XB, M9GC10XM |
10:1 (varies) |
Applications
The Panasonic M91Z90GV4GGA is suitable for a variety of industrial automation applications:
- Packaging Machinery - Bag making machines, packaging lines
- Material Handling - Conveyor systems, transfer equipment
- Food Processing Machinery - Automated food manufacturing equipment
- Printing Machinery - Printing presses, drying equipment
- Textile Machinery - Web processing equipment
- General Automation - Indexing tables, positioning systems, chemical pumps
Environmental & Mechanical Specifications
Operating Conditions
| Parameter |
Specification |
| Ambient Temperature (Operation) |
-10°C to 40°C |
| Ambient Humidity |
20% to 80% (non-condensing) |
| Altitude |
Up to 1000m above sea level |
| Protection Rating |
IP20 (indoor use only, not washdown compatible) |
Important Safety Notes
- The motor shaft must be electrically grounded to prevent electrolytic corrosion of bearings
- Do not exceed rated voltage range—may cause internal damage, smoke, or fire
- Install appropriate safety equipment to prevent serious accidents in case of product failure
Alternative Models for Reference
For similar specifications in current production (verify availability), consider these Panasonic Shin-G series models:
| Motor Type |
Model Example |
| Induction (60W) |
M91Z60GV4GGA |
| Induction (40W) |
M91X40GV4GGA |
| Reversible (90W) |
M9RZ90GV4GGA |
| Combination Type (90W) |
M91Z90GD4W2 |
Frequently Asked Questions (FAQs)
Q: Is the Panasonic M91Z90GV4GGA still in production?
A: No. Panasonic officially discontinued the Shin-G Series variable speed induction motors effective June 30, 2023.
Q: What speed controller works with this motor?
A: The motor requires a dedicated speed controller such as MGSD series, DV series, DVUS series, or DVUX series controllers.
Q: Does this motor include a gearhead?
A: No. The M91Z90GV4GGA is a pinion shaft motor. Gearheads (M9G series) must be ordered separately.
Q: What is the IP rating of this motor?
A: IP20. This motor is not suitable for washdown environments or outdoor use.
Q: Does it come with a capacitor?
A: This model is not equipped with a capacitor cap.
Warranty Information
Panasonic's standard warranty for industrial motors is 1 year from date of purchase or 18 months from month of manufacture, whichever occurs first.
The warranty does not cover damage resulting from:
- Misuse, improper repair, or alteration
- Unregulated voltage, fire, or natural disasters
- Invasion of foreign materials (water, oil, metal particles)
