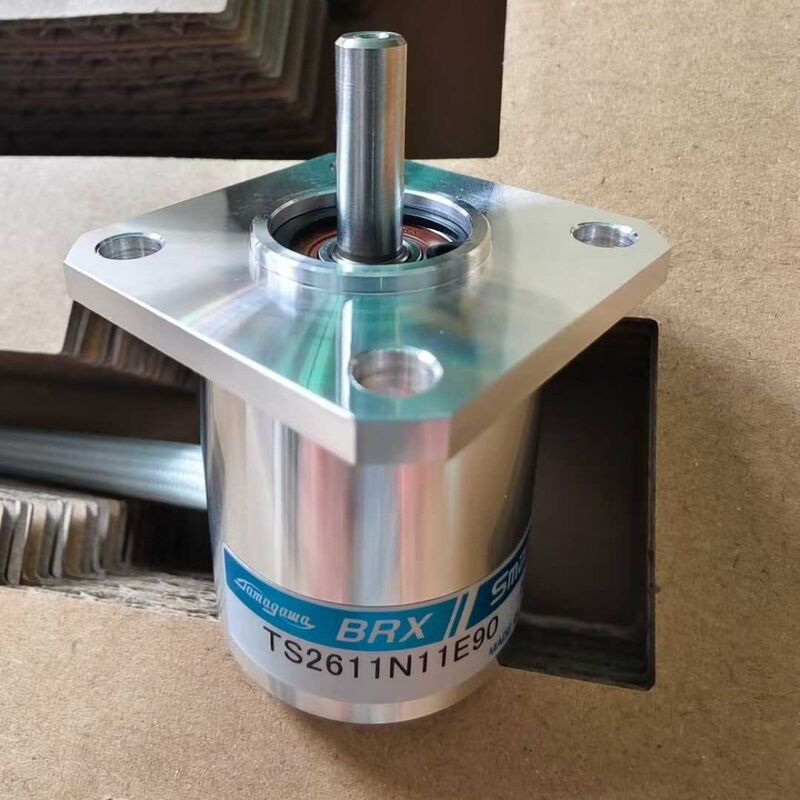

Tamagawa Brushless resolvers Smartsyn TS2611N11E90

Brushless resolvers (Smartsyn)

Rotation angle sensor with excellent environmental resistance performance Brushless resolver.Wide temperature range ／ Vibration & Shock Resistance ／ High reliability

Features

Wide temperature range

Temperature Range -55 to +155℃ (※)

High temperature resistance: Can be used in high temperature environment such as welding robots and injection molding machines.

Low temperature resistance: Available in aircrafts and space environments.※ Built-in type only

Superior environment resistance

Vibration: 196 m/s²{20 G} at 10 Hz. 500 Hz, for 2 hours to each of three axes.

Shock: 981 m/s²{100 G} for 6 ms, 3 times to each of 6 axes, 18 times in total.

High reliability

Does not use electrical parts, optical parts. Maintenance-free for its brush-less feature.

Long-distance transmission

Resistant to noise and long distance transmission is possible.

High speed rotation

Small & Light Weight
