Tamagawa TS5205N452 Hollow Shaft Incremental Encoder 5000 PPR 6/8mm Bore Optical Sensing 15V DC for Servo Motor Control

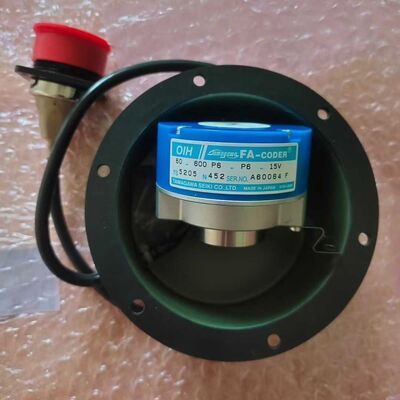

Large Image : Tamagawa TS5205N452 Hollow Shaft Incremental Encoder 5000 PPR 6/8mm Bore Optical Sensing 15V DC for Servo Motor Control

Product Details:

Place of Origin:	Japn
Brand Name:	Tamagawa
Certification:	CE UL ROSH
Model Number:	TS5205N452

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Tamagawa TS5205N452 Hollow Shaft Incremental Encoder 5000 PPR 6/8mm Bore Optical Sensing 15V DC for Servo Motor Control

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Tamagawa rotary encoder TS5205N452

Tamagawa encoder with warranty

TS5205N452 rotary encoder industrial

Tamagawa TS5205N452 Hollow Shaft Incremental Encoder

High-precision 5000 PPR incremental rotary encoder with 6/8mm bore optical sensing and 15V DC operation for servo motor control applications.

Product Overview

The Tamagawa TS5205N452 is a high-precision incremental rotary encoder from the OIH48 series, manufactured by Tamagawa Seiki Co., Ltd. This encoder features a 48mm outer diameter hollow shaft design with 6mm or 8mm shaft bore options (semi-hollow or full-hollow), making it ideal for through-shaft mounting in brushless DC servo motors and industrial automation equipment.

Application Note: This model is widely used in brushless DC servo motor control applications, including main motor feedback in Komori printing presses.

Key Specifications

Model	TS5205N452
Brand	Tamagawa Seiki (Made in Japan)
Series	OIH48 Series
Type	Incremental Rotary Encoder
Shaft Type	Hollow Shaft (Semi-hollow / Full-hollow)
Outer Diameter	48 mm
Shaft Diameter	6 mm or 8 mm (depending on variant)
Maximum Resolution	5000 PPR (pulses per revolution)
Supply Voltage	DC 5-24V (5-15V typical)
Output Type	Digital square wave (A/B phase)
Protection Rating	IP50
Country of Origin	Japan

Key Features

High-Resolution Optical Sensing: Up to 5000 PPR resolution for precise position and speed feedback in servo control applications
Hollow Shaft Design: 48mm outer diameter with 6mm or 8mm hollow shaft bore options for flexible installation
Wide Voltage Compatibility: Operates on DC 5-24V power supply, compatible with a wide range of control systems
Reliable Construction: IP50 protection rating for dust-protected operation in industrial environments
Easy Installation: Hollow shaft design enables quick and simple mounting with standard configurations
Japan Manufactured Quality: Built to Tamagawa's renowned quality standards with over 80 years of expertise

OIH48 Series Overview

Outer Diameter	48 mm
Shaft Types	Semi-hollow / Full-hollow
Shaft Diameters	6 mm, 8 mm
Resolution Range	Up to 5000 PPR
Protection	IP50
Typical Applications	Brushless DC servo motors, industrial automation, printing presses

Applications

Servo Motor Control	Brushless DC servo motor position/speed feedback
Printing Presses	Main motor feedback for Komori and other printing press equipment
Industrial Automation	General motion control, CNC machinery, robotics
Factory Automation	Conveyor systems, positioning stages
OEM Equipment	Original equipment manufacturer integration
Legacy Equipment Repair	Replacement for existing Tamagawa encoders in installed machinery

Technical Specifications Detail

Mechanical Specifications

Outer Diameter	48 mm
Shaft Diameter Options	6 mm, 8 mm
Max Operating Speed	Up to 10,000 rpm
Weight	Approx. 0.2 kg

Environmental Specifications

Protection Rating	IP50
Operating Temperature	-10°C to +85°C
Storage Temperature	-20°C to +90°C

Electrical Specifications

Supply Voltage	DC 5-24V (±5%)
Current Consumption	Max 100 mA (no load)
Output Signal	A, B, Z phases
Frequency Response	Up to 200 kHz

Ordering Information

When ordering, please confirm:
1. Shaft diameter: 6 mm or 8 mm
2. Shaft type: Semi-hollow or full-hollow
3. Output circuit: Open collector or line driver
4. Supply voltage: Confirm compatibility with your control system

Need support? Contact us for:
• Technical specifications and complete datasheets
• Volume pricing and availability
• Installation and wiring guidance
• Cross-reference to existing encoder models
• Application engineering support
