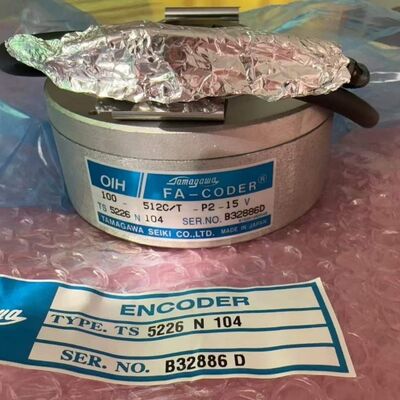

Tamagawa TS5226N104 Rotary Encoder OIH100 Series 1024-10000 PPR 5-15V Line Driver for Elevator Motor Feedback

Large Image : Tamagawa TS5226N104 Rotary Encoder OIH100 Series 1024-10000 PPR 5-15V Line Driver for Elevator Motor Feedback

Product Details:

Place of Origin:	Japan
Brand Name:	Tamagawa
Certification:	CE ROSH UL
Model Number:	TS5226N104

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Tamagawa TS5226N104 Rotary Encoder OIH100 Series 1024-10000 PPR 5-15V Line Driver for Elevator Motor Feedback

Description

Condition:

Tamagawa Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Servo Motor, Elevator Etc.

Highlight:

Tamagawa brushless resolver encoder

FA-SOLVER brushless resolver

Tamagawa encoder with warranty

Tamagawa TS5226N104 Rotary Encoder

High-precision incremental rotary encoder from the OIH100 series, manufactured by Tamagawa Seiki Co., Ltd. - a world-leading Japanese manufacturer of encoders, resolvers, and motion control components.

Note: This model is the successor/upgrade to TS5226N103.

Key Specifications

Parameter	Specification
Model	TS5226N104
Brand	Tamagawa Seiki (Made in Japan)
Series	OIH100 Series
Type	Incremental Rotary Encoder
Outer Diameter	100 mm
Shaft Type	Full Hollow (Full Bore / Full Hole)
Shaft Diameter	30 mm
Resolution (PPR/CPR)	1024 / 4096 / 5000 / 6000 / 8190 / 10000 (selectable)
Output Types	Line Driver, Push-Pull, Open Collector, Sine/Cosine
Supply Voltage	DC 5V ~ 15V
Protection Rating	IP50
Maximum Speed	6,000 rpm
Operating Temperature	-10°C ~ +85°C
Weight	Approx. 2.0 kg

Key Features

Designed for Elevator Applications - Specifically engineered for elevator traction machine feedback, providing reliable position and speed feedback for vertical transportation systems
Hollow Shaft Design - 30mm full hollow bore allows direct through-shaft mounting on motor shafts, eliminating the need for flexible couplings
Multiple Resolution Options - Supports resolutions from 1,024 to 10,000 pulses per revolution for flexible configuration
Versatile Output Compatibility - Four output types available: Line Driver, Push-Pull, Open Collector, and Sine/Cosine
Wide Voltage Range - Operates on DC 5V to 15V power supply, compatible with both 5V and 12/15V control systems
Rugged & Reliable Construction - IP50 protection rating with high resistance to shock, vibration, and moisture
Japan Manufactured Quality - Built to Tamagawa's renowned quality and reliability standards

Applications

Elevator Systems: Traction machine speed/position feedback, floor positioning
CNC Machinery: Spindle speed feedback, axis positioning
Industrial Robotics: Joint angle feedback, servo motor control
Textile Machinery: Winding machines, precision positioning
Woodworking Machinery: CNC routers, engraving machines
Medical Equipment: Diagnostic imaging, precision positioning stages
General Automation: Motor feedback, conveyor positioning, speed monitoring

Environmental Durability

Parameter	Rating
Temperature Range	-55°C ~ 155°C
Vibration Resistance	196 m/s² (20G), 10~500Hz
Shock Resistance	981 m/s² (100G), 10ms
Humidity	90% Rh Min. at 60°C

Note: These represent general Tamagawa encoder specifications. Refer to official datasheet for TS5226N104-specific ratings.

Certifications & Compliance

RoHS compliant
Manufactured in ISO-certified facilities in Japan

Ordering Information

Item	Details
Manufacturer	Tamagawa Seiki Co., Ltd. (Japan)
Part Number	TS5226N104
Product Status	Active - Replacement for TS5226N103
Packaging	Factory sealed box
Country of Origin	Japan

Technical Support

Contact us for technical specifications, datasheets, volume pricing, installation guidance, cross-referencing, and application engineering support.
