Tamagawa TS5N2E11 Synchro Motor 100/110V 50/60Hz TX TR Precision Position Feedback for Industrial Control Systems

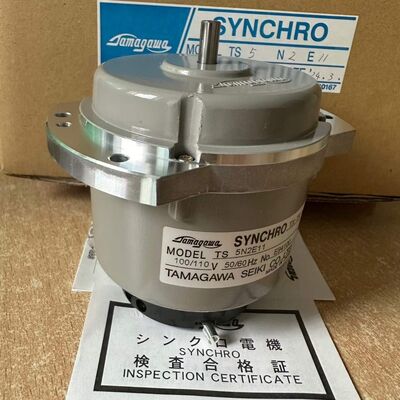

Large Image : Tamagawa TS5N2E11 Synchro Motor 100/110V 50/60Hz TX TR Precision Position Feedback for Industrial Control Systems

Product Details:

Place of Origin:	Japan
Brand Name:	Tamagawa
Certification:	CE
Model Number:	TS5N2E11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	tamagawa original brand new
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	50pcs/month

Contact Now Chat Now

Tamagawa TS5N2E11 Synchro Motor 100/110V 50/60Hz TX TR Precision Position Feedback for Industrial Control Systems

Description

Condition:

Tamagawa Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Tamagawa resolver synchro encoder

Tamagawa TS5N2E11 resolver

Tamagawa synchro encoder with warranty

Tamagawa TS5N2E11 Synchro Motor

The Tamagawa TS5N2E11 is a precision synchro motor manufactured by Tamagawa Seiki Co., Ltd., a leading Japanese manufacturer of precision motors and sensors. This model functions as both a synchro transmitter (TX) and receiver (TR), designed for accurate angular position feedback and synchronous operation in industrial control systems.

Note: This is a synchro (synchronizer/resolver), not a standard servo motor. It is designed for angular position transmission and remote indication applications.

Key Specifications

Parameter	Specification
Model	TS5N2E11
Brand	Tamagawa Seiki Co., Ltd. (Made in Japan)
Type	Synchro (TX/TR - Transmitter/Receiver)
Function	Precision angular position feedback and synchronous operation
Input Voltage	100/110 Vrms
Frequency	50/60 Hz
Output Voltage	90±3 Vrms
Input Current	0.35 A Max
Torque Gradient	8.14×10⁻⁴ Nm/deg Min (8.3 gfcm/deg)
Receiver Error	±1° Max
Synchronizing Time	5 sec Max
Temperature Rise	30°C Max
Insulation Resistance	100 MΩ Min (DC500V)
Dielectric Strength	1,500 Vrms, 1 minute
Mass	1,100 g (approx. 1.1 kg)
Operating Temperature	-20°C ~ +50°C
Certifications	JIS Equivalent Series

Key Features

Precision Position Feedback

TX/TR dual functionality – serves as both transmitter and receiver for versatile system integration
Receiver error of ±1° max ensures accurate angular feedback for critical applications
Proportional angle feedback with minimal drift under varying load conditions

Reliable Synchronous Operation

True synchro operation for stable synchronous speed with negligible drift
Synchronizing time of 5 seconds max for fast response
Compatible with standard 50/60 Hz power systems for global use

Robust Construction

Rugged industrial-grade housing designed for reliable performance in industrial or marine environments
Wide operating temperature range (-20°C ~ +50°C) for harsh conditions
High insulation resistance (100 MΩ) ensures electrical safety and longevity

Japan Manufactured Quality

Built to Tamagawa's high quality standards – a trusted brand in precision motion control
JIS compliant design for guaranteed performance and reliability

Applications

Industry	Application Examples
Industrial Automation	Remote position indication, process control systems
Instrumentation	Precision measurement equipment, test fixtures
Navigation	Shipboard navigation systems, radar antenna positioning
Legacy Control Systems	Retrofit and replacement for existing synchro-based equipment
Aerospace	Flight simulators, control surface position feedback
Marine	Rudder angle indicators, winch control systems

Typical Use Cases:

Transmitting angular position from a sensor to a remote indicator
Synchronizing multiple shafts across distances
Legacy system maintenance and replacement
Precision angle measurement and control

Working Principle

Synchro systems operate similarly to variable transformers. When the shaft of a transmitter (TX) rotates, it induces corresponding voltages in the stator windings. These voltages are sent to a receiver (TR), which rotates its shaft to match the transmitter's angular position.

The TS5N2E11 can be configured as either a transmitter (TX) or receiver (TR), making it a versatile component for:

Remote angle indication systems
Servo feedback loops
Multi-axis synchronization

Model Number Reference

The TS5N2E11 is part of Tamagawa's JIS Equivalent Series for synchros.

Model	Function	Input Voltage	Input Current	Mass
TS5N2E11	TX/TR	100/110V	0.35A	1,100g
TS5N2E12	TX/TR	200/220V	0.17A	1,100g

Related models in the same series include:

TS4E11, TS4E12 (smaller frame, 390g)
TS20E11, TS20E12 (950g)
TS21E11, TS21E12 (1,400g)

Key Benefits

Benefit	Description
High Precision	±1° receiver error ensures accurate angular positioning
Versatile Application	TX/TR dual functionality covers multiple use cases
Proven Reliability	Tamagawa's reputation for quality and longevity
Easy Integration	Standard 100/110V 50/60Hz operation for global compatibility
Legacy Support	Ideal replacement for existing synchro-based systems
Rugged Design	Industrial-grade construction for demanding environments
Low Drift	Stable synchronous operation with minimal position drift

Certifications & Compliance

JIS Equivalent – Compliant with Japanese Industrial Standards
RoHS compliant
Manufactured in ISO-certified facilities

Ordering Information

Item	Details
Manufacturer	Tamagawa Seiki Co., Ltd. (Japan)
Part Number	TS5N2E11
Product Status	Available (verify stock)
Packaging	Factory sealed box
Country of Origin	Japan

Note: This product is primarily used in legacy system maintenance and replacement. For new designs, consult Tamagawa for current model recommendations.

Need support? Contact us for:

Technical specifications and datasheets
Volume pricing and availability
Cross-reference to equivalent models
Installation and wiring guidance
Application engineering support
