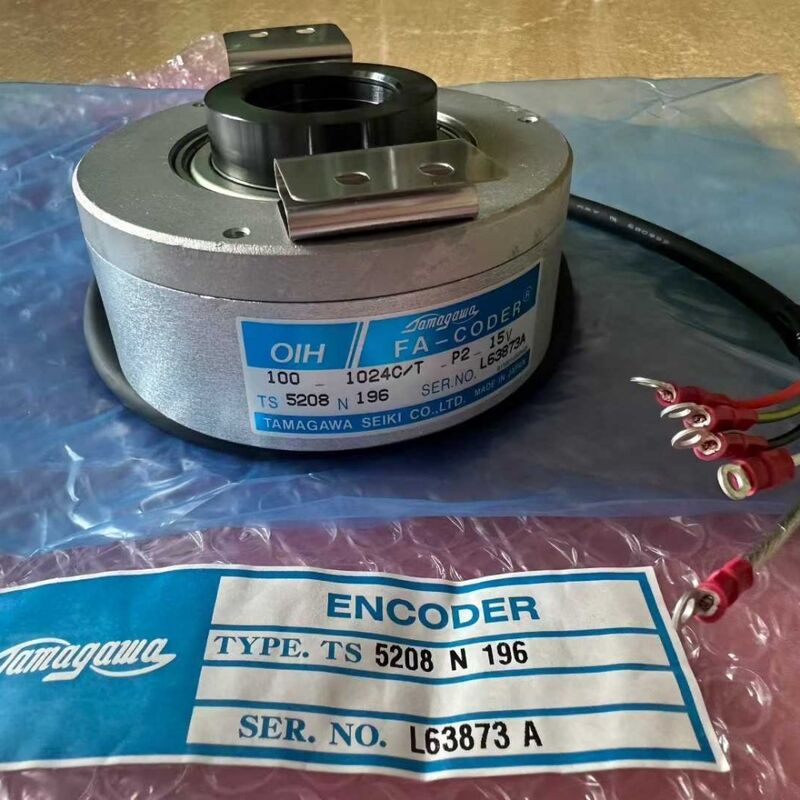

TS5208BN196 Tamagawa Brushless Resolvers FA-SOLVER Encoder

Brushless resolvers provide high-accuracy feedback for position and speed sensing, along with motor pole detection. Designed for harsh industrial environments, these encoders are ideal for machine tools, robotics applications, and steel manufacturing equipment.

• Wide Temperature Range: Built-in type: -55 to +155℃ | Shaft type: -30 to +100℃
• Superior Environmental Resistance: Vibration: 196 m/s² (20G) at 10-500 Hz | Shock: 981 m/s² (100G) for 6ms | Humidity: 90% RH at 60°C
• High-Speed Rotation: Built-in type: 10,000 rpm | Shaft type: 6,000 rpm
• High Reliability: No winding coil on rotor | Built-in types require no maintenance
• Long-Distance Transmission: Excellent noise resistance enables reliable long-distance signal transmission
• Compact Design: Built-in types minimize motor housing requirements

Brushless resolvers available in both shaft type and built-in type configurations to meet diverse application requirements.

Rotation angle sensors with exceptional environmental resistance performance, suitable for demanding industrial applications.

• Extended Temperature Range: -55 to +155℃ (built-in type)
• Robust Environmental Resistance: Vibration: 196 m/s² (20G) | Shock: 981 m/s² (100G)
• Maintenance-Free Operation: No electrical or optical components required
• Long-Distance Capability: Excellent noise immunity for reliable transmission
• High-Speed Performance: Optimized for rapid rotation applications
• Compact & Lightweight: Space-efficient design for integration into tight spaces

High-accuracy rotary measurement sensors with superior resolution. Our FA-CODER® encoders serve diverse applications including factory automation, measurement systems, office equipment, medical devices, and aerospace applications.

Generate pulses proportional to rotational speed, ideal for speed and position measurement applications.

Output absolute rotation angle values for precise position control and feedback systems.

Brushless resolvers and synchros provide high-accuracy feedback for position, speed sensing, and motor pole detection. Engineered for harsh environments, these components are essential for high-speed motors in hybrid/electric vehicles and robotics.

Angle sensors that output rotational positions as two-phase AC voltages (analog signals). Their simple iron core and coil construction provides superior environmental resistance compared to other sensor technologies.

Output absolute rotation angles with memory capability for rotation counts beyond single revolutions. Essential for position control in servo motors for machine tools and robotic applications.
