Delta B3 Series ECM-B3M-EA1310RS1 1kW AC Servo Motor for Winding Machine CNC Packaging Machine Robotics Industrial Automation

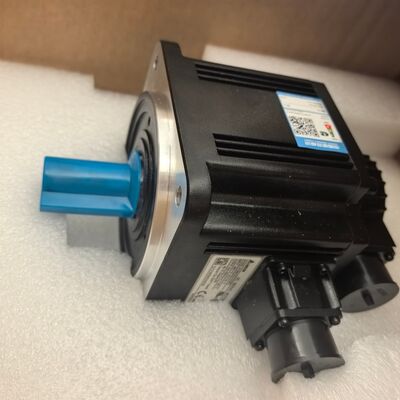

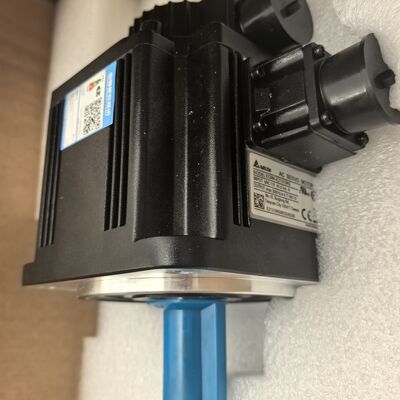

Large Image : Delta B3 Series ECM-B3M-EA1310RS1 1kW AC Servo Motor for Winding Machine CNC Packaging Machine Robotics Industrial Automation

Product Details:

Place of Origin:	Taiwan
Brand Name:	Delta
Certification:	CE UL
Model Number:	ECM-B3M-EA1310RS1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Delta original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

Delta B3 Series ECM-B3M-EA1310RS1 1kW AC Servo Motor for Winding Machine CNC Packaging Machine Robotics Industrial Automation

Description

Condition:

Delta Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Winding Machine

Highlight:

1kW AC servo motor for CNC

Delta B3 Series servo motor for robotics

industrial AC servo motor with warranty

Delta B3 Series ECM-B3M-EA1310RS1 1kW AC Servo Motor

The Delta ECM-B3M-EA1310RS1 is a high-performance 1kW AC servo motor from the ASDA-B3 series, designed for precision motion control in demanding industrial automation applications. This medium inertia motor delivers reliable performance with IP67 protection and integrated oil seal for harsh operating environments.

Product Specifications

Parameter	Specification
Model	ECM-B3M-EA1310RS1
Rated Power	1.0 kW (1000W)
Rated Voltage	220 VAC
Rated Speed	2000 rpm
Rated Torque	4.77 N*m
Output Current	7.3 Arms
Motor Inertia	Medium Inertia
Encoder Type	Resolver / 24-bit Absolute
Brake	Without Brake
Oil Seal	With Oil Seal
Flange Size	130 mm
Protection Class	IP67
Operating Temperature	-20°C to +60°C
Weight	Approx. 4.9 kg

Key Features

24-bit High Resolution Encoder: 16,777,216 pulses/rev for sub-micron positioning accuracy and stable low-speed operation
Resolver Option: Rugged encoder technology for excellent durability in harsh industrial environments
Medium Inertia Design: Balanced dynamic response and stability for applications requiring both responsiveness and load handling
IP67 Protection: Oil seal and dust/water resistance suitable for machine tools and coolant exposure
High Torque Density: 4.77 N*m continuous torque enables efficient acceleration and deceleration

Applications

Industry	Applications
CNC Machinery	Milling machines, lathes, machining centers, engraving machines
Packaging Machinery	Filling machines, labeling equipment, cartoning machines
Robotics	SCARA robots, delta robots, pick-and-place systems
Electronics	SMT machines, PCB drilling, semiconductor handling
Material Handling	Conveyor systems, AGV, automated storage

System Integration

Compatible Drives

Pair with Delta ASDA-B3 series servo drives for optimal performance:

Drive Model	Power Rating
ASD-B3-1021-L	1kW (recommended)
ASD-B3-0721-L	750W

System Performance (with ASDA-B3 Drive)

Parameter	Value
Velocity Response Bandwidth	3.1 kHz
Settling Time	40% faster than previous generation
Control Modes	PT, PR, Analog, RS-485, EtherCAT

Integration Guidelines

Item	Recommendation
Wiring	Connect power and encoder cables to designated drive terminals
Grounding	Proper grounding required for signal integrity
Cable Routing	Separate power cables from encoder signals to prevent interference
Auto-Tuning	Execute one-click gain optimization for load-specific performance

Safety & Operational Guidelines

Item	Requirement
Power Disconnection	Disconnect power before wiring or maintenance
Temperature Range	Operate within -20°C to +60°C
Cooling	Ensure adequate ventilation for motor cooling
Alarm Handling	Refer to ASDA-B3 drive manual for alarm codes (AL001 overcurrent, AL036 encoder error)

Frequently Asked Questions

Q: What encoder type does this motor use?

A: The ECM-B3M-EA1310RS1 features a resolver encoder for rugged durability, or a 24-bit absolute encoder depending on configuration. Verify with supplier for exact specification.

Q: Does this motor include a brake?

A: No, this model is without brake. Select a variant with integrated brake for vertical axis or position-holding applications.

Q: What is the IP rating?

A: IP67 when used with proper waterproof connections and the integrated oil seal.

Q: What drives are compatible?

A: Delta ASDA-B3 series drives, such as ASD-B3-1021-L (1kW) or ASD-B3-0721-L (750W).

Ordering Information

Item	Details
Model	ECM-B3M-EA1310RS1
Power	1 kW
Brake	Without Brake
Oil Seal	With Oil Seal
Encoder	Resolver / 24-bit Absolute
Flange	130 mm
Compatible Drive	ASDA-B3 Series
