Delta ECM-B3M-EA1310SS1 1kW Servo Motor 24-bit Encoder

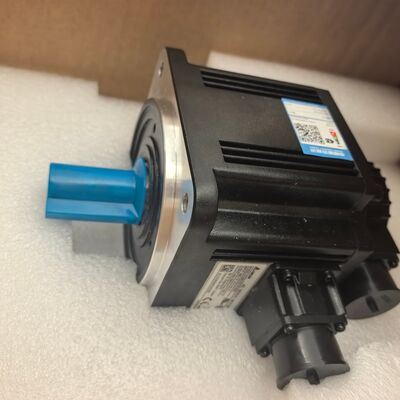

Large Image : Delta ECM-B3M-EA1310SS1 1kW Servo Motor 24-bit Encoder

Product Details:

Place of Origin:	Taiwan
Brand Name:	Delta
Certification:	CE UL
Model Number:	ECM-B3M-EA1310SS1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Delta original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

Delta ECM-B3M-EA1310SS1 1kW Servo Motor 24-bit Encoder

Description

Condition:

Delta Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Winding Machine Etc.

Highlight:

1kW AC servo motor

Delta servo motor 24-bit encoder

1kW servo motor with warranty

Delta ECM-B3M-EA1310SS1 1kW Servo Motor with 24-bit Encoder

Product Overview

The Delta ECM-B3M-EA1310SS1 is a high-performance 1kW AC servo motor from the ASDA-B3 series, engineered for precision industrial automation. Featuring a 24-bit absolute encoder, integrated brake, oil seal, and IP67 protection, this motor delivers exceptional accuracy and reliability in demanding environments.

Key Specifications

Parameter	Specification
Model	ECM-B3M-EA1310SS1
Rated Power	1.0 kW (1000W)
Rated Voltage	230V AC
Rated Speed	3000 RPM
Rated Torque	3.18 Nm
Peak Torque	9.55 Nm
Encoder	24-bit Absolute (16,777,216 pulses/rev)
Flange Size	130 mm
Brake	With Brake
Oil Seal	With Oil Seal
Protection	IP67

Key Features

24-bit Absolute Encoder: Provides sub-micron positioning accuracy with no homing required after power loss
High Torque Density: 3.18 Nm continuous / 9.55 Nm peak torque for rapid acceleration and heavy load handling
IP67 Protection: Oil seal and dust/water resistance for machine tools and harsh industrial environments
Integrated Brake: Built-in holding brake prevents shaft movement during power-off, ideal for vertical axis applications

Applications

Industry	Applications
CNC Machinery	Milling machines, lathes, machining centers, engraving machines
Robotics	SCARA robots, delta robots, pick-and-place systems
Electronics	SMT machines, PCB drilling, semiconductor handling
Packaging	Filling machines, labeling equipment, cartoning machines
Automation	Conveyor systems, AGV, material handling

Compatible Drives

For optimal performance, pair with Delta ASDA-B3 series servo drives:

Drive Model	Power Rating
ASD-B3-0721-L	750W
ASD-B3-1021-L	1kW (recommended)

System Performance

When paired with ASD-B3 series drives:

Parameter	Value
Velocity Response Bandwidth	3.1 kHz
Settling Time Improvement	40% faster than previous generation
Peak Torque Capability	350%

Installation & Safety Requirements

Item	Requirement
Wiring	Use shielded cables for encoder; separate from power cables
Grounding	Proper grounding required for noise immunity
Ventilation	Maintain adequate clearance for cooling
Safety	Disconnect power before maintenance; verify emergency stop function

Ordering Information

Item	Details
Model	ECM-B3M-EA1310SS1
Included	1kW servo motor with brake, oil seal, 24-bit absolute encoder
Compatible Drive	ASD-B3-1021-L / ASD-B3-0721-L
