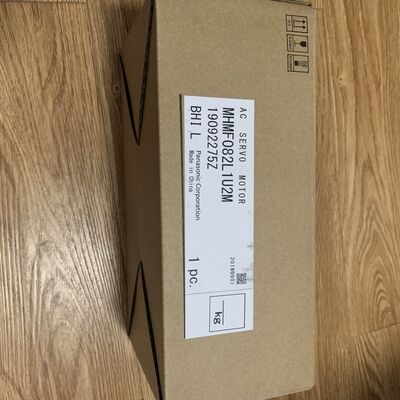

MHMF082L1V2M Panasonic 750W AC Servo Motor

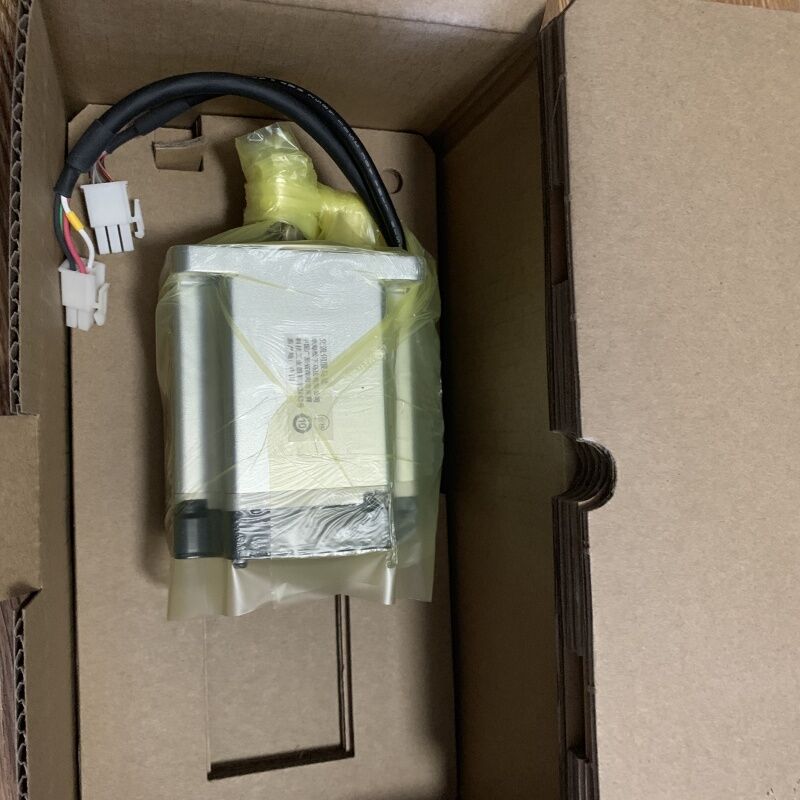

Large Image : MHMF082L1V2M Panasonic 750W AC Servo Motor

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMF082L1V2M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original brand new
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MHMF082L1V2M Panasonic 750W AC Servo Motor

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 750W AC servo motor , Panasonic servo motor with driver , 750W AC servo motor with warranty

MHMF082L1V2M Panasonic 750W AC Servo Motor

Product Overview

The MHMF082L1V2M is a high-performance AC servo motor from Panasonic's MINAS A6 Family, featuring high inertia design and lead wire configuration for industrial automation applications.

Key Features

Power range: 50W to 22kW capability
Input power supply options: DC 24V/48V or AC 100V/200V/400V
23-bit Absolute/Incremental encoder system with battery-less option
High frequency response: 3.2 kHz
IP65 protection rating (excluding rotating shaft and leadwire end)
Built-in holding brake with key-way shaft and center tap

Motor Specifications

Part Number	MHMF082L1V2M
Rated Output	750W
Rated Torque	2.39 N⋅m
Rated Rotational Speed	3000 r/min
Max Rotational Speed	6000 r/min
Rated Current	3.8 A rms
Flange Size	80 mm square
Mass	3.0 kg
Inertia of Rotor	1.66 × 10⁻⁴ kg⋅m²
Encoder Resolution	8,388,608 (23-bit)

Brake Specifications

Static Friction Torque	3.8 N⋅m or more
Engaging Time	70 ms or less
Releasing Time	20 ms or less
Exciting Voltage	24 ± 2.4 V DC

Important: This brake releases when energized. Do not use for braking the motor in motion. Refer to Motor Specification Description for detailed brake specifications.

Permissible Load Specifications

Condition	Direction	Load (N)
During Assembly	Radial Load P-direction	686
	Thrust Load A-direction	294
	Thrust Load B-direction	392
During Operation	Radial Load P-direction	392
During Operation	Thrust Load A,B-direction	147

Compatible Drivers

Part Number	Series	Type	Interface	Frame	Supply Voltage
MCDLN35NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	C-Frame	Single/3-phase 200V
MCDLN35SE	A6SE series	Position control type	Pulse train only	C-Frame	Single/3-phase 200V
MCDLN35SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485/RS232)	C-Frame	Single/3-phase 200V
MCDLT35NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	C-Frame	Single/3-phase 200V
MCDLT35SF	A6SF series	Multifunction type	Analog/Pulse, Modbus (RS485/RS232)	C-Frame	Single/3-phase 200V

Note: Specifications and design are subject to change without notice for product improvement.

Special Order Notice: Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.
