750W Panasonic AC Servo Motor MHMF082L1U2M Frequency Response 3.2KHz

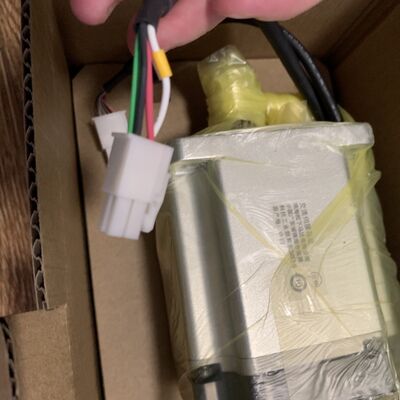

Large Image : 750W Panasonic AC Servo Motor MHMF082L1U2M Frequency Response 3.2KHz

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMF082L1U2M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

750W Panasonic AC Servo Motor MHMF082L1U2M Frequency Response 3.2KHz

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	750W Panasonic AC Servo Motor , Panasonic AC Servo Motor 3.2KHz , MHMF082L1U2M

750W Panasonic AC Servo Motor MHMF082L1U2M

High-performance AC servo motor with 3.2kHz frequency response from the MINAS A6 Family series.

Product Overview

Product Type	Servo Motor
Product Name	MINAS A6 Family Servo Motor
Part Number	MHMF082L1U2M
Series	MHMF Series
Type	High inertia, Lead wire type

Key Features

Power range: 50W to 22kW
Driver input power supply: DC 24V/48V or AC 100V/200V/400V
23-bit Absolute/Incremental encoder system
Battery-less Absolute/Incremental encoder
High frequency response: 3.2kHz
IP65 protection class

Technical Specifications

Rated Output	750W
Rated Torque	2.39 N⋅m
Continuous Stall Torque	2.86 N⋅m
Maximum Peak Torque	8.36 N⋅m
Rated Rotational Speed	3000 r/min
Maximum Rotational Speed	6000 r/min
Rated Current	3.8 A rms
Maximum Current	18.8 A 0-p
Flange Size	80 mm
Mass	2.3 kg
Shaft Configuration	Key-way, center tap
Oil Seal	Included
Holding Brake	Without

Encoder Specifications

Encoder Type	23-bit Absolute/Incremental system
Resolution	8,388,608

Important Notice: When using the rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.

Permissible Load Specifications

Load Type	During Assembly	During Operation
Radial Load (P-direction)	686 N	392 N
Thrust Load (A-direction)	294 N	147 N
Thrust Load (B-direction)	392 N	147 N

Compatible Drivers

Part Number	Series	Type	Interface	Frame	Supply Voltage
MCDLN35NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	C-Frame	Single/3-phase 200V
MCDLN35SE	A6SE series	Position control type	Pulse train only	C-Frame	Single/3-phase 200V
MCDLN35SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485/RS232)	C-Frame	Single/3-phase 200V
MCDLT35NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	C-Frame	Single/3-phase 200V
MCDLT35SF	A6SF series	Multifunction type	Analog/Pulse, Modbus (RS485/RS232)	C-Frame	Single/3-phase 200V

Regional Restriction: Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.
