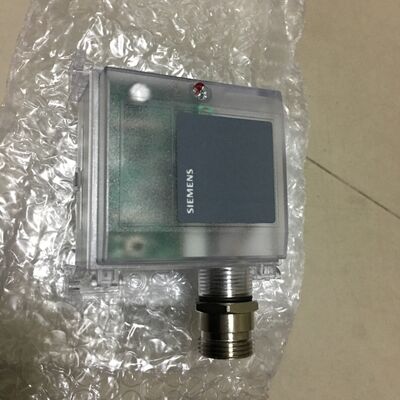

AC 24V Differential Siemens Pressure Sensor QBM3020-5

Differential pressure sensor QBM3020-.. QBM3120-..

for air and non-aggressive gases

• High degree of measuring accuracy

• Adjustable characteristic curve (pressure-linear or extracting-the-root)

• Operating voltage: QBM3020-..: AC 24 V / DC 13.5…33 V

QBM3120-..: DC 8...33 V

• Output signal: QBM3020-..: DC 0...10 V

QBM3120-..: 4…20 mA

• Zero-point adjustment

• Simple and fast mounting thanks to integrated fixing angle bar in the housing

• Maintenance free thanks to excellent long-term stability

• Calibrated and temperature-compensated measuring signal

• Supplied with plastic tubing

• Very short response time

• Actual value display*

* Depending on type

Application

The differential pressure sensor acquires differential, over and under pressure of air and nonaggressive gases if a high degree of measuring accuracy and quality is required. It is also suited for measuring volume flow via differential pressure since the output signal can be set to extracting-the-root.

Fields of application

• Measuring the slightest differential pressures in ventilation and air conditioning ducts

• Check air flows

• Monitor filters and control fans

• Pressure supervision in labs, production, and clean rooms

• For acquiring variable air flow in VAV plants on the supply

Type summary
