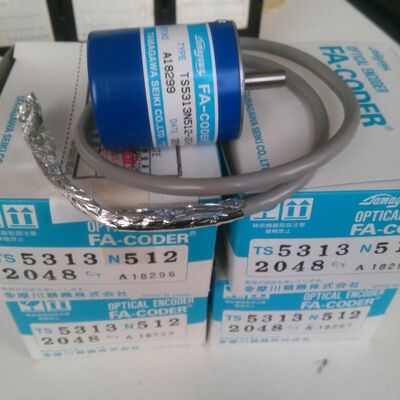

Tamagawa Shaft Resolver TS5313N512 Rotary Incremental Encoders

Large Image : Tamagawa Shaft Resolver TS5313N512 Rotary Incremental Encoders

Product Details:

Brand Name:	Tamagawa
Model Number:	TS5313N512

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Tamagawa Shaft Resolver TS5313N512 Rotary Incremental Encoders

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Tamagawa Shaft Resolver , Shaft Resolver TS5313N512 , Tamagawa Rotary Incremental Encoder

Tamagawa Incremental Encoders TS5313N512

A type that outputs a pulse train according to the rotational displacement of the shaft.

Shaft Type

Model No.		TS53□□N5□□	TS51□□N□□□	TS50□□N□□□	TS50□□N□
Appearance
Series		OIS38	OIS66	OIS68	OIS128
Outside Diameter		Φ 38 mm	Φ 66 mm	□ 68 mm	Φ 128 mm,□120 mm
Shaft Diameter		Φ 6 mm	Φ 5 mm	Φ 10 mm	Φ 16 mm
Resolution		100 to 2,500 C/T	100 to 5,000 C/T		25 to 5,000 C/T
Output Phase		A,B,Z Phase			A,B Phase
Supply Voltage		DC+5 to +12 V	DC+5,+12 V		DC+24 V
Consumption Current (NOTE1)		100 mA Max	200 mA Max		300 mA Max
Output Form		Open Collector Line Driver	Voltage Open Collector Line Driver		Voltage Complementaly
Maximum Response Frequency		200 kHz	125 kHz		25 kHz
Starting Torque		4.4×10-3 N⋅m Max (45 gf⋅cm Max)	2.9×10-3 N⋅m Max (30 gf⋅cm Max)	9.8×10-2 N⋅m Max (1 kgf⋅cm Max)	2×10-1 N⋅m Max (2 kgf⋅cm Max)
Moment of Inertia		1.5×10-6 kg･m2 Max (15 g⋅cm2 Max)	3.0×10-6 kg･m2 Max (30 g⋅cm2 Max)	3.0×10-6 kg･m2 Max (30 g⋅cm2 Max)	5.0×10-5 kg･m2 Max (500 g⋅cm2 Max)
Maximun Allowable Rotation (Mechanical Spec.)		5,000 min-1(rpm)		7,200 min-1(rpm)	2,500 min-1(rpm)
Allowable Shaft Load (NOTE2)	Radial	21.6 N Max (2.2 kgf Max)		98 N Max (10 kgf Max)	392 N Max (40 kgf Max)
Allowable Shaft Load (NOTE2)	Axial	10.8 N Max (1.1 kgf Max)	12.7 N Max (1.3 kgf Max)	49 N Max (5 kgf Max)
Mass (Excluding Cable)		0.15 kg Max	0.5 kg Max	1 kg Max	Mount Type:7 kg Max Flange Type:8 kg Max
Operating Temp. Range		-10 to +70 °C (Line Dliver type: 0 to +70 ℃)	0 to +70 ℃	-10 to +70 °C	-0 to +50 °C
Protective Structure (NOTE3)		IP50		IP52	IP57
Vibration (NOTE4)		49 m/s2 (5 G)		98 /s2 (10 G)
Shock (NOTE5)		490 m/s2 (50 G)		980 m/s2 (100 G)

NOTE 1) Consumption Current: Specified value for an output circuit with no load.
NOTE 2) Specified value for the Allowable Shaft Load. Usage to within 20 % of the specified value is recommended on actual use.
NOTE 3) Regarding special specifications for the Protective Structure, please consult us.
NOTE 4) Vibration: Value which satisfies the conditions of 2 hours each for axes X, Y and Z, for a total of 6 hours.
NOTE 5) Shock: Value which satisfies the conditions of 3 times each for axes X, Y and Z, for a total of 18 times

Tag:

Incremental Encoders,

Rotary Resolver,

martsyn Resolver
