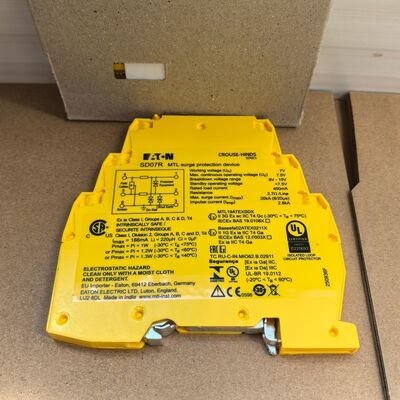

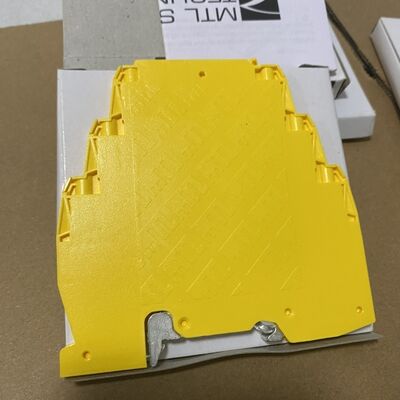

SD07X MTL Surge Arrestor Surge Protection Device

Large Image : SD07X MTL Surge Arrestor Surge Protection Device

Product Details:

Place of Origin:	India
Brand Name:	EATON
Model Number:	SD07X

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	ship out immediately after payment received
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

SD07X MTL Surge Arrestor Surge Protection Device

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	MTL surge arrestor SD07X model , surge protection device with warranty , SD07X surge arrestor for industrial

Eaton Crouse-Hinds series MTL SD surge protector, 5 Vac, 7 Vdc, 5kA surge current, 400mA, T-section DIN rail, <12V voltage disconnect level, 12 AWG, Low resistance

Product Name	Eaton Crouse-Hinds series MTL SD surge protector
Catalog Number	SD07X
Product Length/Depth	99 mm
Product Height	101.3 mm
Product Width	7 mm
Product Weight	70 g
Global Catalog	SD07X
Product Type	Surge protector

Area classification	Hazardous/Classified Locations
Standards type	IECEx/ATEX NEC/CEC IEC
IECEx/ATEX hazardous rating	Zone 2
Ingress protection (IP) ratings	IP54
Mounting Method	T-section DIN rail
Special features	Low resistance
Frequency	25 kHz
Response Time	<1ns
Category Tested Acc. IEC 61643-21	A2, B2, C1, C2, C3, D1
Conductor Cross-section AWG	12 AWG
Minimum Ambient Operating Temperature	-40 °C
Maximum Ambient Operating Temperature	80 °C
Minimum Ambient Storage Temperature	-40 °C
Maximum Ambient Storage Temperature	80 °C
Humidity	5-95% RH (non-condensing)
Modes of Protection	For protecting electronic equipment and systems against surges on signal and I/O cabling
Nominal Voltage AC	5V
Nominal Voltage DC	7V
Nominal Discharge Surge Current (8/20)	5 kA
Lightning Impulse Current (10/350 µs)	2.8 kA
Nominal Load Current	400mA
Voltage Protection Level at In	30V
Voltage Protection Level at 1kV/µS	<12V
Series Resistance (Ω/Line)	2.2Ω
Max. Leakage Current	500µA
Max. Continuous Voltage AC	7.7V

MTL SD Surge Protector for Data & Signal Applications

SD07

SD16

SD32

SD55

SD07R

SD16R

SD32R

SD55R

SD07X

SD16X

SD32X

SD55X

SD32T3

SD07R3

SD16R3

SD32R3

SD55R3

SDRTD

SDPSTN

SD150X

SD275X
