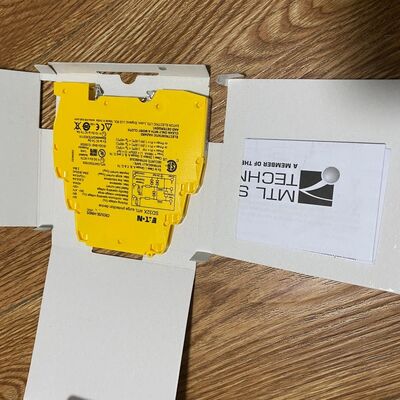

Eaton MTL SD07R3 Surge Protective Device with 5kA Surge Current IP54 Rated DIN Rail Mount

Large Image : Eaton MTL SD07R3 Surge Protective Device with 5kA Surge Current IP54 Rated DIN Rail Mount

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	SD07R3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	500pcs/month
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Eaton MTL SD07R3 Surge Protective Device with 5kA Surge Current IP54 Rated DIN Rail Mount

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	MTL surge protector SD07R3 , Surge protection device with warranty , SD07R3 surge protective device

MTL Surge Protective Device SD07R3

Eaton Crouse-Hinds series MTL SD surge protector designed for protecting electronic equipment and systems against surges on signal and I/O cabling. Features 5 Vac, 7 Vdc nominal voltage, 5kA surge current rating, and 400mA nominal load current.

Product Specifications

Catalog Number	SD07R3
Product Type	Surge Protector
Dimensions (L x H x W)	99 mm × 101.3 mm × 7 mm
Product Weight	70 g
Mounting Method	T-section DIN Rail

Electrical Specifications

Nominal Voltage AC	5V
Nominal Voltage DC	7V
Max. Continuous Voltage AC	7.7V
Nominal Load Current	400mA
Nominal Discharge Surge Current (8/20)	5 kA
Lightning Impulse Current (10/350 µs)	2.8 kA
Voltage Protection Level at In	30V
Voltage Protection Level at 1kV/µS	<12V
Series Resistance (Ω/Line)	2.7Ω
Max. Leakage Current	500µA

Environmental & Safety Ratings

Area Classification	Hazardous/Classified Locations
IECEx/ATEX Hazardous Rating	Zone 2
Ingress Protection (IP) Rating	IP54
Operating Temperature Range	-40 °C to 80 °C
Humidity Range	5-95% RH (non-condensing)
Standards Compliance	IEC, IECEx/ATEX, NEC/CEC

Key Features

Ultra-fast response time <1ns for superior surge protection
3-terminal design for flexible installation
12 AWG conductor cross-section compatibility
Comprehensive category testing per IEC 61643-21 (A2, B2, C1, C2, C3, D1)
50 MHz frequency capability
Robust construction for industrial environments
