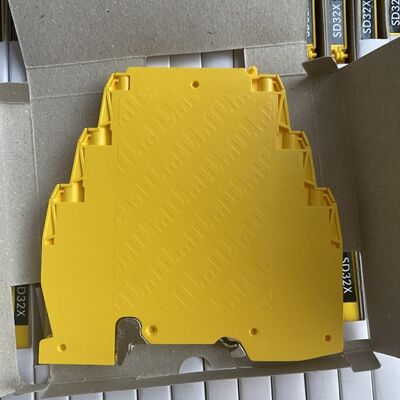

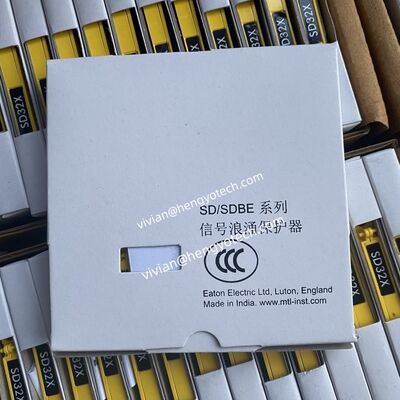

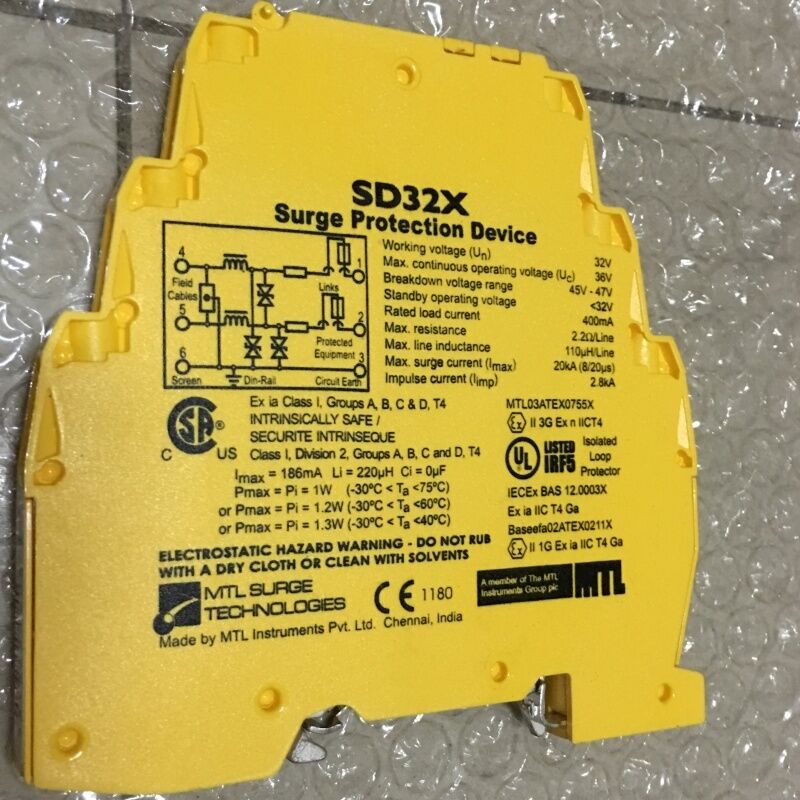

SD32X EATON Surge Protection Device for Data & Signal Applications
Product Overview
The SD32X is an ultra-slim surge protection device designed for protecting electronic equipment and systems against surges on signal and I/O cabling in data and signal applications.
Technical Specifications
| Place of Origin |
INDIA |
| Brand Name |
MTL |
| Certification |
ROHS |
| Model Number |
SD32X |
| Product Type |
Surge Protection Device (SPD) |
| Nominal Voltage (Un) |
32Vdc, 22Vac |
| Nominal Current (In) |
400 mA |
| Series Resistance (W/line) |
2.2 |
| Max. Leakage Current |
5 µA |
| Rated Voltage (MCOV) (Uc) |
36 |
| Special Feature |
Low Resistance |
Key Features
- Ultra-slim design for high packing density
- User-friendly installation and maintenance
- Proven reliable hybrid circuitry
- Application versatility for various signal types
- Optional 'loop disconnect' facilities
- Full hybrid surge protection for 2 and 3 wire loops
The SD Series combines unparalleled packing densities, application versatility, and proven reliable hybrid circuitry - making it the ultimate surge protection solution for process equipment, I/O systems and communications networks.
SD Series Variants
SDX Series
SDX units, available in 7V, 16V, 32V and 55V versions (SD07X, SD16X, SD32X and SD55X respectively) are suitable for a wide range of applications including THCs, 4-20mA loops, shut-down systems and fire and gas detectors.
SDM - Modular Device
The SD Modular (SDM) combines the proven protection of the SD series with modularity for ease of maintenance. Users can change surge protection modules without interference with wiring, and it's backwards compatible with existing SD series installations.
Available Models
| SD07 |
SD16 |
SD32 |
SD55 |
| SD07R |
SD16R |
SD32R |
SD55R |
| SD07X |
SD16X |
SD32X |
SD55X |
| SD32T3 |
SD07R3 |
SD16R3 |
SD32R3 |
| SD55R3 |
SDRTD |
SDPSTN |
SD150X |
| SD275X |
|
|
|
Compatible Part Numbers
Digital Input: MTL4501-SR, MTL4504, MTL4510, MTL4510B, MTL4511, MTL4513, MTL4514/B, MTL4516, MTL4516C, MTL4517
Digital Output: MTL4521, MTL4521L, MTL4523, MTL4523L, MTL4523R, MTL4523V/VL, MTL4524, MTL4524S, MTL4525, MTL4526
Analogue Input: MTL4541, MTL4541A, MTL4541AS, MTL4541B, MTL4541P, MTL4541S, MTL4544, MTL4544A, MTL4544AS, MTL4544B, MTL4544D, MTL4544S
Analogue Output: MTL4546, MTL4546C, MTL4546Y, MTL4549, MTL4549C, MTL4549Y
Temperature Input: MTL4575, MTL4576-RTD, MTL4576-THC, MTL4581
Pulse and Vibration: MTL4531, MTL4532, MTL4533
Fire and Smoke: MTL4561
General: MTL4599, MTL4599N
