Panasonic MINAS A5Ⅱ Series Servo Motor & Driver Kit 750W 200V AC with High Inertia Motor and Position Control Driver

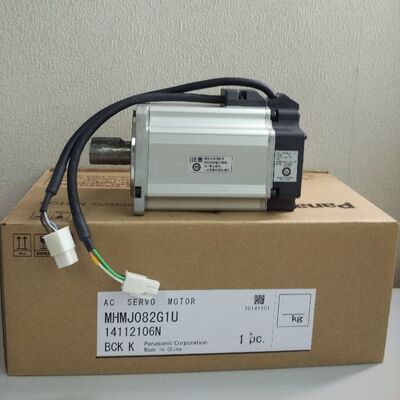

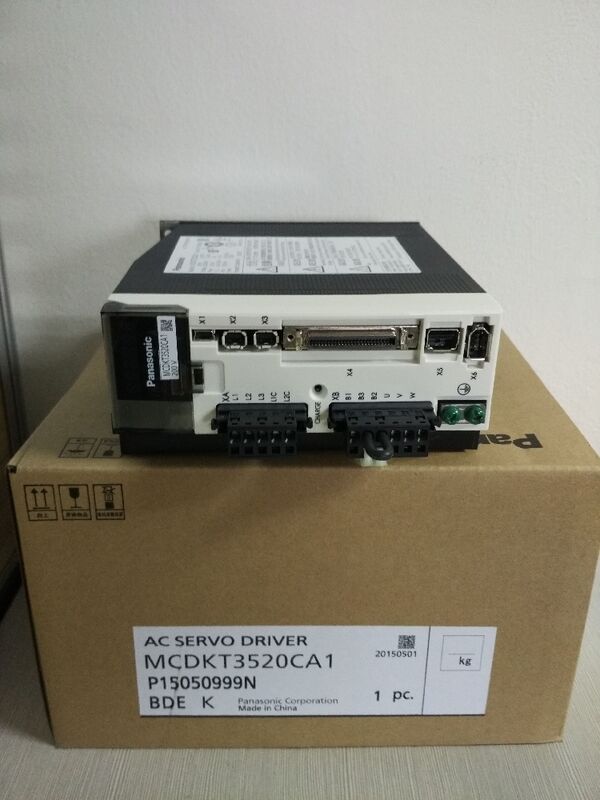

The Panasonic MHMJ082G1U high-inertia servo motor and MCDKT3520CA1 servo driver form a high-performance motion control system from the MINAS A5Ⅱ series, designed for demanding industrial automation applications requiring stable torque output and precise positioning. This 750W combination delivers exceptional performance for applications including CNC machinery, robotics, automated assembly lines, packaging equipment, and high-precision manufacturing systems.

• High Inertia Design: Rotor inertia optimized for high load inertia matching
• High Resolution Feedback: 20-bit incremental encoder with 1,048,576 pulses/revolution
• High Speed Capability: Rated speed of 3000 r/min, maximum speed of 5000 r/min
• Robust Torque Output: Rated torque of 2.39 N*m, peak torque of 7.16 N*m
• IP67 Protection Rating: Excellent environmental protection against dust and water
• Durable Construction: Key-way shaft with oil seal; Φ19mm shaft diameter
• Compact Design: 80mm flange square dimension for easy integration

• Position Control Type: Advanced two-degree-of-freedom control system
• High Frequency Response: 2.3 kHz for rapid positioning
• 30A Power Output: Supports 750W motor operation
• Multiple Control Modes: Switchable between position and velocity control
• Flexible I/O Configuration: 10 programmable inputs and 6 programmable outputs
• USB Configuration Interface: Easy setup and real-time monitoring
• Auto-Tuning Function: Automatically adjusts gain parameters
• Built-in Protection: Overvoltage, undervoltage, overcurrent, and overheat protection

The MCDKT3520CA1 features Panasonic's advanced two-degree-of-freedom control system, which independently optimizes:

• Command Response: Fast response to position/speed commands for improved productivity
• Disturbance Suppression: Effective rejection of external disturbances for stable operation
• Machining Accuracy: Improved accuracy by reducing following errors during operation

• CNC Machinery - Stable operation with high-inertia loads
• Industrial Robotics - Articulated arms and gantry systems
• Automated Assembly Lines - Indexing operations
• Packaging Machinery - Wrapping, filling, and sealing equipment
• Material Handling - Conveyors and transfer systems
• High-Inertia Load Applications

• Precision Positioning - PCB assembly and inspection equipment
• CNC Machine Tools - Axis control requiring fast response
• Automated Manufacturing - General-purpose position control
• Packaging Systems - High-speed indexing operations

• Mounting Orientation: Any orientation acceptable with adequate ventilation
• Mounting Surface: Flat, rigid surface with sufficient heat dissipation
• Flange Size: □80 mm square flange for standard mounting
• Shaft Connection: Key-way shaft for positive torque transmission
• Shaft Diameter: Φ19 mm

• Mounting: Chassis mount - 65mm width C-Frame design
• Cooling: Natural convection cooling with adequate ventilation
• Environment: Operates in 0°C to 55°C temperature range
