Panasonic MDMF152L1G6M + MDDLN55SG 1.5kW Servo Motor & Driver Kit with 23-bit Encoder and RS-485/Modbus for Industrial Automation

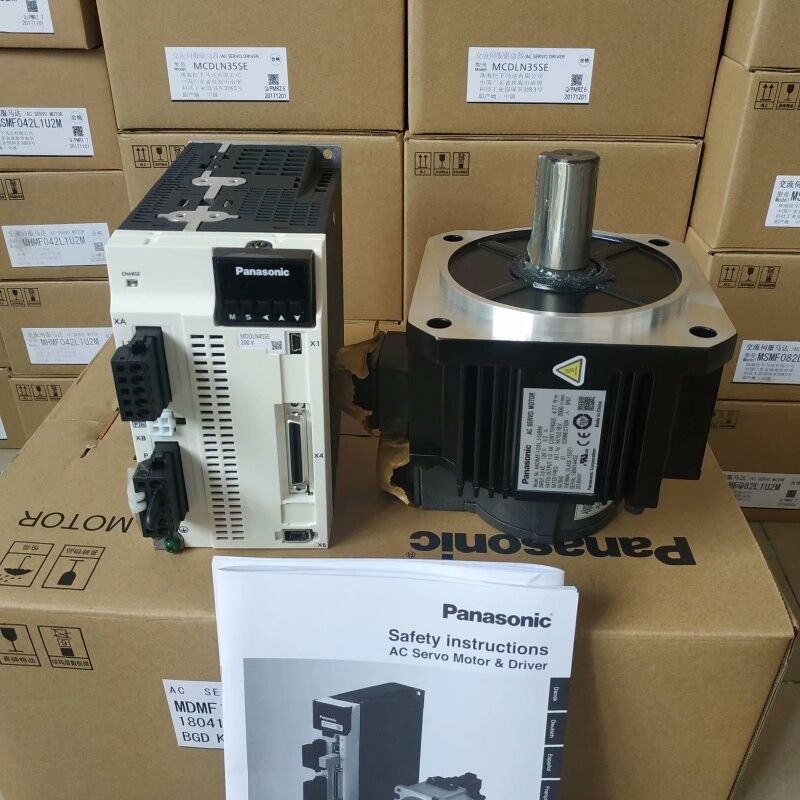

Large Image : Panasonic MDMF152L1G6M + MDDLN55SG 1.5kW Servo Motor & Driver Kit with 23-bit Encoder and RS-485/Modbus for Industrial Automation

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL ROSH
Model Number:	MDMF152L1G6M+MDDLN55SG

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Panasonic MDMF152L1G6M + MDDLN55SG 1.5kW Servo Motor & Driver Kit with 23-bit Encoder and RS-485/Modbus for Industrial Automation

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic AC Servo Driver 2.9kVA , Middle Inertia AC Servo Driver

Panasonic MDMF152L1G6M + MDDLN55SG Servo Motor & Driver Kit

Product Overview

The Panasonic MDMF152L1G6M medium-inertia servo motor and MDDLN55SG servo driver form a high-performance motion control system from the MINAS A6 series. This 1.5kW combination delivers exceptional performance for demanding industrial automation applications including CNC machinery, robotics, automated assembly lines, packaging equipment, and material handling systems.

Product Status: Both components are Active (In Production) - Available for new designs and ongoing production.
RoHS Compliant: Confirmed to meet EU RoHS Directive requirements.

Key Features

MDMF152L1G6M Motor Features

1.5 kW Power Output: 1500W rated output with 200V AC power supply
Medium Inertia Design: Rotor inertia of 9.16 × 10⁻⁴ kg*m² for balanced dynamic response
23-bit High-Resolution Encoder: Absolute/incremental dual-mode encoder with 8,388,608 pulses/revolution
Robust Torque Output: Rated torque of 7.16 N*m, peak torque of 21.5 N*m
Wide Speed Range: Rated speed of 2000 r/min, maximum speed of 3000 r/min
IP67 Protection Rating: Excellent environmental protection against dust and water jets
Durable Construction: Key-way shaft with oil seal for reliable torque transmission
High Load Capacity: Permissible radial load of 490 N and axial load of 196 N during operation

MDDLN55SG Driver Features

A6SG General-Purpose Communication Type: RS-485/Modbus-RTU support for flexible networking
3.2 kHz High-Frequency Response: Industry-leading response for rapid positioning
23-bit High-Resolution Encoder Support: 8,388,608 pulses/revolution resolution
Three Control Modes: Switchable position, velocity, and combined control
Multiple Communication Interfaces: USB, RS-232, RS-485, and Modbus-RTU
RS-485 Multi-Axis Capability: 1:n communication up to 31 axes
Flexible I/O Configuration: 10 programmable inputs and 6 programmable outputs
Compact D-Frame Design: 85mm width for efficient control panel integration

Technical Specifications

MDMF152L1G6M Motor Specifications

Specification	Value
Part Number	MDMF152L1G6M
Rated Output	1500 W (1.5 kW)
Voltage Specifications	200 V AC
Rated Torque	7.16 N*m
Continuous Stall Torque	7.52 N*m
Momentary Max Peak Torque	21.5 N*m
Rated Rotational Speed	2000 r/min
Maximum Rotational Speed	3000 r/min
Rotor Moment of Inertia	9.16 × 10⁻⁴ kg*m²
Encoder Resolution	8,388,608 pulses/revolution (23-bit)
Protection Class	IP67 (excluding shaft and connector pins)
Mass	5.7 kg

MDDLN55SG Driver Specifications

Specification	Value
Part Number	MDDLN55SG
Frequency Response	3.2 kHz
Supply Voltage - Main Circuit	Single/3-phase 200 to 240V AC (+10%/-15%), 50/60 Hz
Current Output	40A (for 1.5kW load)
Encoder Feedback	23-bit (8,388,608 resolution) absolute encoder
Communication Interfaces	USB, RS-232, RS-485, Modbus-RTU
RS-485 Multi-Axis Capability	1:n communication, max 31 axes
Dimensions (W × H × D)	85 × 150 × 170 mm
Mass	2.1 kg

Control Modes (MDDLN55SG)

Control Mode	Description	Typical Applications
Position Control	Pulse train input for precise position command	CNC machinery, pick-and-place, positioning tables
Internal Velocity Command	Internal speed control via parameter settings	Conveyors, constant speed applications
Position/Internal Velocity Control	Switchable between position and speed modes	Multi-process automation equipment

Special Order Notice: Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.
