Panasonic AC Servo Driver 1.5KW MSMF152L1G6M+MDDLN55SG

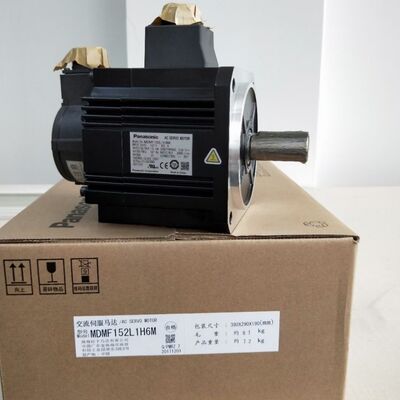

Large Image : Panasonic AC Servo Driver 1.5KW MSMF152L1G6M+MDDLN55SG

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MSMF152L1G6M+MDDLN55SG

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Panasonic AC Servo Driver 1.5KW MSMF152L1G6M+MDDLN55SG

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	IP67 Panasonic AC Servo Driver , Panasonic AC Servo Driver 1.5KW , MDDLN55SG

IP67 Panasonic AC Servo Motor Driver 1.5KW MSMF152L1G6M+MDDLN55SG

Product Overview

Part Number: MSMF152L1G6M

Product Type: Servo Motor

Product Family: MINAS A6 Family Servo Motor

Key Features

Power range: 50 W to 22 kW
Input power supply for Driver: DC 24 V/48 V or AC 100 V/200 V/400 V
23-bit Absolute/Incremental encoder system
Battery-less Absolute/Incremental encoder
High frequency response: 3.2 kHz
Low inertia design with connector type configuration
IP67 protection rating

Technical Specifications

Flange Size	100 mm sq.
Motor Lead-out Configuration	Connector type
Motor Connector	JL10
Encoder Connector	Large size JL10
Power Supply Capacity	2.9 kVA
Voltage Specifications	200 V
Rated Output	1500 W
Rated Current	8.2 A rms
Holding Brake	Without
Mass	4.6 kg
Oil Seal	With
Shaft Type	Key-way

Performance Characteristics

Rated Torque	4.77 N⋅m
Continuous Stall Torque	5.72 N⋅m
Momentary Max. Peak Torque	14.3 N⋅m
Max. Current	35 A 0-p
Rated Rotational Speed	3000 r/min
Max. Rotational Speed	5000 r/min
Inertia of Rotor	3.10 * 10⁻⁴ kg⋅m²
Recommended Inertia Ratio	15 times or less
Rotary Encoder Resolution	8,388,608

Permissible Load Specifications

During Assembly - Radial Load (P-direction)	980 N
During Assembly - Thrust Load (A-direction)	588 N
During Assembly - Thrust Load (B-direction)	686 N
During Operation - Radial Load (P-direction)	490 N
During Operation - Thrust Load (A, B-direction)	196 N

Compatible Drivers

Part Number	Series	Type	Interface	Frame	Supply Voltage
MDDLN55NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLN55SE	A6SE series	Position control type	Pulse train only	D-Frame	Single/3-phase 200 V
MDDLN55SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485 /RS232)	D-Frame	Single/3-phase 200 V
MDDLT55NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLT55SF	A6SF series	Multifunction type	Analog /Pulse, Modbus (RS485 /RS232)	D-Frame	Single/3-phase 200 V

Important Notice: When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.

Additional Information

Special Order Product: Please avoid distributing the motor, or equipment containing the motor, to Japan or other regions through Japan.

Environmental Conditions: For more details, please refer to the instruction manual.
