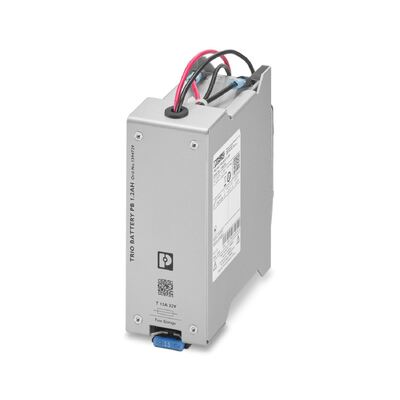

The perfect addition to the TRIO UPS modules. Battery modules with lead AGM technology are fully charged before being sent to our warehouse.
| General | |
| Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”. |
| Input | |
| Input voltage | 24 V DC (SELV) |
| Nominal capacity | 1.2 Ah |
| Charging current | max. 0.36 A |
| End-of-charge voltage | 27.6 V (20 °C) |
| Output | |
| Output current | max. 15 A |
| Output fuse | 1x 15 A T 15A 32V, ATOF 287 from Littelfuse |
| Buffer time | 20 min (2 A) |
| 5 min (5 A) | |
| End-of-discharge voltage | 19.2 V |
| General | |
| Connection in parallel | yes |
| Battery type | BB Battery BP1.2-12FR |
| Battery technology | VRLA-AGM |
| IQ-Technology | no |
| Latest startup date (battery only) | 6 Months (-20 °C ... 20 °C) |
| 3 Months (25 °C) | |
| 1 Months (30 °C) | |
| Accumulator module service life (according to Eurobat) | 6 (20 °C) |
| Size designation | Block |
| Temperature sensor | no |
| Product family | Battery module (device with battery) |
| Application | TRIO-UPS-2G |
| Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. |
| Insulation characteristics | |
| Protection class | III |
| Degree of pollution | 2 |
| Item dimensions | |
| Width | 52 mm |
| Height | 141 mm |
| Depth | 108 mm |
| Installation dimensions | |
| Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 5 mm / 5 mm |
| Mounting type | DIN rail mounting |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
