Yaskawa SGD7S Sigma-7 Series 1.5kW 200VAC Servo Drive with Coated PCB for Harsh Environments

Large Image : Yaskawa SGD7S Sigma-7 Series 1.5kW 200VAC Servo Drive with Coated PCB for Harsh Environments

Product Details:

Place of Origin:	Japan
Brand Name:	Yaskawa
Model Number:	SGD7S-120A00A002

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Yaskawa SGD7S Sigma-7 Series 1.5kW 200VAC Servo Drive with Coated PCB for Harsh Environments

Description

Condition:

Yaskawa Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

1.5KW AC Servo Amplifier

200V Input Servo Driver

3.1 kHz Frequency Response SERVOPACK

Yaskawa SGD7S-120A00A002 Sigma-7 Series Single Axis Servo Drive – 1.5kW 200VAC

Yaskawa SGD7S-120A00A002 Sigma-7 servo drive. 1.5kW, 200V 3-phase, analog/pulse interface, coated PCB, 3.1 kHz response, STO SIL3. In stock.

Product Overview

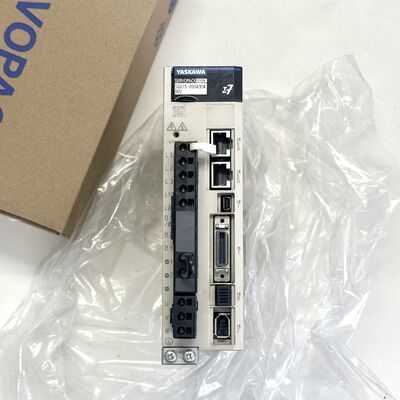

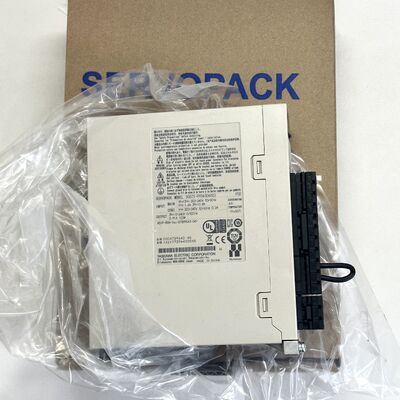

The Yaskawa SGD7S-120A00A002 is a high-performance single-axis servo drive from Yaskawa's industry-leading Sigma-7 Series (Σ-7 Series). This 1.5kW model features an analog voltage/pulse train reference interface and includes a special coating/painting specification, making it ideal for demanding industrial automation applications in harsh or humid environments.

Key differentiators:

Coating/painting specification (002) - Enhanced protection for harsh/humid environments
Analog voltage/pulse train interface - Flexible control options
3.1 kHz speed frequency response - Industry-leading dynamic performance
STO SIL3 safety functions - Built-in functional safety
Tuning-less operation - Advanced autotuning with inertia change tolerance up to 30:1

Technical Specifications

Parameter	Value
Manufacturer	Yaskawa Electric Corporation
Series	Sigma-7 Series / Σ-7 Series
Product Type	Single Axis Servo Drive (SERVOPACK)
Maximum Applicable Motor Capacity	1.5 kW
Input Voltage	200 VAC
Input Phase	3-Phase
Interface Type	Analog Voltage / Pulse Train Reference
Speed Frequency Response	3.1 kHz

Environmental Specifications

Parameter	Value
Operating Temperature	-5°C to 55°C (with derating to 60°C)
Storage Temperature	-20°C to 85°C
Operating/Storage Humidity	95% RH max (with no freezing or condensation)
Degree of Protection	IP20

Certifications

CE Certified
UL Certified (UL 61800-5-1)
CSA Certified (CSA C22.2 No.274)
EN Standards Compliant
RoHS Compliant

Core Features & Benefits

Industry-Leading Speed Response
The Sigma-7 series delivers a 3.1 kHz speed frequency response - significantly higher than previous generations and many competitors. This enables faster command following, reduced settling time, and improved machine throughput.

Coating/Painting Specification for Harsh Environments
The "002" suffix indicates a special coating/painting specification that protects the drive's printed circuit boards from moisture, dust, and corrosive environments. This variant is ideal for:

Food processing machinery
Chemical processing equipment
Outdoor installations
High-humidity environments

Built-in Functional Safety
The SGD7S-120A00A002 includes advanced safety functions as standard, eliminating the need for external safety modules and reducing system cost and complexity.

Applications

The Yaskawa SGD7S-120A00A002 is engineered for demanding motion control applications requiring high precision and dynamic performance.

Primary Applications:

CNC Machine Tools - High-speed feed axis control for milling, turning, and grinding machines
Semiconductor Manufacturing Equipment - Precision wafer handling and inspection systems
PCB Drilling Machines - High-speed, high-precision positioning for circuit board manufacturing
Electronic Component Packaging Machines - High-speed component placement
IC Information Processors and Inspection Equipment - Precision motion control

Compatibility & System Integration

Compatible Motors
The SGD7S-120A00A002 is designed for use with Yaskawa Sigma-7 series rotary motors:

Motor Series	Characteristics	Best For
SGM7A Series	High-performance, 3000 RPM max, 24-bit encoder	General automation, high precision
SGM7G Series	High torque, 1500 RPM, 24-bit encoder	High inertia loads, machine tools
SGM7J Series	High speed, 6000 RPM max, 24-bit encoder	High-speed positioning
SGM7P Series	Flat/compact design, 3000 RPM, 24-bit absolute encoder	Space-constrained applications

Common Matching Set:

SGD7S-120A00A002 + SGM7G-13A7C61 (1.3kW, medium inertia, absolute encoder, 1500 RPM, 8.34 N*m torque)
