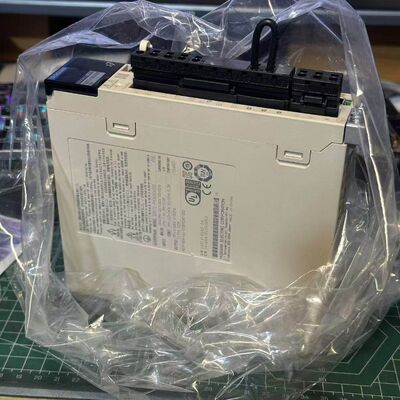

Yaskawa SGD7S-1R6A00A 200W Servo Drive with 3.1kHz Frequency Response and 24-bit Encoder Support

Large Image : Yaskawa SGD7S-1R6A00A 200W Servo Drive with 3.1kHz Frequency Response and 24-bit Encoder Support

Product Details:

Place of Origin:	Japan
Brand Name:	Yaskawa
Certification:	CE UL ROSH
Model Number:	SGD7S-1R6A00A002

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

Yaskawa SGD7S-1R6A00A 200W Servo Drive with 3.1kHz Frequency Response and 24-bit Encoder Support

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Yaskawa 200W servo driver

AC servo driver with warranty

SGD7S-1R6A00A002 servo driver

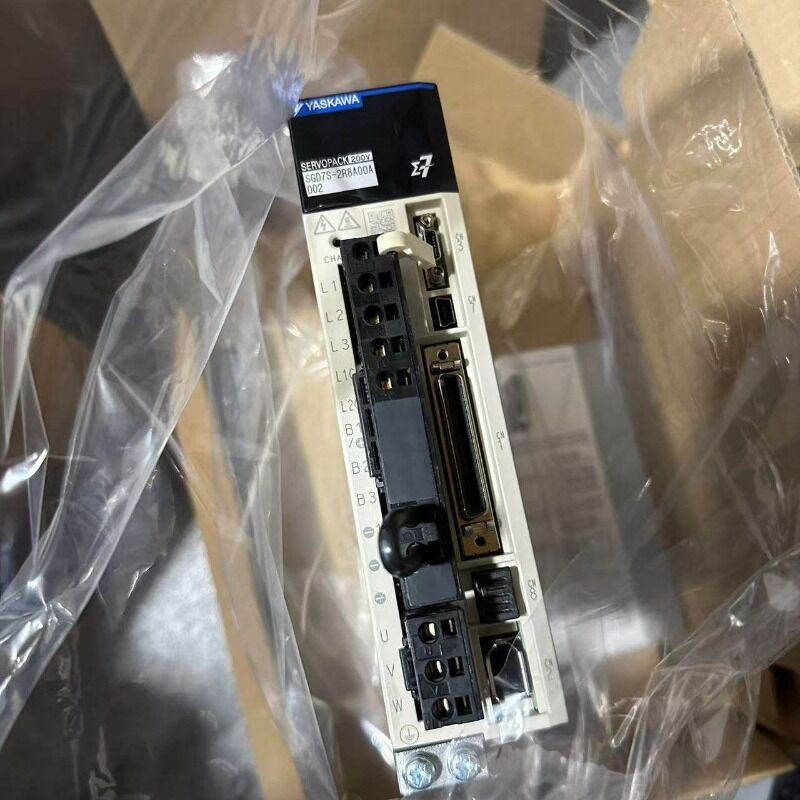

Yaskawa SGD7S-1R6A00A / SGD7S-1R6A00A002 Servo Drive - 200W Sigma-7

Yaskawa SGD7S-1R6A00A | Sigma-7 Series 200W (0.2kW) AC Servo Drive

Product Overview

The Yaskawa SGD7S-1R6A00A (including the hardware-refined SGD7S-1R6A00A002) is a high-performance 200W AC Servo Amplifier. Representing the pinnacle of the Sigma-7 Series, this drive is designed for applications where speed, precision, and space-saving are critical requirements.

Operating on a single-phase 200V-230V input, the SGD7S-1R6A00A delivers a 3.1kHz speed frequency response, virtually eliminating mechanical lag and ensuring ultra-fast settling times. Its advanced vibration suppression and "Tuningless" functionality make it the premier choice for high-speed SMT placement, semiconductor handling, and precision medical automation.

Technical Specifications

Essential data for engineers and system integrators:

Feature	Specification
Model Number	SGD7S-1R6A00A / SGD7S-1R6A00A002
Series	Sigma-7 (Σ-7)
Rated Output	200 W (0.2 kW)
Input Voltage	Single-Phase 200V - 230V AC
Continuous Output Current	1.6 Arms
Max Output Current	4.9 Arms
Frequency Response	3.1 kHz (Industry Leading)
Encoder Support	24-bit High-Resolution Serial Encoders
Safety Standard	SIL3 / PLe (Safe Torque Off)

Key Features & Industrial Benefits

1. Superior 3.1kHz Response Frequency

The Sigma-7 architecture provides the fastest bandwidth in the industry. For 200W applications, this means near-instantaneous command following, allowing your machinery to achieve higher cycle rates and better accuracy during high-speed direction changes.

2. Yaskawa "Tuningless" Functionality

The SGD7S-1R6A00A automatically detects and adapts to mechanical load changes without requiring manual PID tuning. This feature ensures stable operation even with inertia ratios up to 30:1, significantly reducing commissioning time for complex multi-axis machines.

3. Precision 24-bit Positioning

When paired with Sigma-7 motors, the drive supports 24-bit feedback (16.7 million pulses per revolution). This high resolution allows for sub-micron precision and ultra-smooth rotation at very low speeds, which is essential for high-end optical and semiconductor equipment.

4. Advanced Vibration & Ripple Suppression

Built-in notch filters and ripple compensation algorithms actively suppress mechanical resonance and torque ripple. This results in smoother motion, quieter operation, and extended mechanical life for ball screws and gearboxes.

Primary Industrial Applications

Electronic Assembly: SMT pick-and-place, soldering robots, and PCB inspection.
Semiconductor Tools: Wafer handling, dicing, and wire bonding axes.
Medical Automation: Diagnostic scanners, laboratory liquid handling, and surgical robots.
3C Testing: High-speed button and screen durability testers for mobile devices.
Precision Packaging: High-accuracy labeling and small-scale filling systems.

Why Choose Our Stock?

100% Genuine Yaskawa: New, original, and factory-sealed units.
Fast Global Shipping: Express delivery via DHL, FedEx, or UPS.
Technical Support: Expert matching with SGM7J-02A or SGM7A-02A motors.
Authenticity Guaranteed: Full serial number tracking for every unit.
