Tamagawa TS5000N632 Incremental Encoder OIS68 Series Brushless Resolvers

The Tamagawa TS5000N632 is a high-performance incremental optical encoder from the OIS68 series, manufactured by Tamagawa Seiki Co., Ltd. - a world-leading Japanese manufacturer of precision sensors and motion control components.

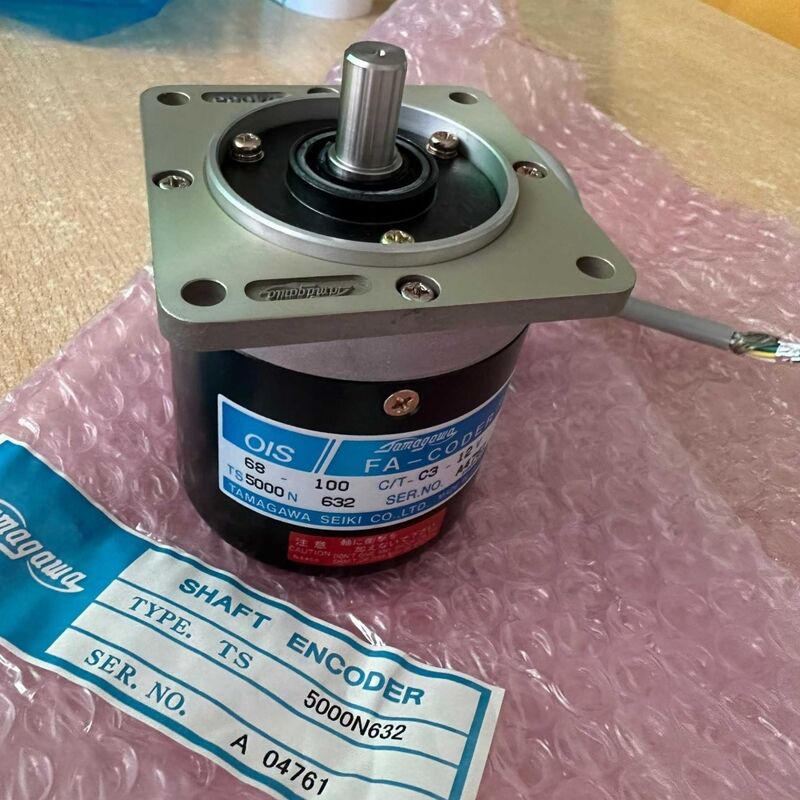

This encoder features a 68mm square hollow shaft design and provides up to 5000 PPR resolution with A, B, Z phase output signals. It is specifically designed for industrial automation applications requiring precise position and speed feedback, including machine tools, robots, X-Y work platforms, and servo motor control systems.

• High-Resolution Optical Sensing: Up to 5000 counts per turn (PPR) provides precise position and speed feedback for servo control. Optical sensing technology ensures reliable, high-precision incremental position measurement.
• Square Hollow Shaft Design: 68mm square form factor with hollow shaft for through-shaft mounting. Eliminates the need for flexible couplings - simplifies installation and improves reliability.
• 3-Phase Output (A, B, Z): A Phase and B Phase with 90° electrical phase difference for direction detection. Z Phase provides one origin/index pulse per revolution for homing.
• Flexible Output Options: Available in Line Driver (differential), Open Collector, or Voltage Output forms. Wide voltage compatibility: DC 5-15V for flexible system integration.
• Robust Construction: Reinforced shaft design for heavy-duty applications. High load capacity: 98N radial load, 49N axial load. IP52 protection rating - dust-protected for industrial environments. 10G vibration resistance and 100G shock resistance for harsh operating conditions.
• High-Speed Performance: 125 kHz maximum response frequency for high-speed motor and servo applications.
