Delta ECMA-E21310RS 1KW AC Servo Motor 220V 3000rpm 3.18Nm High Precision 17-Bit Encoder for CNC Robotics Automation

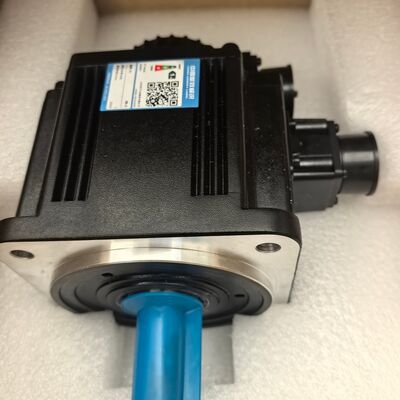

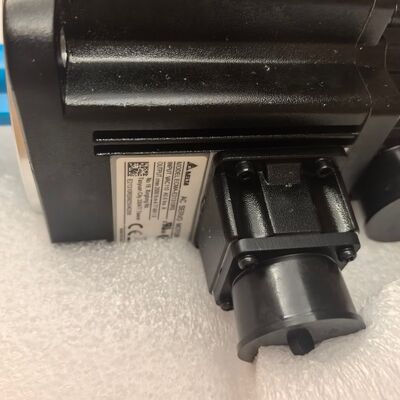

Large Image : Delta ECMA-E21310RS 1KW AC Servo Motor 220V 3000rpm 3.18Nm High Precision 17-Bit Encoder for CNC Robotics Automation

Product Details:

Place of Origin:	Taiwan
Brand Name:	Delta
Certification:	CE UL
Model Number:	ECMA-E21310RS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Delta original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

Delta ECMA-E21310RS 1KW AC Servo Motor 220V 3000rpm 3.18Nm High Precision 17-Bit Encoder for CNC Robotics Automation

Description

Condition:

Delta Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Packaging Machine, Cnc Machine Etc.

Highlight:

1KW Delta ECMA servo motor

ECMA-E21310RS AC servo motor

Delta ECMA series servo motor

Delta ECMA-E21310RS 1KW AC Servo Motor

The Delta ECMA-E21310RS is a 1kW medium-inertia AC servo motor from the ASDA-B2 series, engineered for high-precision motion control applications. Featuring a 17-bit incremental encoder (160,000 p/rev) and a shaft with keyway and oil seal, this motor delivers exceptional performance for CNC machinery, robotics, and industrial automation systems.

Technical Specifications

Parameter	Specification
Model	ECMA-E21310RS
Series	ASDA-B2 Series / ECMA-E Series
Output Power	1 kW (1000W)
Rated Speed	2000 rpm
Rated Torque	4.77 N*m
Peak Torque	14.31 N*m
Input Voltage	200-230V AC, Three Phase
Rated Current	5.6 A
Peak Current	16.8 A
Encoder Type	17-bit Incremental (160,000 p/rev)
Frame Size	130 mm x 130 mm
Shaft Type	Keyway with Oil Seal
Brake	No (RS model = without brake)
Inertia Type	Medium Inertia
Protection Rating	IP65
Weight	Approx. 7 kg
Operating Temperature	0°C ~ 40°C
Certifications	CE, UL, cUL, RoHS

Note: Some sources indicate rated speed as 2000 rpm with 4.77 N*m torque, while others reference 3000 rpm with 3.18 N*m torque for similar models. Please verify based on your specific application requirements.

Key Features

High Precision Positioning

17-bit high-resolution incremental encoder (160,000 pulses per revolution) provides exceptional positioning accuracy
Ensures smooth low-speed operation for precise motion control applications

Robust Mechanical Design

Shaft with keyway ensures secure torque transmission and prevents slippage
Oil seal provides protection against oil ingress, extending motor life in harsh industrial environments

Medium Inertia Design

Medium inertia design offers balanced performance for applications requiring both responsiveness and load stability
Optimized for systems where load inertia is close to motor inertia

Plug-and-Play Compatibility

Designed to pair seamlessly with Delta ASD-B2-1021-B servo drive
Auto-identification by the drive for quick setup and commissioning

Durable Construction

IP65 protection rating – dust-tight and protected against water jets
Suitable for demanding industrial environments with exposure to dust, moisture, and oils

Energy Efficient

Efficient power consumption reduces operational costs
Built with high-quality materials for long-term reliability

Model Number Breakdown

Code	Position	Meaning
ECMA	Prefix	Electric Commutated Motor (Delta Servo Motor)
E	Frame Series	130mm Frame Size
2	Encoder Type	17-bit Incremental
13	Frame Size Code	130mm
10	Output Power	1000W (1kW)
R	Shaft Type	Keyway
S	Termination	Standard Connector (without Brake)

Applications

Industry	Application Examples
CNC Machinery	Milling machines, lathes, engraving machines, tool changers
Robotics	Articulated arms, pick-and-place systems, palletizing robots
Packaging	Filling machines, sealing machines, labeling equipment, cutters
Textile	Winding machines, looms, embroidery equipment
Printing	High-precision registration systems, printing presses
General Automation	Conveyors, feeders, dispensing machines, cutting machines
Material Handling	Automated guided vehicles (AGVs), conveyor systems

The ASDA-B2 series is particularly suitable for applications requiring tool magazine control in machining centers, indexing and assembly systems, sealing and cutting machinery, high-speed winding machines, and PCB dispensing equipment.

Matching Drive

The ECMA-E21310RS is designed to pair with Delta ASDA-B2 series servo drives:

Drive Model	Power	Communication	Description
ASD-B2-1021-B	1kW	Pulse / RS-485	Standard model for general automation
ASD-B2-1021-F	1kW	CANopen	For networked multi-axis systems

Drive Features:

Supports 17-bit encoder interface
Built-in position, speed, and torque control modes
Auto-tuning and vibration suppression functions
Modbus communication (RS-485/RS-232)

Accessories

Accessory	Description
Power Cable	For motor power connection (length options available)
Encoder Cable	Feedback cable for encoder connection
Connector Kit	CN1 I/O connector, CN2 encoder connector

Key Benefits

Benefit	Description
High Precision	17-bit encoder provides exceptional positioning accuracy
Reliable Operation	IP65 rating and oil seal ensure durability in harsh environments
Easy Integration	Plug-and-play compatibility with Delta B2 series drives
Secure Torque Transmission	Keyway shaft prevents slippage under load
Proven Performance	Widely used in industrial automation worldwide
Energy Efficient	Reduces operational costs while maintaining performance

Certifications & Compliance

CE certified – complies with European safety standards
UL / cUL certified – recognized for North American markets
RoHS compliant – environmentally friendly manufacturing

Ordering Information

Item	Details
Manufacturer	Delta Electronics, Inc.
Part Number	ECMA-E21310RS
Part Status	Active (verify availability)
Packaging	Factory sealed box
Warranty	1 year (subject to supplier terms)

Need support?

Contact us for technical specifications and datasheets, volume pricing and availability, matching drive (ASD-B2-1021-B), cable and accessory recommendations, and customization options (brake, absolute encoder, etc.).
