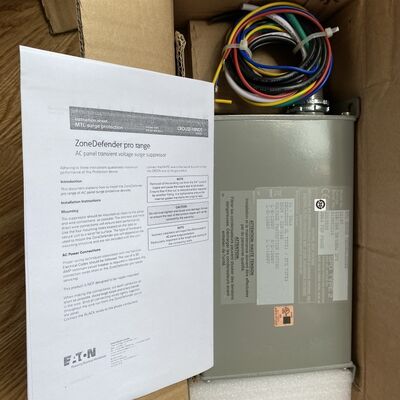

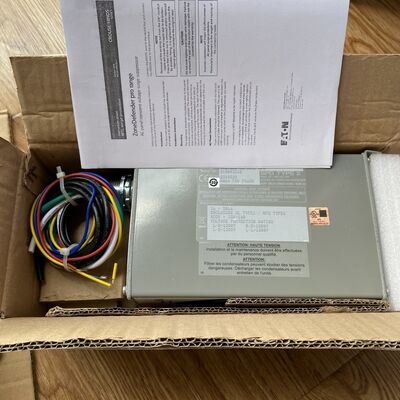

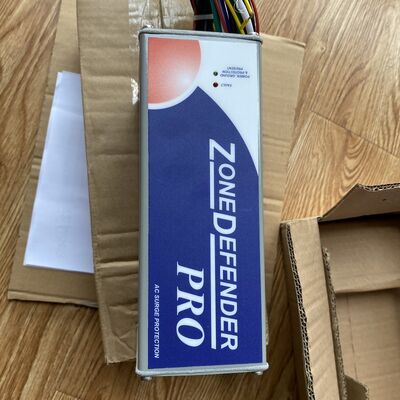

MTL Zone Defender Pro Surge Protector ZD16107 240 Vac Single Phase 2 Wire TT

Large Image : MTL Zone Defender Pro Surge Protector ZD16107 240 Vac Single Phase 2 Wire TT

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	ZD16107

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL Zone Defender Pro Surge Protector ZD16107 240 Vac Single Phase 2 Wire TT

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	MTL Zone Defender Pro , Zone Defender Pro 240 Vac , ZD16107

Eaton Crouse-Hinds series MTL ZoneDefender Pro surge protector, 240 Vac, Single-phase 2-wire TT, 80kA max. surge current, Surface mount, Type 2

Product Name	Eaton Crouse-Hinds series MTL ZoneDefender Pro surge protector
Product Name	Eaton Crouse-Hinds series MTL ZoneDefender Pro surge protector
Catalog Number	ZD16709
Product Length/Depth	127 mm
Product Height	125.2 mm
Product Width	78 mm
Product Weight	1.6 kg
Certifications	UL1449
Global Catalog	ZD16709
Product Type	Surge protector
Product Type	Surge protector

Area classification	Ordinary/Non-Hazardous Locations
Standards type	NEC/CEC IEC
NEMA Rating	3 1 12 13 4X 3R 4
Ingress protection (IP) ratings	IP66
Mounting Method	Surface
Nominal Voltage AC	240 Vac
Max. Discharge Surge Current (8/20µS)	80kA
Minimum Ambient Operating Temperature	-40 °C
Maximum Ambient Operating Temperature	85 °C
Humidity	95% RH, non-condensing
Modes	Line/Neutral, Line/Ground, Line/Line, Neutral/Ground
Phase Type	Single-phase 2-wire TT
Conductor Cross-section AWG	5mm2 (10 AWG)
Type	Type 2
IEC Test Classification	IEC 61643-11:2011
Frequency	47-63 Hz
EN Test Classification	EN 61326-1:2013

MTL Zone Defender Pro Surge Protector ZD16107 240 Vac Single Phase 2 Wire TT 0

MTL Zone Defender Pro Surge Protector ZD16107 240 Vac Single Phase 2 Wire TT 1

MTL Zone Defender Pro Surge Protector ZD16107 240 Vac Single Phase 2 Wire TT 2

MTL Zone Defender Pro Surge Protector ZD16107 240 Vac Single Phase 2 Wire TT 3
