MSMF082L1U2M Panasonic 750W AC Servo Motor

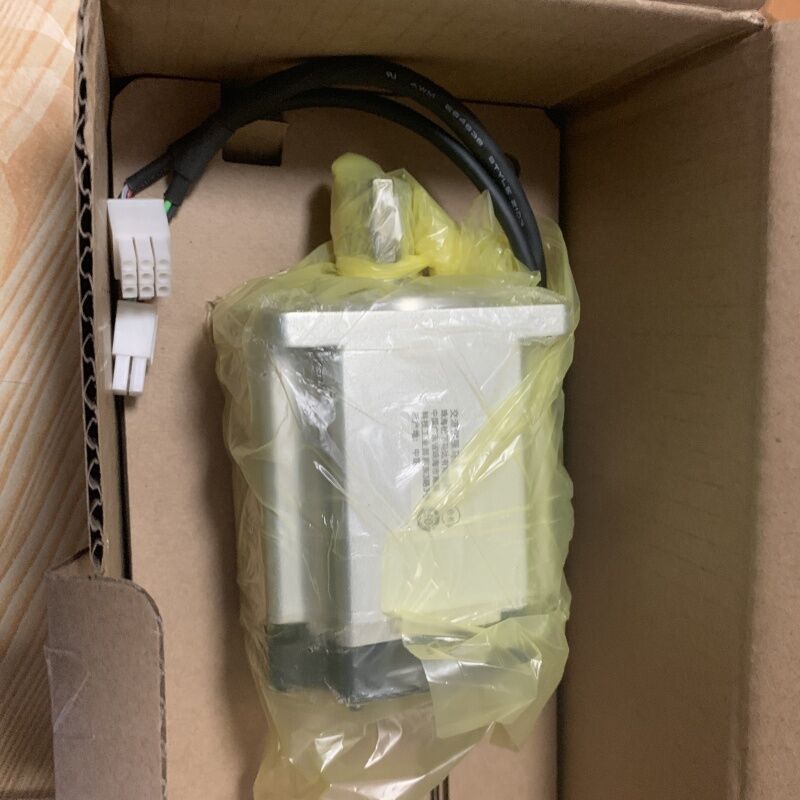

Large Image : MSMF082L1U2M Panasonic 750W AC Servo Motor

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MSMF082L1U2M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MSMF082L1U2M Panasonic 750W AC Servo Motor

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 750W AC servo motor , Panasonic servo motor with driver , 750W AC servo motor with warranty

MSMF082L1U2M Panasonic 750W AC Servo Motor

Product Overview

Part Number	MSMF082L1U2M
Product Type	Servo Motor
Configuration	Low inertia, Lead wire type
Product Family	MINAS A6 Family Servo Motor

Key Features

Power range: 50 W to 22 kW
Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V
23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder
Frequency response 3.2 kHz

Technical Specifications

Part Number	MSMF082L1U2M
Product Details	Low inertia, Lead wire type
Family Name	MINAS A6
Series	MSMF Series
Type	Low inertia
Protection Class	IP65
Flange Size	80 mm sq.
Motor Configuration	Lead wire
Power Supply Capacity	1.8 kVA
Voltage Specifications	200 V
Rated Output	750 W
Rated Current	4.1 A rms
Holding Brake	without
Mass	2.3 kg
Oil Seal	with
Shaft	Key-way, center tap
Rated Torque	2.39 N⋅m
Continuous Stall Torque	2.39 N⋅m
Momentary Max. Peak Torque	7.16 N⋅m
Max. Current	17.4 A 0-p
Rated Rotational Speed	3000 r/min
Max. Rotational Speed	6000 r/min
Inertia of Rotor	0.96 x10⁻⁴ kg⋅m²
Recommended Inertia Ratio	20 times or less
Rotary Encoder	23-bit Absolute/Incremental system
Encoder Resolution	8388608

Special Order Product: Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.

Enclosure: Except rotating portion of output shaft and leadwire end.

Regenerative brake frequency: Without option - No limit; With option - No limit (Option Part No.: DV0P4283)

Permissible Load Specifications

During Assembly: Radial Load P-direction	686 N
During Assembly: Thrust Load A-direction	294 N
During Assembly: Thrust Load B-direction	392 N
During Operation: Radial Load P-direction	392 N
During Operation: Thrust Load A, B-direction	147 N

For detailed permissible load specifications, refer to the Motor Specification Description "Permissible Load at Output Shaft".

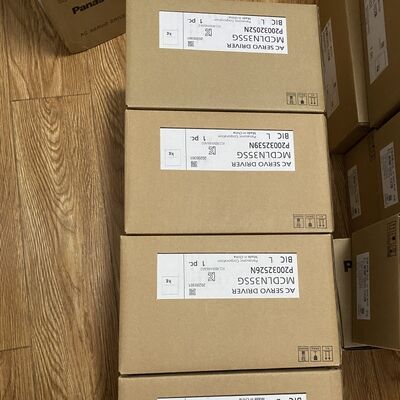

Compatible Drivers

Part Number	Series	Type	I/F Classification	Frame	Supply Voltage
MCDLN35NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	C-Frame	Single/3-phase 200 V
MCDLN35SE	A6SE series	Position control type	Pulse train only	C-Frame	Single/3-phase 200 V
MCDLN35SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485 /RS232)	C-Frame	Single/3-phase 200 V
MCDLT35NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	C-Frame	Single/3-phase 200 V
MCDLT35SF	A6SF series	Multifunction type	Analog /Pulse, Modbus (RS485 /RS232)	C-Frame	Single/3-phase 200 V

Specifications and design of the products are subject to change without notice for product improvement.

Torque Characteristics

Torque characteristic diagrams and performance curves available upon request.
