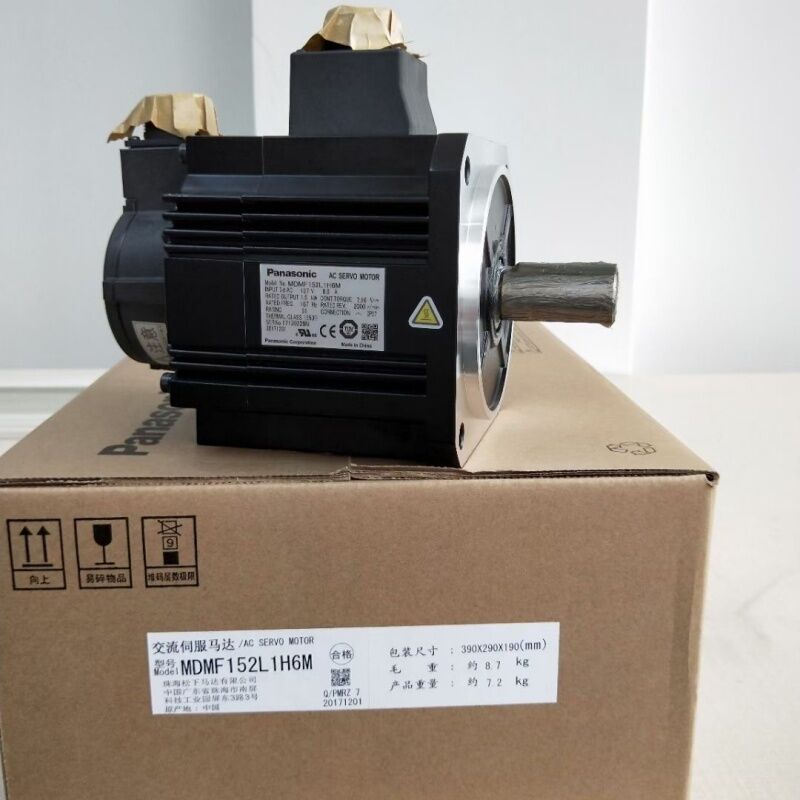

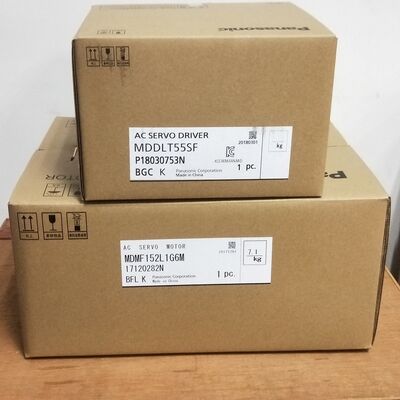

MSMF152L1G6M Panasonic 1.5KW AC Servo Motor

MSMF152L1G6M Panasonic 1.5KW AC Servo Motor
MSMF152L1G6M Panasonic 1.5KW AC Servo Motor MSMF152L1G6M Panasonic 1.5KW AC Servo Motor

Large Image :  MSMF152L1G6M Panasonic 1.5KW AC Servo Motor

Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Model Number: MSMF152L1G6M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MSMF152L1G6M Panasonic 1.5KW AC Servo Motor

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

Panasonic 1.5KW AC servo motor

,

Panasonic AC servo motor driver

,

1.5KW servo motor with warranty

MSMF152L1G6M Panasonic 1.5KW AC Servo Motor
Product Overview
Part Number MSMF152L1G6M
Product Type Servo Motor
Product Family MINAS A6 Family Servo Motor
Key Features Low inertia, Connector type
Technical Specifications
Rated Output 1500 W
Rated Torque 4.77 N⋅m
Continuous Stall Torque 5.72 N⋅m
Max. Peak Torque 14.3 N⋅m
Rated Rotational Speed 3000 r/min
Max. Rotational Speed 5000 r/min
Rated Current 8.2 A rms
Max. Current 35 A 0-p
Rotor Inertia 3.10 × 10⁻⁴ kg⋅m²
Flange Size 100 mm sq.
Protection Class IP67
Mass 4.6 kg
Shaft Type Key-way
Oil Seal with
Holding Brake without
Encoder Specifications
Encoder Type 23-bit Absolute/Incremental system
Resolution 8,388,608
Motor Connector JL10
Encoder Connector Large size JL10
Important Notice: When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Permissible Load
During Assembly - Radial Load (P-direction) 980 N
During Assembly - Thrust Load (A-direction) 588 N
During Assembly - Thrust Load (B-direction) 686 N
During Operation - Radial Load (P-direction) 490 N
During Operation - Thrust Load (A, B-direction) 196 N
Applicable Drivers
Part Number Series Type Interface Frame Supply Voltage
MDDLN55NE A6NE series RTEX, Ultra high-speed Network (Basic type) RTEX D-Frame Single/3-phase 200 V
MDDLN55SE A6SE series Position control type Pulse train only D-Frame Single/3-phase 200 V
MDDLN55SG A6SG series RS485/RS232 Communication type Pulse, Modbus (RS485 /RS232) D-Frame Single/3-phase 200 V
MDDLT55NF A6NF series RTEX, Ultra high-speed Network type (Multi type) RTEX D-Frame Single/3-phase 200 V
MDDLT55SF A6SF series Multifunction type Analog /Pulse, Modbus (RS485 /RS232) D-Frame Single/3-phase 200 V
Special Order Information
Important: Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Product Features
  • Power range: 50 W to 22 kW
  • Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V
  • 23-bit Absolute/Incremental・battery-less Absolute/Incremental encoder
  • Frequency response: 3.2 kHz
  • Recommended inertia ratio: 15 times or less
  • Regenerative brake frequency: No limit (with or without option)
Note: Specifications and design of the products are subject to change without notice for product improvement.
