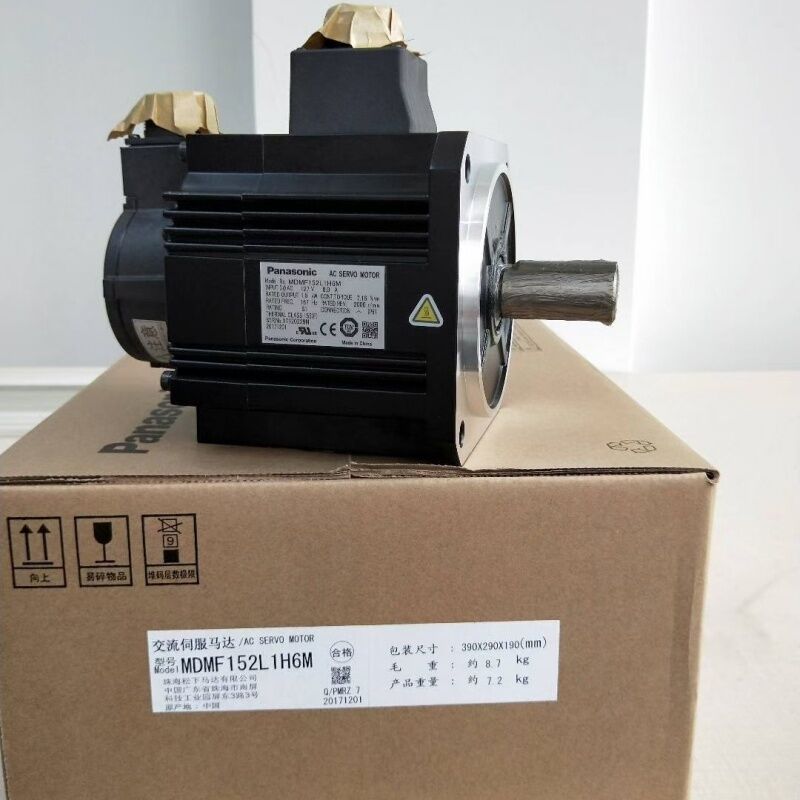

MDMF152L1G6M Panasonic 1.5KW AC Servo Motor

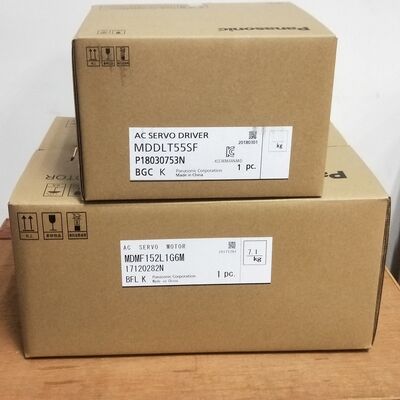

Large Image : MDMF152L1G6M Panasonic 1.5KW AC Servo Motor

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MDMF152L1G6M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MDMF152L1G6M Panasonic 1.5KW AC Servo Motor

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 1.5KW AC servo motor , Panasonic AC servo motor driver , 1.5KW servo motor with warranty

MDMF152L1G6M Panasonic 1.5KW AC Servo Motor

Product Overview

Part Number	MDMF152L1G6M
Product	Servo Motor
Product Name	MINAS A6 Family Servo Motor
Details	Middle inertia, Connector type

Key Features

Power range: 50 W to 22 kW
Input power supply for Driver: DC 24 V/48 V or AC 100 V/200 V/400 V
23-bit Absolute/Incremental encoder with battery-less option
High frequency response: 3.2 kHz

Technical Specifications

Family Name	MINAS A6
Series	MDMF Series
Type	Middle inertia
Protection Class	IP67 (excluding rotating portion of output shaft and connector pins)
Flange Size	130 mm square
Motor Lead-out Configuration	Connector type
Motor Encoder Connector	Motor connector: JL10, Encoder connector: Large size JL10
Power Supply Capacity	2.9 kVA
Voltage Specifications	200 V
Rated Output	1500 W
Rated Current	8.0 A rms (reference value)
Holding Brake	Without
Mass	5.7 kg
Oil Seal	With
Shaft	Key-way

Performance Specifications

Rated Torque	7.16 N⋅m
Continuous Stall Torque	7.52 N⋅m
Momentary Max. Peak Torque	21.5 N⋅m
Max. Current	34 A 0-p (reference value)
Regenerative Brake Frequency	Without option: No limit With option: No limit External regenerative resistor Part No.: DV0P4284
Rated Rotational Speed	2000 r/min
Max. Rotational Speed	3000 r/min
Inertia of Rotor	9.16 × 10⁻⁴ kg⋅m²
Recommended Inertia Ratio	10 times or less
Rotary Encoder	23-bit Absolute/Incremental system
Encoder Resolution	8,388,608

Important Notice: When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.

Special Order Product: Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.

Permissible Load Specifications

During Assembly - Radial Load P-direction	980 N
During Assembly - Thrust Load A-direction	588 N
During Assembly - Thrust Load B-direction	686 N
During Operation - Radial Load P-direction	490 N
During Operation - Thrust Load A, B-direction	196 N

For detailed permissible load specifications, refer to the "Permissible Load at Output Shaft" section in the Motor Specification Description.

Applicable Drivers

Specifications and design of the products are subject to change without notice for product improvement.

Part Number	Series	Type	I/F Classification	Frame	Supply Voltage
MDDLN55NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLN55SE	A6SE series	Position control type	Pulse train only	D-Frame	Single/3-phase 200 V
MDDLN55SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485/RS232)	D-Frame	Single/3-phase 200 V
MDDLT55NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLT55SF	A6SF series	Multifunction type	Analog/Pulse, Modbus (RS485/RS232)	D-Frame	Single/3-phase 200 V

Torque Characteristics

Specifications and design of the products are subject to change without notice for product improvement.

Dotted line represents the torque at 10% less supply voltage.

Dimensions

Specifications and design of the products are subject to change without notice for product improvement.

[Unit: mm]
