MHMF152L1G6M Panasonic 1.5KW AC Servo Motor

Large Image : MHMF152L1G6M Panasonic 1.5KW AC Servo Motor

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMF152L1G6M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MHMF152L1G6M Panasonic 1.5KW AC Servo Motor

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 1.5KW AC servo motor , Panasonic servo motor with driver , 1.5KW AC motor with warranty

MHMF152L1G6M Panasonic 1.5KW AC Servo Motor

Product Overview

The MHMF152L1G6M is a high-performance AC servo motor from Panasonic's MINAS A6 Family, designed for demanding industrial applications requiring precision motion control.

Key Features

Power range: 50 W to 22 kW capability
Multiple input power supply options: DC 24V/48V or AC 100V/200V/400V
High-resolution 23-bit Absolute/Incremental encoder system
Battery-less Absolute/Incremental encoder option
Exceptional frequency response: 3.2 kHz
IP67 protection rating for harsh environments
High inertia design for stable operation

Technical Specifications

Parameter	Specification
Part Number	MHMF152L1G6M
Rated Output	1500 W
Rated Torque	7.16 N⋅m
Continuous Stall Torque	7.52 N⋅m
Max. Peak Torque	21.5 N⋅m
Rated Rotational Speed	2000 r/min
Max. Rotational Speed	3000 r/min
Rated Current	8.0 A rms
Max. Current	34 A 0-p
Rotor Inertia	33.4 × 10⁻⁴ kg⋅m²
Flange Size	130 mm sq.
Mass	7.7 kg
Protection Class	IP67
Shaft Configuration	Key-way
Encoder Resolution	8,388,608 (23-bit)

Permissible Load Specifications

Load Type	During Assembly	During Operation
Radial Load (P-direction)	980 N	490 N
Thrust Load (A-direction)	588 N	196 N
Thrust Load (B-direction)	686 N	196 N

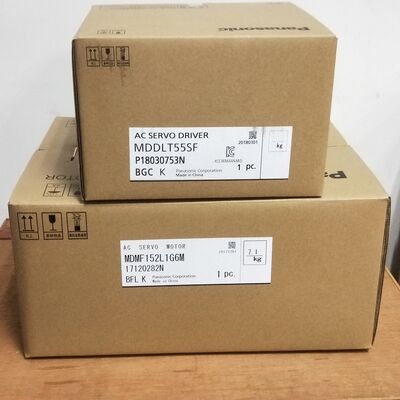

Compatible Drivers

Specifications and design of the products are subject to change without notice for product improvement.

Part Number	Series	Type	Interface	Frame	Supply Voltage
MDDLN55NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	D-Frame	Single/3-phase 200V
MDDLN55SE	A6SE series	Position control type	Pulse train only	D-Frame	Single/3-phase 200V
MDDLN55SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485/RS232)	D-Frame	Single/3-phase 200V
MDDLT55NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	D-Frame	Single/3-phase 200V
MDDLT55SF	A6SF series	Multifunction type	Analog/Pulse, Modbus (RS485/RS232)	D-Frame	Single/3-phase 200V

Performance Characteristics

Specifications and design of the products are subject to change without notice for product improvement.

Torque characteristics diagram - dotted line represents torque at 10% less supply voltage

Physical Dimensions

Specifications and design of the products are subject to change without notice for product improvement. [Unit: mm]

Motor dimensions diagram

Important Notice

Special Order Product: Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.

When using the rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
