1.5KW Panasonic AC Servo Driver MSMF152L1G6M+MDDLN55SE

Large Image : 1.5KW Panasonic AC Servo Driver MSMF152L1G6M+MDDLN55SE

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MSMF152L1G6M+MDDLN55SE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

1.5KW Panasonic AC Servo Driver MSMF152L1G6M+MDDLN55SE

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	1.5KW Panasonic AC Servo Driver , AC Servo Driver MSMF152L1G6M , Panasonic AC Servo Driver MDDLN55SE

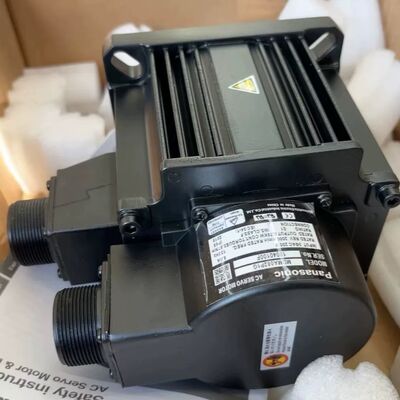

1.5KW Panasonic AC Servo Motor Driver MSMF152L1G6M+MDDLN55SE

Product Overview

Part Number	MSMF152L1G6M
Product	Servo Motor
Product Name	MINAS A6 Family Servo Motor
Details	Low inertia, Connector type

Key Features

Power range: 50 W to 22 kW
Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V
23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder
Frequency response 3.2 kHz

Technical Specifications

Part Number	MSMF152L1G6M
Family Name	MINAS A6
Series	MSMF Series
Type	Low inertia
Protection class	IP67
Flange size	100 mm sq.
Motor lead-out configuration	Connector
Motor encoder connector	Motor connector: JL10, Encoder connector: Large size JL10
Power supply capacity	2.9 kVA
Voltage specifications	200 V
Rated output	1500 W
Rated current [Reference value]	8.2 A rms
Holding brake	without
Mass	4.6 kg
Oil seal	with
Shaft	Key-way
Rated torque	4.77 N⋅m
Continuous stall torque	5.72 N⋅m
Momentary Max. peak torque	14.3 N⋅m
Max. current [Reference value]	35 A 0-p
Rated rotational speed	3000 r/min
Max. rotational speed	5000 r/min
Inertia of rotor	3.10 x10⁻⁴ kg⋅m²
Recommended inertia ratio	15 times or less
Rotary encoder specifications	23-bit Absolute/Incremental system
Rotary encoder resolution	8388608

Permissible Load Specifications

During assembly: Radial load P-direction	980 N
During assembly: Thrust load A-direction	588 N
During assembly: Thrust load B-direction	686 N
During operation: Radial load P-direction	490 N
During operation: Thrust load A, B-direction	196 N

For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".

Applicable Drivers

Part Number	Series	Type	I/F Classification	Frame	Supply voltage
MDDLN55NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLN55SE	A6SE series	Position control type	Pulse train only	D-Frame	Single/3-phase 200 V
MDDLN55SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485 /RS232)	D-Frame	Single/3-phase 200 V
MDDLT55NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLT55SF	A6SF series	Multifunction type	Analog /Pulse, Modbus (RS485 /RS232)	D-Frame	Single/3-phase 200 V

Specifications and design of the products are subject to change without notice for product improvement.

Special Order Product: Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.

When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
