Panasonic 1.5KW AC Servo Motor Driver MSMF152L1G6M MDDLT55SF

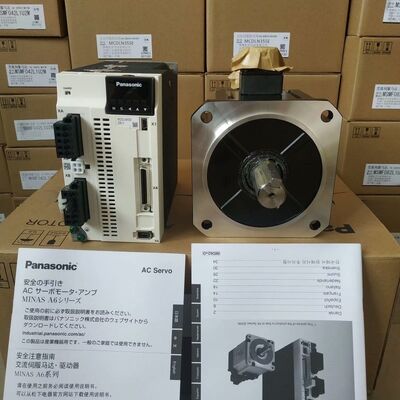

Large Image : Panasonic 1.5KW AC Servo Motor Driver MSMF152L1G6M MDDLT55SF

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MSMF152L1G6M+MDDLT55SF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Panasonic 1.5KW AC Servo Motor Driver MSMF152L1G6M MDDLT55SF

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	1.5KW AC Servo Motor Driver , MSMF152L1G6M , MDDLT55SF

Panasonic 1.5KW AC Servo Motor Driver MSMF152L1G6M MDDLT55SF

Product Overview

High-performance AC servo motor from Panasonic's MINAS A6 family, designed for precision industrial applications requiring reliable motion control.

Part Number	MSMF152L1G6M
Product Type	Servo Motor
Family Name	MINAS A6
Series	MSMF Series
Motor Type	Low inertia, Connector type

Key Features

Power range: 50 W to 22 kW
Input power supply for Driver: DC 24 V/48 V or AC 100 V/200 V/400 V
23-bit Absolute/Incremental encoder system
Battery-less Absolute/Incremental encoder
High frequency response: 3.2 kHz
IP67 protection class
Oil seal included
Key-way shaft configuration

Technical Specifications

Flange Size	100 mm sq.
Power Supply Capacity	2.9 kVA
Voltage Specifications	200 V
Rated Output	1500 W
Rated Current	8.2 A rms (Reference value)
Rated Torque	4.77 N⋅m
Continuous Stall Torque	5.72 N⋅m
Maximum Peak Torque	14.3 N⋅m
Maximum Current	35 A 0-p (Reference value)
Rated Rotational Speed	3000 r/min
Maximum Rotational Speed	5000 r/min
Rotor Inertia	3.10 × 10⁻⁴ kg⋅m²
Recommended Inertia Ratio	15 times or less
Mass	4.6 kg

Encoder Specifications

Encoder Type	23-bit Absolute/Incremental system
Resolution	8,388,608
Motor Connector	JL10
Encoder Connector	Large size JL10

Important Notice: When using the rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.

Permissible Load Specifications

Load Type	During Assembly (N)	During Operation (N)
Radial Load (P-direction)	980	490
Thrust Load (A-direction)	588	196
Thrust Load (B-direction)	686	196

Compatible Drivers

Part Number	Series	Type	Interface	Frame	Supply Voltage
MDDLN55NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLN55SE	A6SE series	Position control type	Pulse train only	D-Frame	Single/3-phase 200 V
MDDLN55SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485/RS232)	D-Frame	Single/3-phase 200 V
MDDLT55NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLT55SF	A6SF series	Multifunction type	Analog/Pulse, Modbus (RS485/RS232)	D-Frame	Single/3-phase 200 V

Product Notice: Specifications and design of the products are subject to change without notice for product improvement. Please avoid distributing this motor, or equipment containing the motor, to Japan or other regions through Japan.
