Panasonic MINAS A6 Servo Motor 2.0kW Rated Output with 23-bit High-Resolution Encoder and IP67 Protection

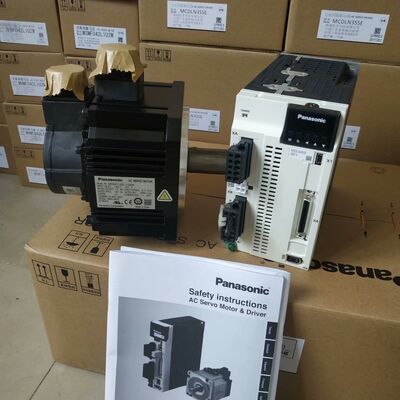

Large Image : Panasonic MINAS A6 Servo Motor 2.0kW Rated Output with 23-bit High-Resolution Encoder and IP67 Protection

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MDMF202L1G6M+MEDLT83SF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Panasonic MINAS A6 Servo Motor 2.0kW Rated Output with 23-bit High-Resolution Encoder and IP67 Protection

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	AC Servo Drive 2KW , Panasonic AC Servo Drive , MDMF202L1G6M

Panasonic MDMF202L1G6M 2kW Servo Motor – IP67 Medium Inertia 23-bit with Panasonic MEDLT83SF Servo Drive – 200V 60A A6SF Multi-function

Panasonic MINAS A6 Series | 2.0kW High-Performance Servo System

Panasonic MDMF202L1G6M | 2.0kW High Inertia Servo Motor

The MDMF202L1G6M is a heavy-duty AC Servo Motor engineered for stability. As a High Inertia model, it is the industry standard for controlling large mechanical loads, providing the necessary "matching" to prevent vibration and resonance in heavy machinery.

Key Specifications:

Model: MDMF202L1G6M
Rated Output: 2.0 kW (2000W)
Inertia Type: High Inertia (Superior load stability)
Rated Torque: 9.55 N*m (Peak: 28.6 N*m)
Brake: Integrated Electromagnetic Brake (24V DC) – Ideal for Vertical Axes
Encoder: 23-bit High-Resolution Optical Encoder (8,388,608 ppr)
Protection: IP67 Rated (Dust-tight & Waterproof)
Shaft: Keyway shaft with Oil Seal

Panasonic MEDLT83SF | MINAS A6 Servo Driver (Amplifier)

The MEDLT83SF is the high-capacity intelligence behind the motor. This L-Frame driver is specifically designed to handle the 2.0kW power requirements of the MDMF series, featuring ultra-fast response times and advanced vibration suppression.

Key Specifications:

Model: MEDLT83SF
Series: MINAS A6 Family (L-Frame)
Input Voltage: 3-Phase 200V - 240V
Command Interface: Pulse Train, Analog, and Modbus (RS232/RS485)
Response Frequency: 3.2 kHz (Ultra-high speed loop)
Safety Features: Integrated STO (Safe Torque Off)
Tuning: Real-time auto-tuning with 5-notch filters for resonance suppression

System Advantages for Industrial Automation

Fail-Safe Vertical Motion

The integrated brake in the MDMF202L1G6M combined with the STO safety features of the MEDLT83SF makes this kit the safest choice for Z-axis (vertical) applications, preventing load drops during power loss.

Micro-Precision Positioning

With the 23-bit encoder, the system provides sub-micron accuracy. The driver's 3.2 kHz response frequency ensures the motor follows commands instantly, reducing cycle times and increasing machine throughput.

Harsh Environment Reliability

The IP67 motor rating and the driver's robust thermal management allow this system to operate in environments with oil, dust, and high temperatures without performance degradation.

Common Applications

CNC Machining Centers: High-torque feed axis and spindle control
Industrial Robotics: Primary axis motors for heavy-payload robotic arms
Large-scale Packaging: Heavy-duty palletizing and material handling
Metal Stamping: Precision feeding and pressing operations
Automated Warehousing: High-speed lift and gantry systems

Technical Specifications

Item	Specifications
Part Number	MDMF202L1G6M
Product Details	Middle inertia, Connector type
Family Name	MINAS A6
Series	MDMF Series
Protection Class	IP67
Flange Size	130 mm sq.
Rated Output	2000 W
Rated Torque	9.55 N⋅m
Max. Peak Torque	28.6 N⋅m
Rated Rotational Speed	2000 r/min
Max. Rotational Speed	3000 r/min
Encoder Resolution	8,388,608
Mass	6.9 kg

Applicable Drivers

Part Number	Series	Type	I/F Classification	Frame	Supply Voltage
MEDLN83NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	E-Frame	3-phase 200 V
MEDLN83SE	A6SE series	Position control type	Pulse train only	E-Frame	3-phase 200 V
MEDLN83SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485 /RS232)	E-Frame	3-phase 200 V
MEDLT83NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	E-Frame	3-phase 200 V
MEDLT83SF	A6SF series	Multifunction type	Analog /Pulse, Modbus (RS485 /RS232)	E-Frame	3-phase 200 V

Buy with Confidence

100% Original: Genuine Panasonic MINAS A6 Series (New in Box)
Fast Shipping: Worldwide air freight available (DHL, FedEx, UPS)
Technical Support: Expert assistance for wiring, tuning, and PANATERM setup
Warranty: Full factory-backed protection
