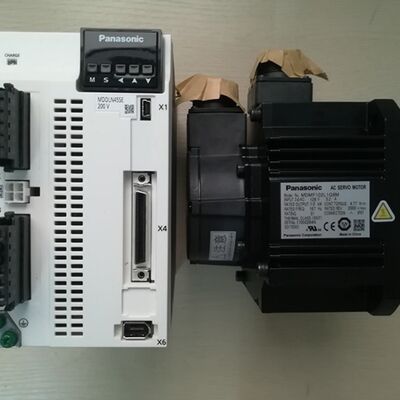

MSMF302L1G6M Panasonic 3KW AC Servo Motor

MSMF302L1G6M Panasonic 3KW AC Servo Motor
MSMF302L1G6M Panasonic 3KW AC Servo Motor MSMF302L1G6M Panasonic 3KW AC Servo Motor

Large Image :  MSMF302L1G6M Panasonic 3KW AC Servo Motor

Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Model Number: MSMF302L1G6M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 100pcs/month
Contact Now Chat Now

MSMF302L1G6M Panasonic 3KW AC Servo Motor

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

Panasonic 3KW AC servo motor

,

AC servo motor with driver

,

3KW servo motor with warranty

MSMF302L1G6M Panasonic 3KW AC Servo Motor
Product Overview

The MSMF302L1G6M is a high-performance 3KW AC servo motor from Panasonic's MINAS A6 family, designed for precision industrial applications requiring reliable motion control.

  • Power range: 50W to 22KW
  • Input power supply for Driver: DC 24V/48V or AC 100V/200V/400V
  • 23-bit Absolute/Incremental encoder system
  • High frequency response: 3.2 kHz
  • Low inertia design with connector type configuration
Technical Specifications
Parameter Specification
Part Number MSMF302L1G6M
Family Name MINAS A6
Series MSMF Series
Motor Type Low inertia
Protection Class IP67 (excluding rotating shaft and connector pins)
Flange Size 120 mm square
Motor Weight 8.7 kg
Rated Output 3000 W
Rated Torque 9.55 N⋅m
Continuous Stall Torque 11.0 N⋅m
Maximum Peak Torque 28.6 N⋅m
Rated Rotational Speed 3000 r/min
Maximum Rotational Speed 5000 r/min
Rotor Inertia 7.04 × 10⁻⁴ kg⋅m²
Recommended Inertia Ratio 15 times or less
Encoder Resolution 8,388,608 (23-bit)
Permissible Load Specifications
Load Type Specification
Assembly - Radial Load (P-direction) 980 N
Assembly - Thrust Load (A-direction) 588 N
Assembly - Thrust Load (B-direction) 686 N
Operation - Radial Load (P-direction) 490 N
Operation - Thrust Load (A/B-direction) 196 N
Compatible Drivers
Part Number Series Type Interface Frame Supply Voltage
MFDLNA3NE A6NE series RTEX, Ultra high-speed Network (Basic type) RTEX F-Frame 3-phase 200V
MFDLNA3SE A6SE series Position control type Pulse train only F-Frame 3-phase 200V
MFDLNA3SG A6SG series RS485/RS232 Communication type Pulse, Modbus (RS485/RS232) F-Frame 3-phase 200V
MFDLTA3NF A6NF series RTEX, Ultra high-speed Network type (Multi type) RTEX F-Frame 3-phase 200V
MFDLTA3SF A6SF series Multifunction type Analog/Pulse, Modbus (RS485/RS232) F-Frame 3-phase 200V
Important Notice: When using the rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Note: Specifications and design of the products are subject to change without notice for product improvement.
