Panasonic MINAS A6 Series 750W High Inertia Servo Motor with 23-bit Encoder IP65 Lead Wire Type

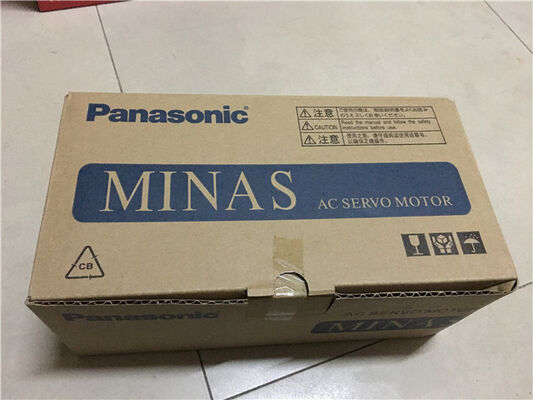

Large Image : Panasonic MINAS A6 Series 750W High Inertia Servo Motor with 23-bit Encoder IP65 Lead Wire Type

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMD082G1U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MINAS A6 Series 750W High Inertia Servo Motor with 23-bit Encoder IP65 Lead Wire Type

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MINAS A5 AC Servo Motor Driver , 750W AC Servo Motor Driver , MHMD082G1U

Panasonic MINAS A5 MHMD082G1U Servo Motor, 750W 200V High Inertia, 20-bit Encoder IP67 Lead Wire Type

Product Overview

The Panasonic MHMD082G1U is a high-performance 750W AC Servo Motor engineered for the flagship MINAS A6 Series. Designed specifically for High Inertia applications, this motor provides the mechanical stability required to handle loads with fluctuating mass or high resonance.

It is the ideal solution for designers who need a compact yet "steady" motor that eliminates vibration during rapid positioning. With a 23-bit high-resolution encoder and robust IP65-rated enclosure, the MHMD082G1U delivers the precision, speed, and durability required for 24/7 industrial automation.

Technical Specifications

Feature	Specification
Model Number	MHMD082G1U
Series	MINAS A6 (High Inertia Type)
Rated Output	750 W (0.75 kW)
Voltage	200 V
Rated Torque	2.39 N·m (Peak: 7.16 N·m)
Rated Speed	3000 r/min (Max: 6500 r/min)
Encoder Type	23-bit Absolute/Incremental (8,388,608 pulses/rev)
Shaft Design	Round shaft (Standard)
Protection Rating	IP65 (Dust-proof and splash-resistant)
Permissible Load Inertia	High Inertia ratio for superior stability

Key Benefits

1. Superior High-Inertia Matching

The MHMD series is specifically designed for applications where the load inertia is significantly higher than the motor inertia. This prevents the "hunting" effect and oscillations common in low-inertia motors, ensuring shorter settling times and much smoother motion control.

2. Industry-Leading 23-bit Feedback

Featuring over 8 million pulses per revolution, the integrated optical encoder provides sub-micron positioning accuracy. This high resolution drastically reduces torque ripple, leading to quieter operation and ultra-smooth rotation even at low speeds.

3. High-Speed Performance

Despite being a high-inertia model, the MHMD082G1U boasts a maximum speed of 6500 r/min, allowing for high-throughput machine cycles without compromising on torque or stability.

4. Compact & Efficient Engineering

Panasonic has optimized the A6 series to be smaller and lighter than previous generations. The MHMD082G1U offers a high power-to-size ratio, making it easy to integrate into compact control cabinets and robotic arm joints.

Industrial Applications

Electronic Assembly: High-speed pick-and-place and SMT machines

Packaging Machinery: Bag-making and labeling systems requiring stable torque

Material Handling: Automated sorting conveyors with variable load weights

Textile Machinery: High-frequency winding and tension control

Printing Equipment: Precise paper feed and alignment systems

Purchase Assurance

Condition: 100% New & Original Panasonic Factory Sealed
Global Shipping: Fast air freight options to North America, Europe, and Asia
Technical Support: Expert guidance for pairing with drivers like the MADLT15SF
Authenticity: Guaranteed genuine parts with full serial number tracking
