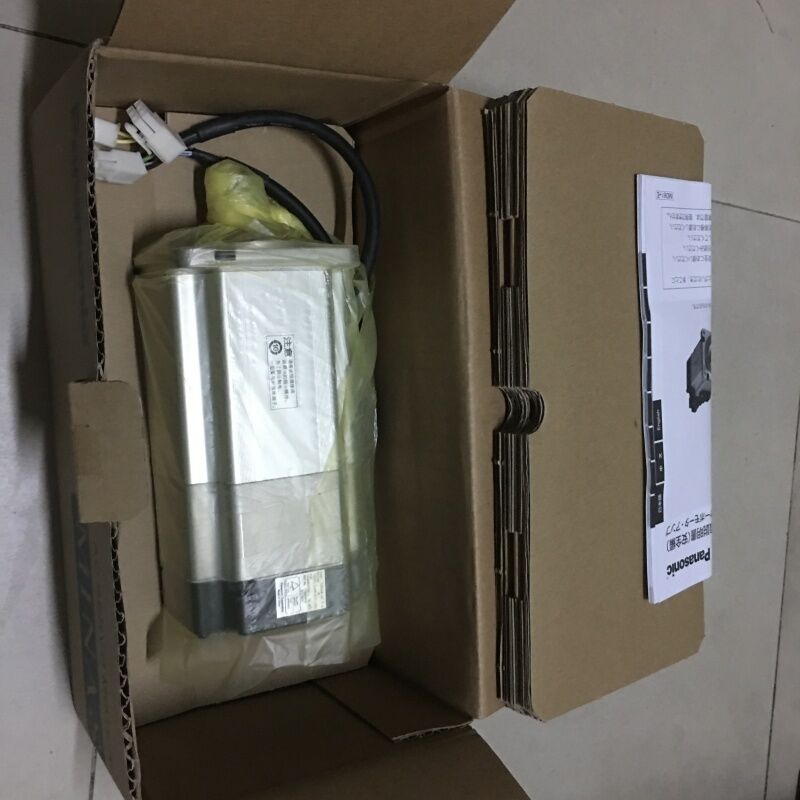

MHMD082G1V Panasonic 750W AC Servo Motor

MHMD082G1V Panasonic 750W AC Servo Motor
MHMD082G1V Panasonic 750W AC Servo Motor MHMD082G1V Panasonic 750W AC Servo Motor

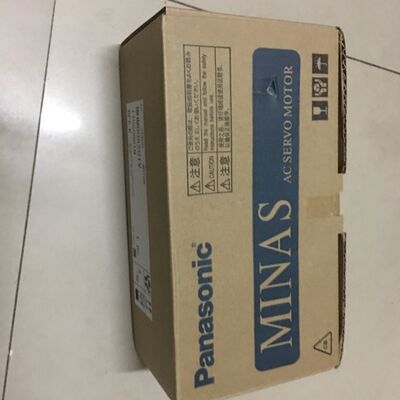

Large Image :  MHMD082G1V Panasonic 750W AC Servo Motor

Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Model Number: MHMD082G1V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 100pcs/month
Contact Now Chat Now

MHMD082G1V Panasonic 750W AC Servo Motor

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

Panasonic 750W AC servo motor

,

Panasonic AC servo motor driver

,

750W servo motor with warranty

MHMD082G1V Panasonic 750W AC Servo Motor
Product Overview
Part Number MHMD082G1V
Product Family MINAS A5 Family Servo Motor
Series MHMD Series
Type High inertia, Lead wire type
Protection Class IP65 (Except rotating portion of output shaft and leadwire end)
Key Features
  • Power range: 10 W to 7.5 kW
  • Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V
  • 20-bit incremental / 17-bit Absolute/Incremental encoder
  • Frequency response: 2.3 kHz
  • High inertia design for stable operation
Motor Specifications
Flange Size 80 mm sq.
Rated Output 750 W
Rated Voltage 200 V
Rated Current 4.0 A rms (Reference value)
Rated Torque 2.4 N⋅m
Peak Torque 7.1 N⋅m
Max Current 17.0 A 0-p (Reference value)
Rated Speed 3000 r/min
Max Speed 4500 r/min
Rotor Inertia 1.61 × 10⁻⁴ kg⋅m²
Recommended Inertia Ratio 20 times or less
Encoder 20-bit Incremental system (1,048,576 resolution)
Mass 3.3 kg
Shaft Configuration Key-way, center tap
Holding Brake Included
Oil Seal Included
Brake Specifications
Static Friction Torque 2.45 N⋅m or more
Engaging Time 70 ms or less
Releasing Time 20 ms or less
Exciting Current (DC) 0.42 A
Releasing Voltage (DC) 1 V or more
Exciting Voltage (DC) 24 ± 1.2 V
Important Notes: This brake releases when energized. Do not use for braking the motor in motion. Refer to the instruction manual for detailed specifications and usage guidelines.
Permissible Load Specifications
During Assembly - Radial Load (P-direction) 686 N
During Assembly - Thrust Load (A-direction) 294 N
During Assembly - Thrust Load (B-direction) 392 N
During Operation - Radial Load (P-direction) 392 N
During Operation - Thrust Load (A, B-direction) 147 N
For complete details on permissible load at output shaft, refer to the Motor Specification Description documentation.
