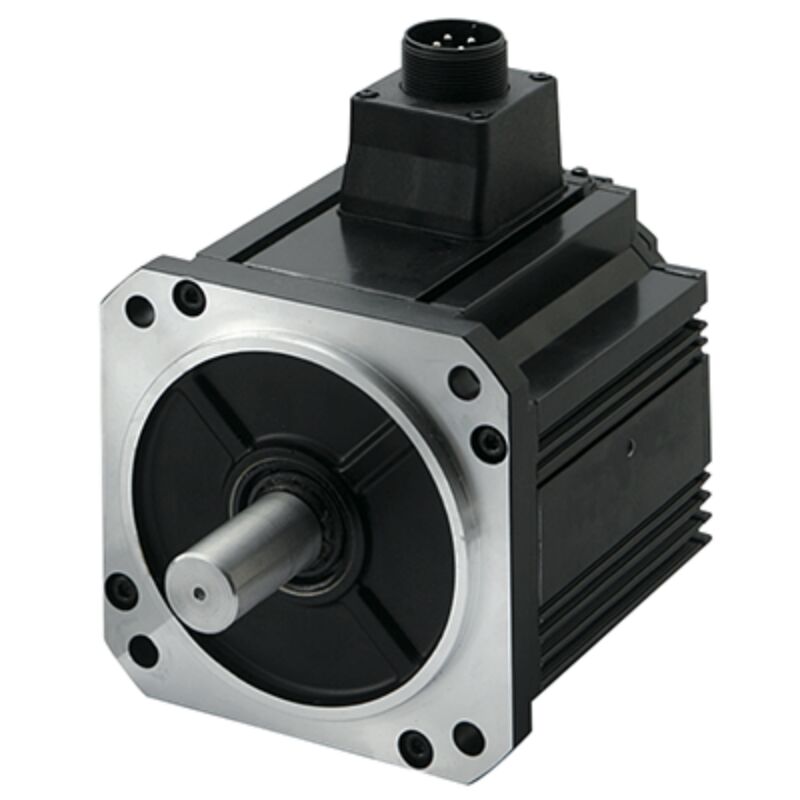

MHME102GCGM Panasonic 1KW AC Servo Motor

MHME102GCGM Panasonic 1KW AC Servo Motor
MHME102GCGM Panasonic 1KW AC Servo Motor MHME102GCGM Panasonic 1KW AC Servo Motor

Large Image :  MHME102GCGM Panasonic 1KW AC Servo Motor

Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Model Number: MHME102GCGM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable

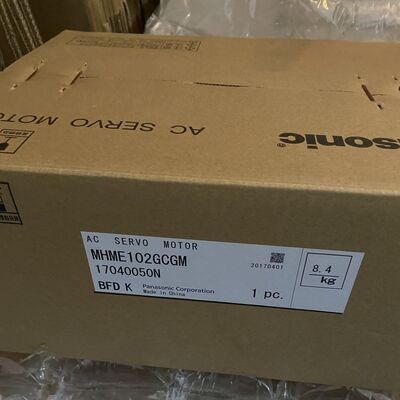

Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 100pcs/month
Contact Now Chat Now

MHME102GCGM Panasonic 1KW AC Servo Motor

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

Panasonic 1KW AC servo motor

,

Panasonic servo motor with driver

,

1KW AC servo motor driver

MHME102GCGM Panasonic 1KW AC Servo Motor
High-performance AC servo motor from Panasonic's MINAS A5 family, designed for industrial applications requiring precision motion control and reliable operation.
Product Overview
Part Number MHME102GCGM
Product Family MINAS A5
Series MHME Series
Type High inertia
Protection Class IP65
Key Features
  • Power range: 10 W to 7.5 kW
  • Input power supply for Driver: DC 24 V/48 V or AC 100 V/200 V/400 V
  • 20-bit incremental / 17-bit Absolute/Incremental encoder
  • High frequency response: 2.3 kHz
  • Connector type motor lead-out configuration
  • High inertia design for stable operation
Technical Specifications
Rated Output 1000 W
Rated Torque 4.77 N⋅m
Momentary Max. Peak Torque 14.3 N⋅m
Rated Rotational Speed 2000 r/min
Max. Rotational Speed 3000 r/min
Rated Current 5.7 A rms
Max. Current 24 A 0-p
Rotor Inertia 24.7 × 10⁻⁴ kg⋅m²
Recommended Inertia Ratio 5 times or less
Physical Characteristics
Flange Size 130 mm sq.
Mass 6.7 kg
Shaft Type Key-way
Oil Seal with
Holding Brake without
Permissible Load Specifications
During Assembly - Radial Load (P-direction) 980 N
During Assembly - Thrust Load (A-direction) 588 N
During Assembly - Thrust Load (B-direction) 686 N
During Operation - Radial Load (P-direction) 490 N
During Operation - Thrust Load (A, B-direction) 196 N
For detailed permissible load specifications, refer to the Motor Specification Description documentation.
Additional Information
Regenerative Brake Frequency Without option: 83 times/min
With option: No limit
Option Part No.: DV0P4284
Special Order Note Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.
