MDME102GCGM Panasonic 1KW AC Servo Motor

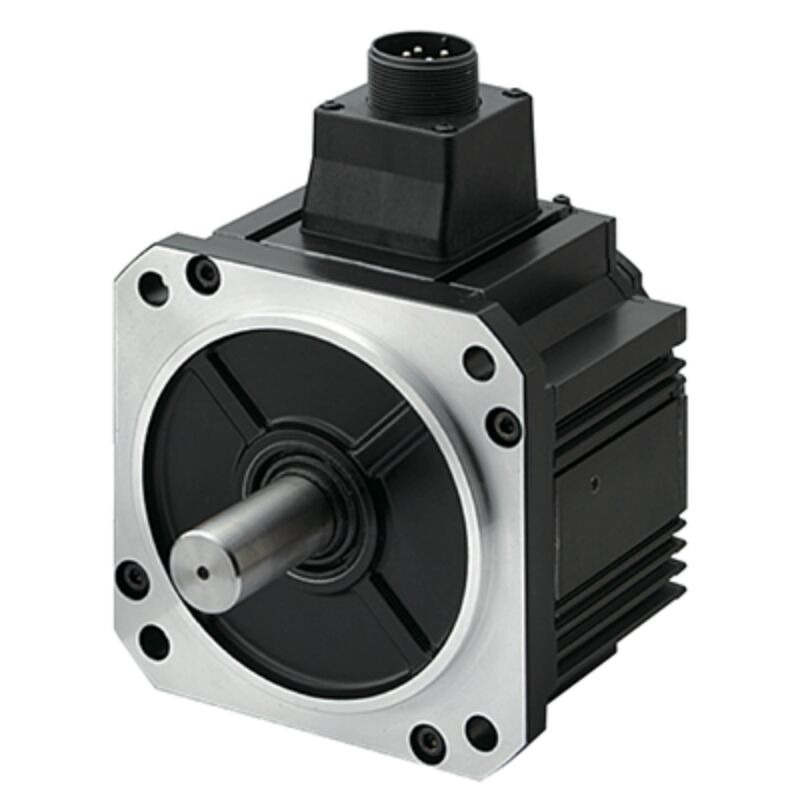

Large Image : MDME102GCGM Panasonic 1KW AC Servo Motor

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MDME102GCGM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

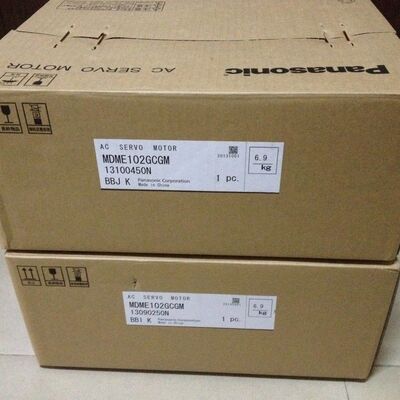

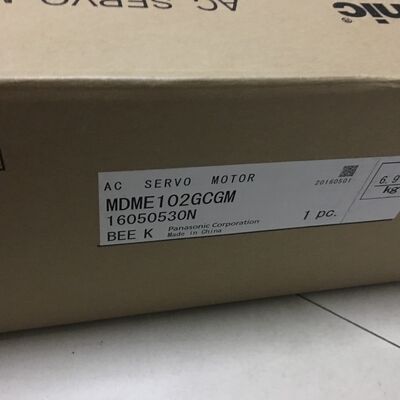

Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

MDME102GCGM Panasonic 1KW AC Servo Motor

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 1KW AC servo motor , Panasonic AC servo motor driver , 1KW AC servo motor with warranty

MDME102GCGM Panasonic 1KW AC Servo Motor

The MDME102GCGM is part of Panasonic's MINAS A5 Family of high-performance servo motors, designed for industrial automation applications requiring precision motion control.

Product Overview

Part Number	MDME102GCGM
Product Family	MINAS A5
Series	MDME Series
Type	Middle inertia, Connector type
Protection Class	IP65
Mass	5.2 kg

Key Features

Power range: 10 W to 7.5 kW
Input power supply for Driver: DC 24 V/48 V or AC 100 V/200 V/400 V
20-bit incremental / 17-bit Absolute/Incremental encoder
High frequency response: 2.3 kHz
Flange size: 130 mm square
Motor lead-out configuration: Connector type

Electrical Specifications

Rated Output	1000 W
Rated Torque	4.77 N⋅m
Momentary Max. Peak Torque	14.3 N⋅m
Rated Current	5.7 A rms
Max. Current	24 A 0-p
Rated Rotational Speed	2000 r/min
Max. Rotational Speed	3000 r/min
Power Supply Capacity	1.8 kVA
Voltage Specifications	200 V

Mechanical Specifications

Inertia of Rotor	4.60 × 10⁻⁴ kg⋅m²
Recommended Inertia Ratio	10 times or less
Shaft Type	Key-way
Oil Seal	Included
Holding Brake	Without

Encoder Specifications

System	20-bit Incremental
Resolution	1,048,576
Connector	Encoder connector type

Permissible Load Specifications

During Assembly - Radial Load (P-direction)	980 N
During Assembly - Thrust Load (A-direction)	588 N
During Assembly - Thrust Load (B-direction)	686 N
During Operation - Radial Load (P-direction)	490 N
During Operation - Thrust Load (A, B-direction)	196 N

Special Order Note: Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.

Regenerative Brake: No limit without option; No limit with option (External regenerative resistor Part No.: DV0P4284)

For detailed information about permissible load, regenerative brake frequency, and recommended moment of inertia ratio, please refer to the Motor Specification Description in the instruction manual.
