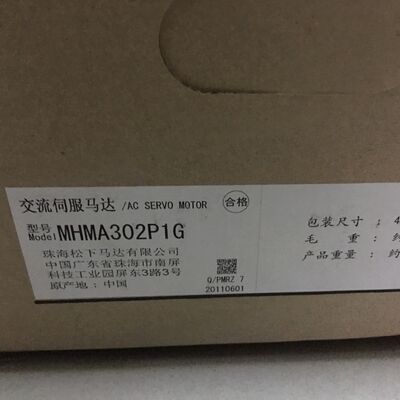

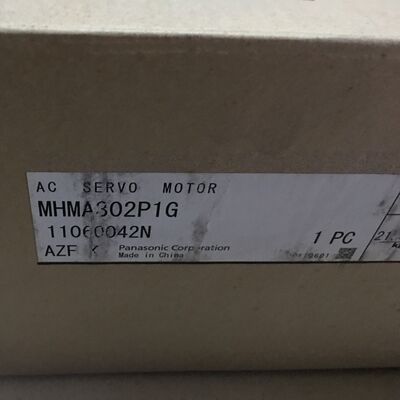

Panasonic 3KW AC Servo Motor MHMA302P1G

Panasonic 3KW AC Servo Motor MHMA302P1G
Panasonic 3KW AC Servo Motor MHMA302P1G Panasonic 3KW AC Servo Motor MHMA302P1G

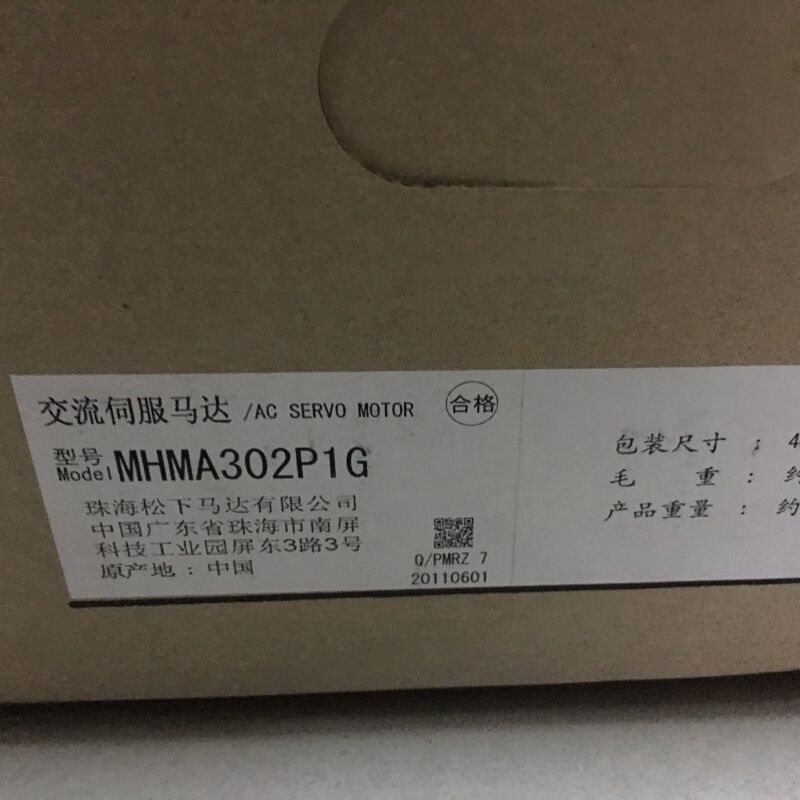

Large Image :  Panasonic 3KW AC Servo Motor MHMA302P1G

Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Model Number: MHMA302P1G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 50pcs/month
Contact Now Chat Now

Panasonic 3KW AC Servo Motor MHMA302P1G

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

Panasonic 3KW AC servo motor

,

MHMA302P1G servo motor with warranty

,

high torque AC servo motor

Panasonic 3KW AC Servo Motor MHMA302P1G
Product Overview
Part Number MHMA302P1G
Product Family MINAS A4 Family Servo Motor
Key Features High inertia, Connector type, IP65 protection
Compatibility Common item for A4 Series/AIII Series
Technical Specifications
Rated Output 3000 W
Rated Torque 14.3 N⋅m
Momentary Max. Peak Torque 42.9 N⋅m
Rated Rotational Speed 2000 r/min
Max. Rotational Speed 3000 r/min
Voltage Specifications 200 V
Max. Current [Reference Value] 76.0 A 0-p
Inertia of Rotor 94.1 × 10⁻⁴ kg⋅m²
Recommended Inertia Ratio 5 times or less
Flange Size 176 mm sq.
Mass 18.2 kg
Protection Class IP65
Motor Configuration Connector type
Shaft Type Key-way
Oil Seal With
Holding Brake Without
Rotary Encoder 2500 P/r Incremental system
Regenerative Brake Specifications
Without Option 43 times/min
With Option No limit
External Regenerative Resistor Part No.: DV0P4285 × 2 in parallel
Permissible Load
Load Type During Assembly During Operation
Radial Load P-direction 1666 N 784 N
Thrust Load A-direction 784 N 343 N
Thrust Load B-direction 980 N 343 N
Important Notes
  • Regenerative brake frequency is measured from rated speed with deceleration without load
  • With load connection, frequency is defined as 1/(m+1), where m = load moment of inertia/rotor moment of inertia
  • When motor speed exceeds rated speed, regenerative brake frequency is inversely proportional to the square of (running speed/rated speed)
  • Power supply voltage affects frequency - consult manual for voltage-specific calculations
  • For continuous regeneration applications or vertical feeding, consult manufacturer or dealer
  • If effective torque is within rated torque, there is no limit in regenerative brake frequency
  • Consult manufacturer if load moment of inertia exceeds recommended ratio
Torque Characteristics
Dotted line represents the torque at 10% less supply voltage
Dimensions
