Panasonic 750W AC Servo Motor MHMJ082G1U

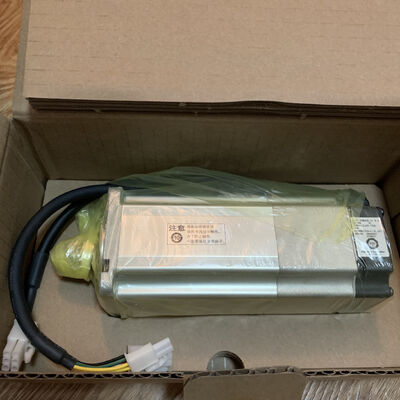

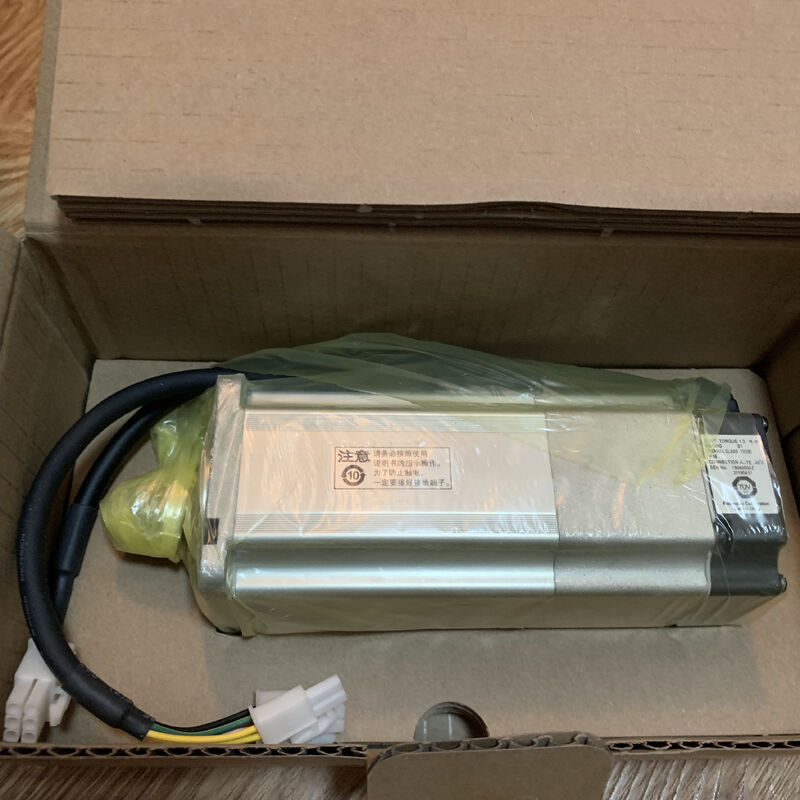

Large Image : Panasonic 750W AC Servo Motor MHMJ082G1U

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMJ082G1U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic 750W AC Servo Motor MHMJ082G1U

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 750W AC servo motor , Panasonic servo motor with driver , MHMG082G1U AC servo motor

Panasonic 750W AC Servo Motor MHMJ082G1U

Product Overview

Part Number	MHMJ082G1U
Product Family	MINAS A5 Family Servo Motor
Series	MHMJ Series
Type	High inertia, Lead wire type, IP65

Key Features

Power range: 10 W to 7.5 kW
Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V
20-bit incremental / 17-bit Absolute/Incremental encoder
Frequency response: 2.3 kHz
IP65 protection rating

Technical Specifications

Electrical Specifications

Rated Output	750 W
Rated Voltage	200 V
Rated Current	4.0 A rms
Max. Current	17.0 A 0-p
Power Supply Capacity	1.3 kVA

Mechanical Specifications

Rated Torque	2.4 N⋅m
Max. Peak Torque	7.1 N⋅m
Rated Speed	3000 r/min
Max. Speed	4500 r/min
Rotor Inertia	1.51 ×10⁻⁴ kg⋅m²
Recommended Inertia Ratio	20 times or less
Mass	2.5 kg
Flange Size	80 mm sq.

Encoder & Construction

Encoder Type	20-bit Incremental system
Encoder Resolution	1,048,576
Motor Lead Configuration	Lead wire
Shaft Type	Key-way, center tap
Holding Brake	Without
Oil Seal	With

Permissible Load Specifications

During Assembly: Radial Load (P-direction)	686 N
During Assembly: Thrust Load (A-direction)	294 N
During Assembly: Thrust Load (B-direction)	392 N
During Operation: Radial Load (P-direction)	392 N
During Operation: Thrust Load (A, B-direction)	147 N

For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".

Additional Information

Special Order Product: Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.

Protection Class: IP65 (except rotating portion of output shaft and leadwire end)

For detailed environmental conditions and specifications, please refer to the instruction manual.
