PEPPERL+FUCHS Surge Protection Barrier FN-LB-I

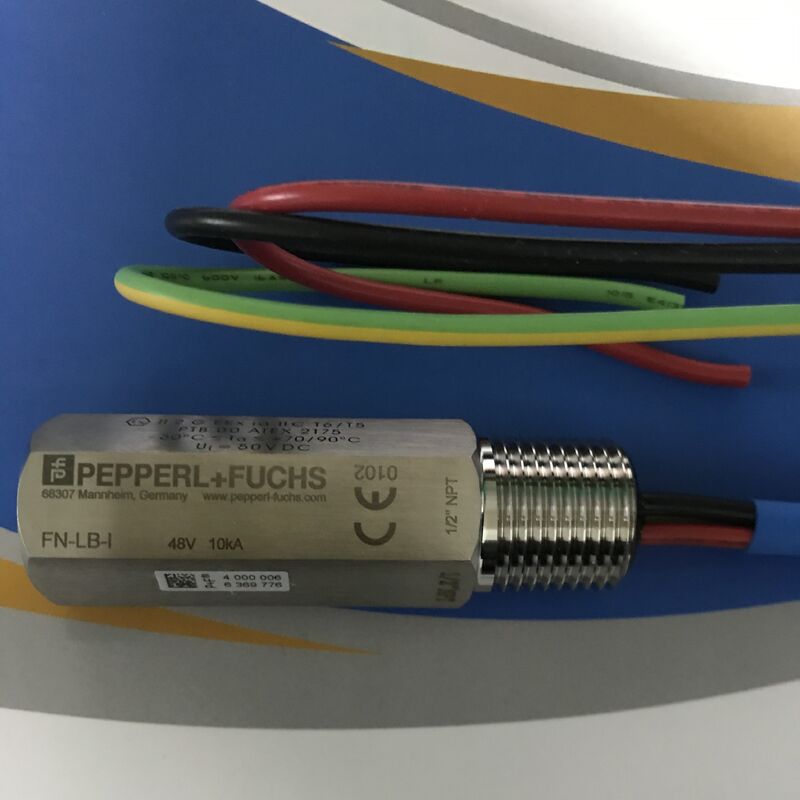

Large Image : PEPPERL+FUCHS Surge Protection Barrier FN-LB-I

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	FN-LB-I

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

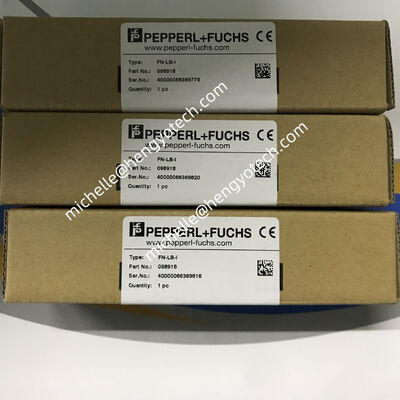

Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

PEPPERL+FUCHS Surge Protection Barrier FN-LB-I

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	PEPPERL+FUCHS surge protection barrier , FN-LB-I surge protection device , industrial surge protection barrier

PEPPERL+FUCHS Surge Protection Barrier FN-LB-I

Product Overview

The FN-LB-I Surge Protection Barrier provides robust transient voltage protection for industrial field instruments in hazardous areas, ensuring reliable operation and SIL 3 safety compliance.

Key Specifications

1-channel field mount module

½ NPT thread connection

Stainless steel housing

Maximum surge current (8/20 µs): 20 kA

500 V isolation from earth

Suitable for hazardous areas

Up to SIL 3 according to IEC/EN 61508

Function & Protection

This surge protection barrier effectively limits induced transients from various sources including lightning strikes and switching impulses. It diverts transient current to ground while maintaining signal line voltage at safe levels during surge events.

The barrier provides 85 V line-to-line and 500 V line-to-ground clamping voltage protection for connected instruments, including those with less than 500 V isolation-to-ground.

Installation is simplified through available conduit or cable gland openings commonly found on process transmitters.

Important Installation Note: Surge Protection Barriers must be connected to a solid, effective ground system and maintain the same equipotential level as the protected instrument. The ground system must comply with all applicable regulations and standards.
