PEPPERL+FUCHS Surge Protection Barrier FS-LB-I

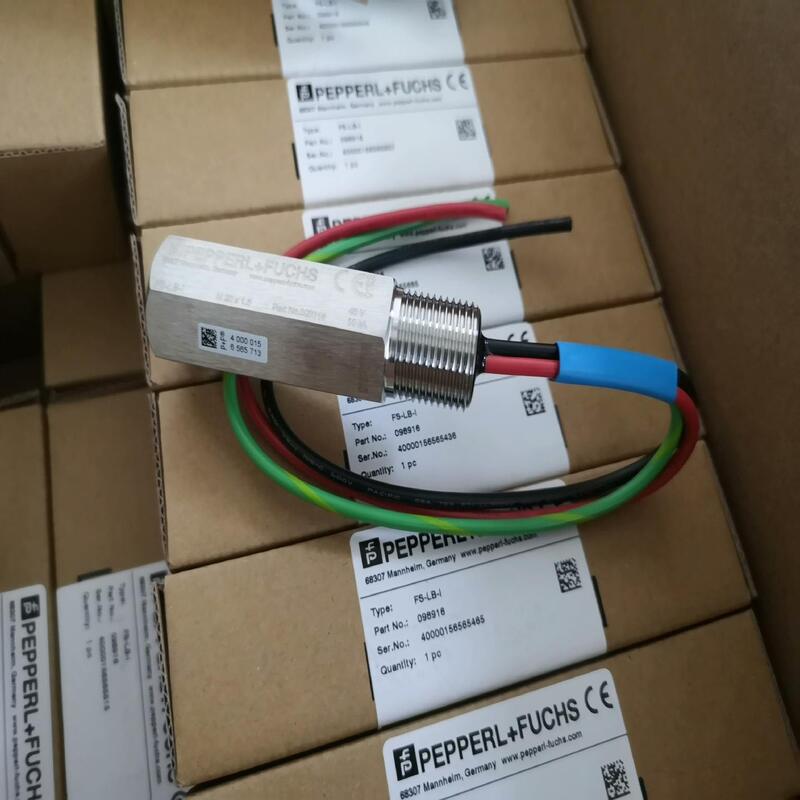

Large Image : PEPPERL+FUCHS Surge Protection Barrier FS-LB-I

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	FS-LB-I

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

PEPPERL+FUCHS Surge Protection Barrier FS-LB-I

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	PEPPERL+FUCHS surge protection barrier , FS-LB-I surge protection device , industrial surge protection barrier

PEPPERL+FUCHS Surge Protection Barrier FS-LB-I

Product Specifications

1-channel design
Field mount module
M20 x 1.5 thread
Stainless steel housing
Max. surge current (8/20 µs): 20 kA
500 V isolation from earth
Suitable for hazardous areas
Up to SIL 3 according to IEC/EN 61508

Function & Operation

This surge protection barrier limits induced transients from various sources including lightning strikes and switching impulses. It diverts transient current to ground while limiting signal line voltage to safe levels during surge events.

The barrier provides 85 V line-to-line and 500 V line-to-ground clamping voltage for protected instruments, and also safeguards instruments with less than 500 V isolation-to-ground.

Installation is simple through available conduit or cable gland openings commonly found on process transmitters.

Important Installation Note: Surge Protection Barriers must always be connected to a solid, effective ground and maintain the same equipotential level as the protected instrument. The ground system must comply with all applicable regulations.

For comprehensive technical details and specifications, refer to the product manual and visit www.pepperl-fuchs.com.
