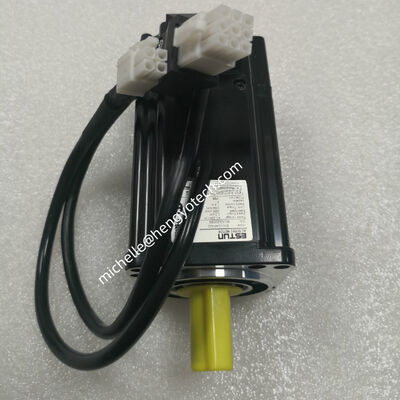

Estun 200W AC Servo Motor EMJ-02APA22

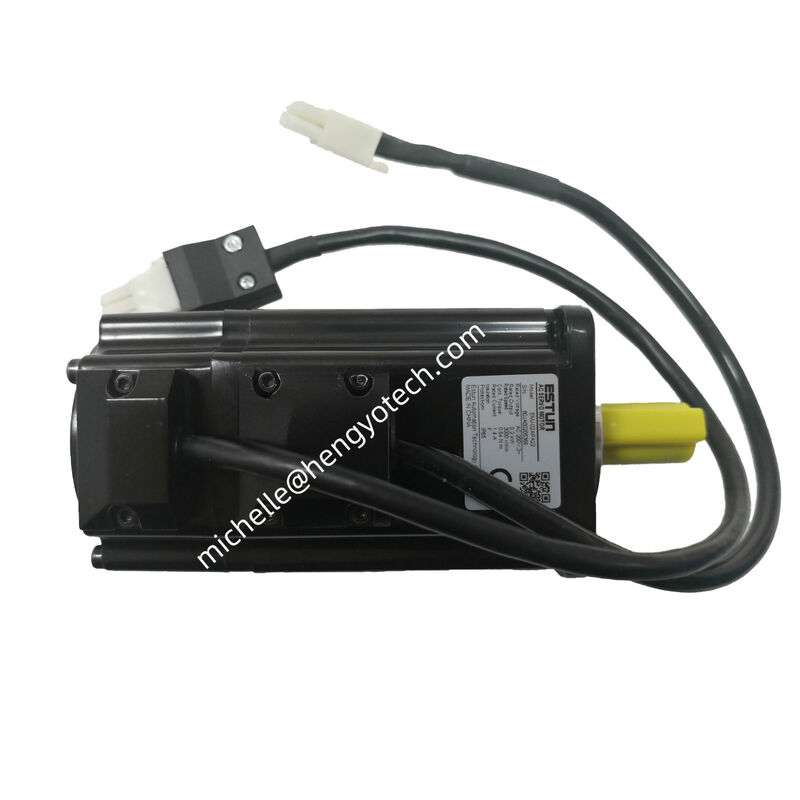

Large Image : Estun 200W AC Servo Motor EMJ-02APA22

Product Details:

Place of Origin:	CHINA
Brand Name:	ESTUN
Model Number:	EMJ-02APA22

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Estun 200W AC Servo Motor EMJ-02APA22

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

CNC Machine, Packaging Machine

Highlight:

Estun 200W AC servo motor

EMJ-02APA22 servo motor

Estun servo motor with warranty

1. Basic Information

Model: EMJ-02APA22
Product Series: EMJ - Series Medium - Inertia AC Servo Motor (200V class, 0.2kW rated power)
Application: Paired with PRONET-E-02A servo drive for high - precision motion control in scenarios like small - scale automated assembly stations, electronic component handling mechanisms, precision testing equipment, and light - duty packaging machinery requiring 0.2kW power and stable positioning.

2. Model Decoding

Model Segment	Explanation
EMJ	EMJ Series Medium - Inertia Servo Motor
02	Rated Power: 0.2kW (200W)
A	200VAC Voltage Class
P	Standard Mounting & Cooling Configuration
A	Standard Encoder (2500P/R incremental encoder)
22	Special Configuration: Oil - sealed, no brake (200VAC standard setup)

3. Core Features

200VAC rated voltage, tailored for 0.2kW medium - inertia servo motion control.
Medium - inertia design, supporting peak torque up to 300% of rated torque for short - term overload operations.
Equipped with 2500P/R linear incremental encoder (standard) for precise position feedback; 17 - bit absolute encoder available as an option.
Oil - sealed structure (as per "22" code) to prevent dust and moisture ingress, suitable for general industrial environments.
Compatible with PRONET-E-02A servo drive, supporting position, speed, and torque control modes.
Rated speed 3000r/min, maximum speed 4500r/min for flexible speed regulation in diverse applications.

4. Technical Specifications (Typical)

Parameter	Value
Rated Voltage	200VAC, three - phase
Rated Power	0.2kW (200W)
Rated Torque	0.64N·m
Rated Current	1.3A
Rated Speed	3000r/min; Max Speed: 4500r/min
Rotor Inertia	0.000269kg·m²
Encoder	2500P/R incremental encoder (standard); 17 - bit absolute encoder (optional)
Cooling Method	Self - cooling (natural convection)
Protection Class	IP65 (shaft extension); IP20 (motor body)
Ambient Temperature	0°C - 40°C (operation); - 20°C - 60°C (storage)
Weight	Approx. 1.5kg (without cables)

5. Installation & Wiring Notes

Mount the motor on a rigid base to minimize vibration; use matching mounting brackets and torque - tighten fasteners as per specifications.
Match with PRONET-E-02A drive; connect power terminals and encoder cable (CN2 interface of the drive) correctly.
Use shielded twisted - pair cables for the encoder to reduce electromagnetic interference; ground the cable shield at the drive end.
Ensure the oil - sealed shaft (code "22") is properly aligned with the load to avoid excessive radial force on the bearing.
Wait at least 5 minutes after power - off before performing wiring checks to prevent electric shock.
