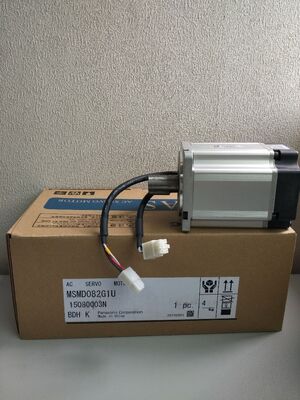

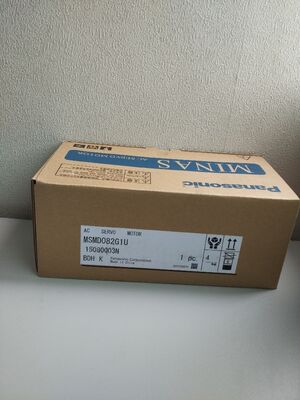

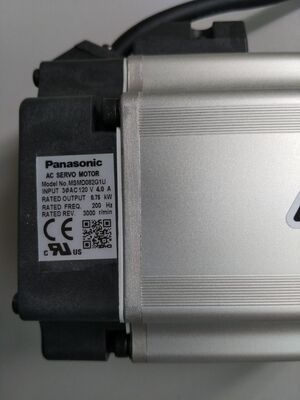

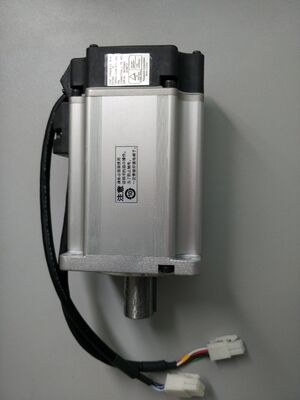

MSMD082G1U Panasonic AC Servo Motor 0.75kW High Precision Drive Unit Compatible with Automation Systems and Industrial Equipment

Large Image : MSMD082G1U Panasonic AC Servo Motor 0.75kW High Precision Drive Unit Compatible with Automation Systems and Industrial Equipment

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MSMD082G1U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	Ship out immediately upon payment received
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

MSMD082G1U Panasonic AC Servo Motor 0.75kW High Precision Drive Unit Compatible with Automation Systems and Industrial Equipment

Description

Condition:

Panasonic Original Brand New

Warranty:

One Year

Application:

CNC Machine, Packaging Machine

Shipping Way:

DHL FedEx

Highlight:

Panasonic AC servo motor 0.75kW

high precision servo drive unit

industrial automation AC servo motor

MSMD082G1U｜MINAS A5 Family Servo Motor

Part Number	MSMD082G1U
Product	Servo Motor
Details	Low inertia, Lead wire type, IP65
Product Name	MINAS A5 Family Servo Motor (Discontinued)
Features	10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz

Item	Specifications
Product details	Low inertia, Lead wire type, IP65
Family Name	MINAS A5
Series	MSMD Series
Type	Low inertia
Protection class	IP65
About Enclosure	Except rotating portion of output shaft and leadwire end.
Flange sq. dimension	80 mm sq.
Flange size (mm)	80
Motor lead-out configuration	Lead wire
Motor encoder connector	Lead wire
Power supply capacity (kVA)	1.3
Voltage specifications (V)	200
Rated output (W)	750
Rated current (A rms)	4.0
Holding brake	without
Mass (kg)	2.3
Oil seal	with
Shaft	Key-way, center tap
Rated torque (N ⋅ m)	2.4
Momentary Max. peak torque (N ⋅ m)	7.1
Max. current (A 0-p)	17.0
Regenerative brake frequency (times/min)	Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283
Rated rotational speed (r/min)	3000
Max. rotational speed (r/min)	4500
Inertia of rotor ( x10-4 kg ⋅ m²)	0.87
Recommended inertia ratio	20 times or less
Rotary encoder: specifications	20-bit Incremental system
Rotary encoder: Resolution	1048576
