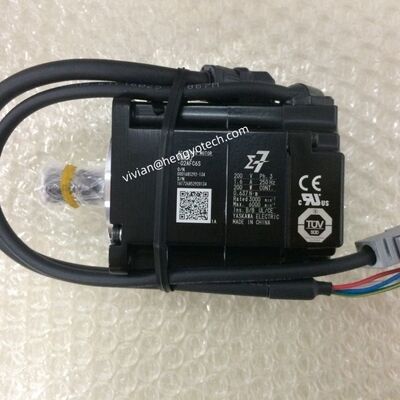

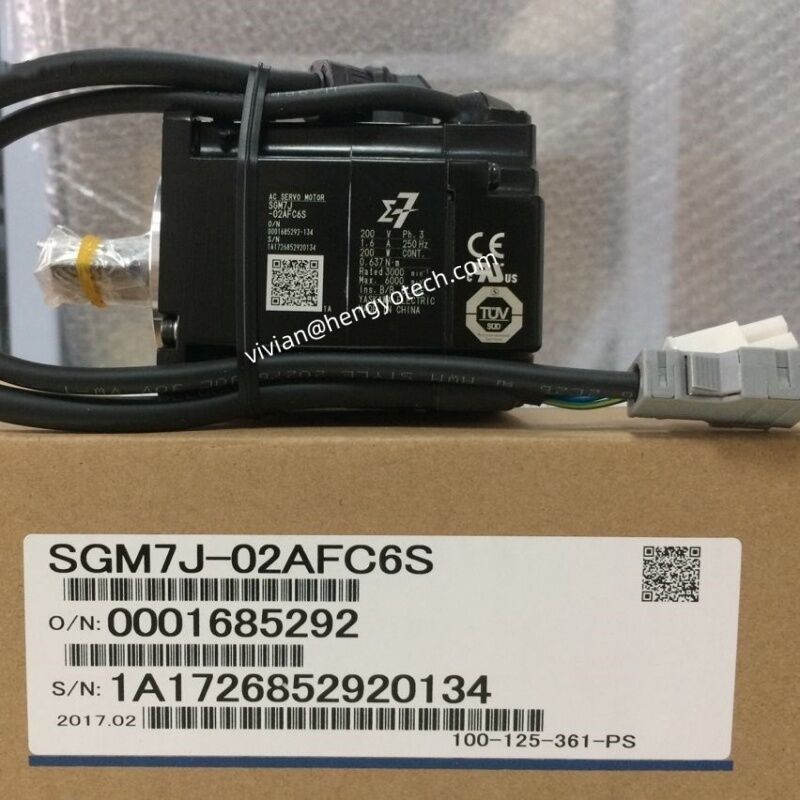

Yaskawa 200W AC Servo Motor SGM7J-02AFC6S

Highlights:

• 24-bit encoder resolution
• More compact than other motors with similar ratings, for a better fit in tight spaces
• Completely compatible with Sigma-7 servos
• Neodymium iron boron permanent magnets with a high flux density reduce rotor size
• Advanced magnetic circuitry and optimum winding geometry deliver very low cogging torque
• Safety rated at  SIL 3 (IEC 61508)
• IP67 rated for resistance to dust, water washdown
• Functions in temperatures above 60oC, altitudes above 2000 ft.
• Peak acceleration torque up to 300% of rated torque
• Peak torque can be maintained for up to three seconds
• Rated speed of 3,000 rpm, max speed of 6,000 rpm
• Runs 20% cooler than previous generation products
• Holding Brake and Shaft Seal option available

• Models & Ratings







  200V Input (24-bit encoder)

  Part Number	Rated Output	Options
  SGM7J-A5A7D61	50W	No Options
  SGM7J-A5A7D6C	50W	24V Brake
  SGM7J-A5A7D6E	50W	24V Brake, Shaft Seal
  SGM7J-A5A7D6S	50W	Shaft Seal
  SGM7J-01A7D61	100W	No Options
  SGM7J-01A7D6C	100W	24V Brake
  SGM7J-01A7D6E	100W	24V Brake, Shaft Seal
  SGM7J-01A7D6S	100W	Shaft Seal
  SGM7J-C2A7D61	150W	No Options
  SGM7J-C2A7D6C	150W	24V Brake
  SGM7J-C2A7D6E	150W	24V Brake, Shaft Seal
  SGM7J-C2A7D6S	150W	Shaft Seal
  SGM7J-02A7D61	200W	No Options
  SGM7J-02A7D6C	200W	24V Brake
  SGM7J-02A7D6E	200W	24V Brake, Shaft Seal
  SGM7J-02A7D6S	200W	Shaft Seal
  SGM7J-04A7D61	400W	No Options
  SGM7J-04A7D6C	400W	24V Brake
  SGM7J-04A7D6E	400W	24V Brake, Shaft Seal
  SGM7J-04A7D6S	400W	Shaft Seal
  SGM7J-06A7D61	600W	No Options
  SGM7J-06A7D6C	600W	24V Brake
  SGM7J-06A7D6E	600W	24V Brake, Shaft Seal
  SGM7J-06A7D6S	600W	Shaft Seal
  SGM7J-08A7D61	750W	No Options
  SGM7J-08A7D6C	750W	24V Brake
  SGM7J-08A7D6E	750W	24V Brake, Shaft Seal
  SGM7J-08A7D6S	750W	Shaft Seal
