MDMF102L1G6M Panasonic 1KW AC Servo Motor

Large Image : MDMF102L1G6M Panasonic 1KW AC Servo Motor

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MDMF102L1G6M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MDMF102L1G6M Panasonic 1KW AC Servo Motor

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 1KW AC servo motor , Panasonic servo motor with driver , 1KW AC servo motor driver

MDMF102L1G6M Panasonic 1KW AC Servo Motor

Product Overview

Part Number: MDMF102L1G6M

Product Type: Servo Motor

Family: MINAS A6

Series: MDMF Series

Type: Middle inertia, Connector type

Key Features

Power range: 50 W to 22 kW
Input power supply for Driver: DC 24 V/48 V or AC 100 V/200 V/400 V
23-bit Absolute/Incremental encoder with battery-less option
High frequency response: 3.2 kHz
IP67 protection class

Technical Specifications

Parameter	Specification
Rated Output	1000 W
Rated Torque	4.77 N⋅m
Continuous Stall Torque	5.25 N⋅m
Max. Peak Torque	14.3 N⋅m
Rated Rotational Speed	2000 r/min
Max. Rotational Speed	3000 r/min
Rated Current	5.2 A rms
Max. Current	22 A 0-p
Rotor Inertia	6.18 × 10⁻⁴ kg⋅m²
Flange Size	130 mm sq.
Mass	4.6 kg
Holding Brake	Without
Oil Seal	With
Shaft Type	Key-way

Permissible Load Specifications

Load Type	Value (N)
Radial Load (P-direction) During Assembly	980
Thrust Load (A-direction) During Assembly	588
Thrust Load (B-direction) During Assembly	686
Radial Load (P-direction) During Operation	490
Thrust Load (A,B-direction) During Operation	196

Encoder Specifications

Type: 23-bit Absolute/Incremental system

Resolution: 8,388,608

Connector: Large size JL10

Important Notice: When using the rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.

Compatible Drivers

Part Number	Series	Type	Interface	Frame	Supply Voltage
MDDLN45NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	D-Frame	Single/3-phase 200 V

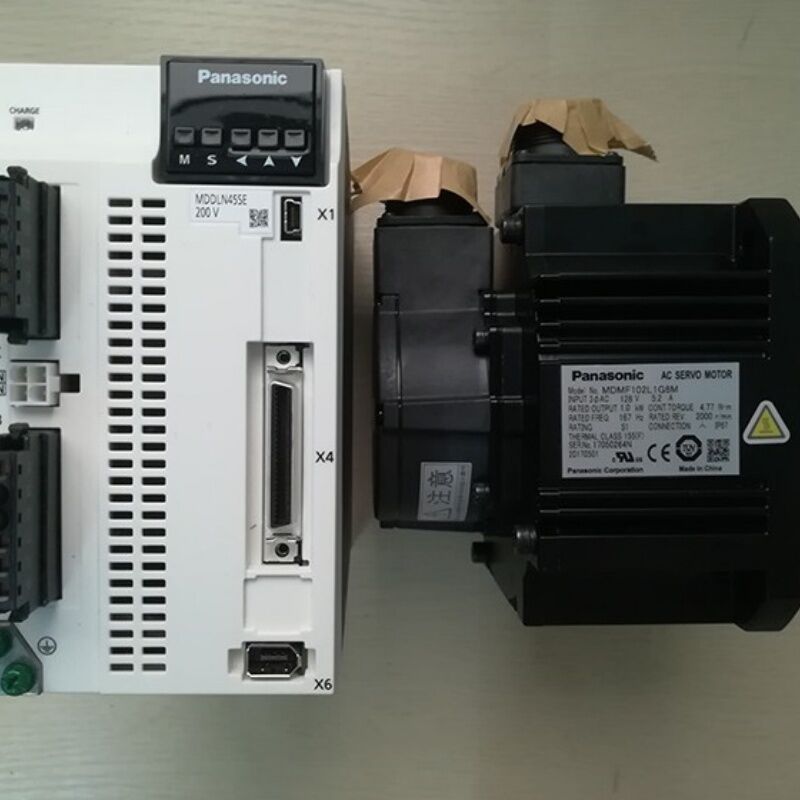

MDDLN45SE	A6SE series	Position control type	Pulse train only	D-Frame	Single/3-phase 200 V
MDDLN45SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485/RS232)	D-Frame	Single/3-phase 200 V
MDDLT45NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLT45SF	A6SF series	Multifunction type	Analog/Pulse, Modbus (RS485/RS232)	D-Frame	Single/3-phase 200 V

Regional Restriction: Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.
